RTI90-320/500 T2 HD UK

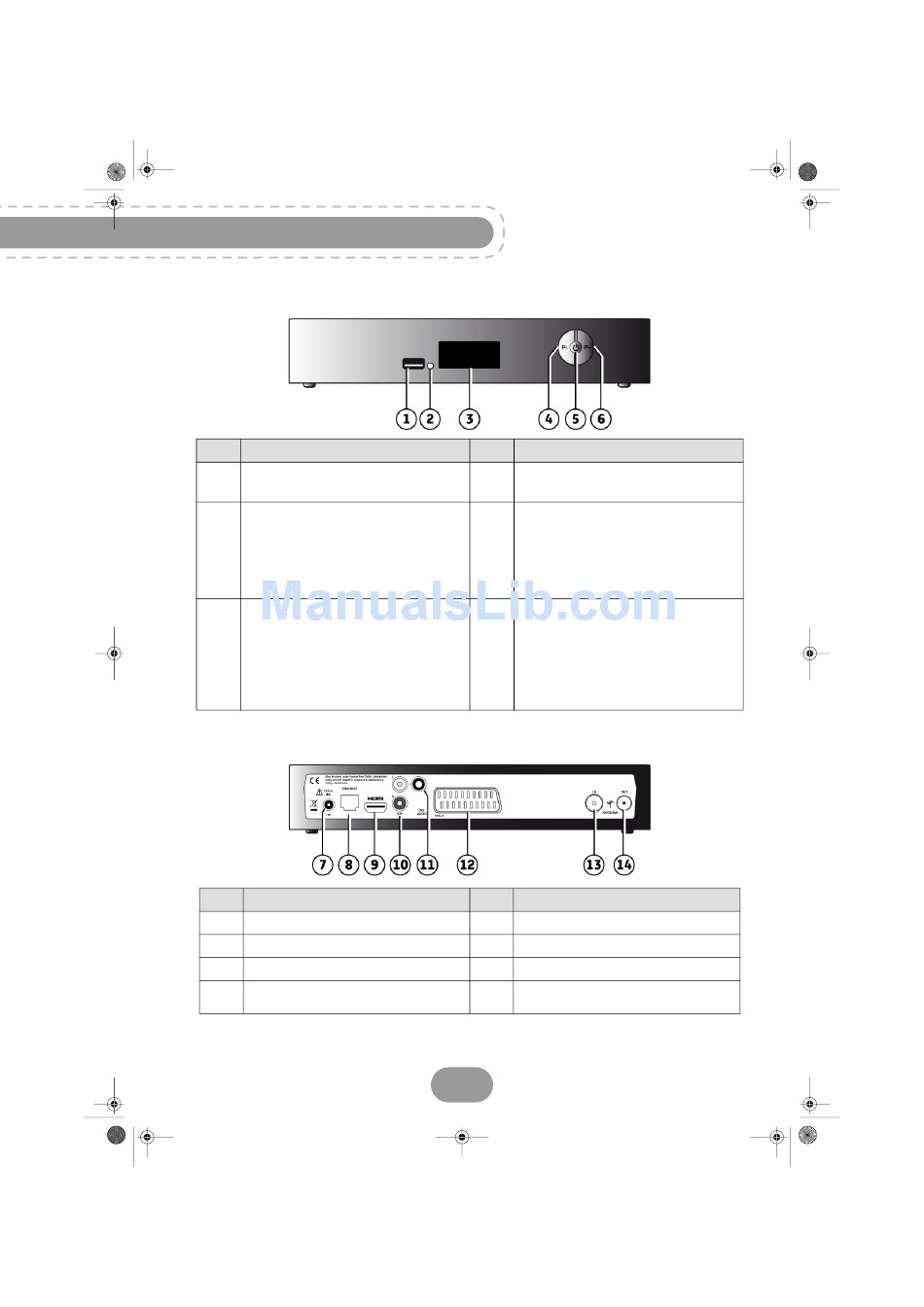

Front panel of the recorder

Item Description
USB port
1
Status indicator
2
Digital display
3
• Shows the current time when the
recorder is in standby.
• Shows the programme number when
the recorder is on.
• Shows hard disk activity (recording in
progress, programme playback, ...)

Rear panel of the recorder

Item Description
7 Power supply unit connector
8 Ethernet port
9 HDMI Digital video audio connector
Analogue audio connectors (to hi-fi
10
unit)
Item Description
P-
4
Change channel (Down)
Standby button
5
• Put the recorder in standby
mode/Wake up the recorder from
standby mode (press and let go)
• Restart the recorder (press and hold
for 5 sec.)
P+
6
Change channel (Up)
Item Description
11 Digital audio connector (S/PDIF)
12 SCART connector (to TV)
13 Antenna input
14 Antenna output
6
