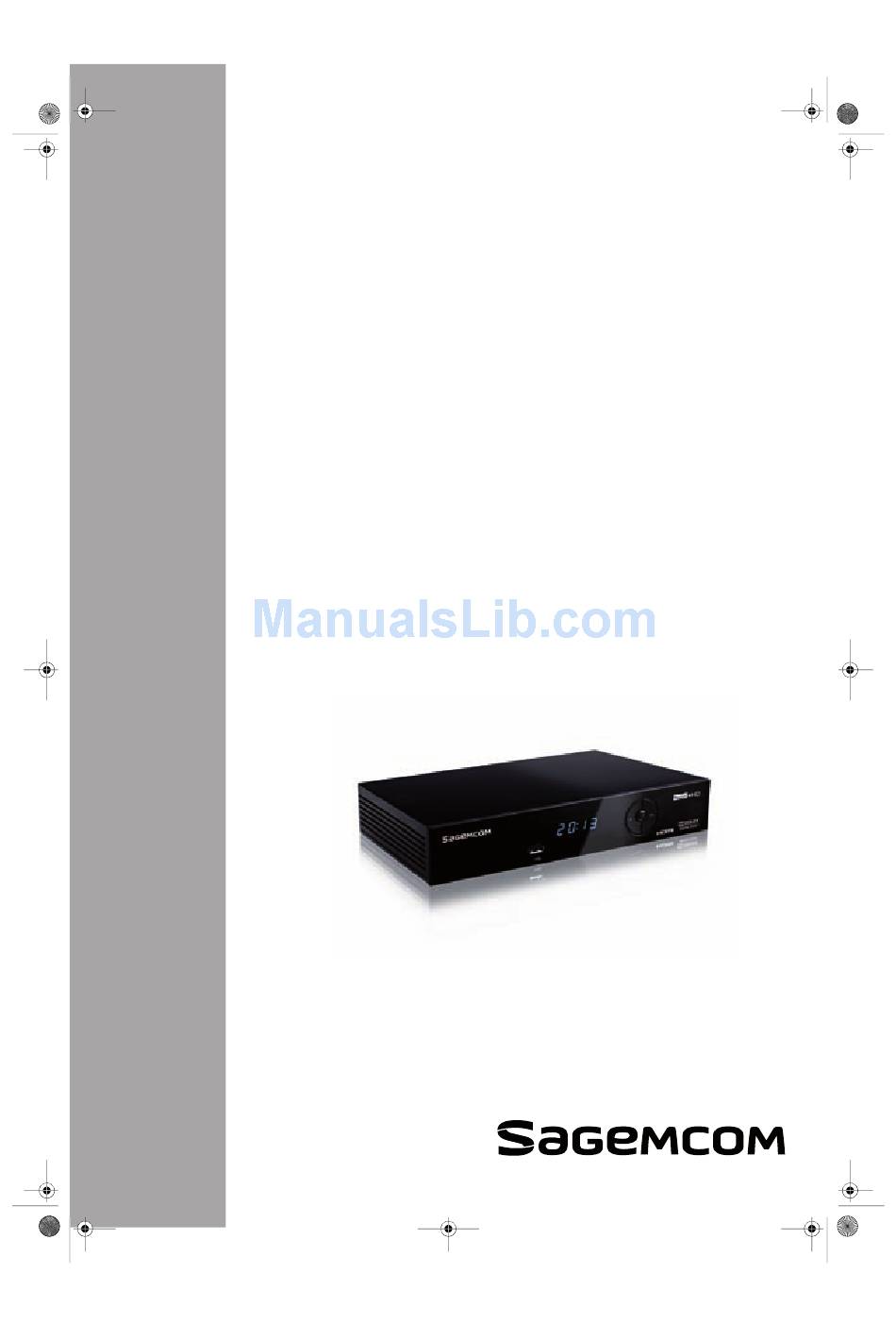

Page 1: User Manual
Draft 1.2 - 11/3/10 LU 253311796A RTI90-320 T2 HD UK.book Page 1 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK Terrestrial High Definition Digital Television Recorder User Manual... -
Page 2: High Definition Digital Television Recorder
The CE marking also certifies that the product complies with the following harmonised standards: EN60065, EN55013, EN55020, EN61000-3-2, EN61000-3-3. The CE declaration of conformity can be viewed in the support section of the Sagemcom site www.sagemcom.com, or it can be obtained from the following address: Sagemcom - Customer relations department 250 route de l’Empereur... -
Page 3: Table Of Contents
LU 253311796A RTI90-320 T2 HD UK.book Page 3 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK Contents 1. Safety recommendations..... 5 Connection to a hi-fi unit ........15 5. First installation......16 Where to put your recorder? ......5 Warnings and safety instructions ....... - Page 4 LU 253311796A RTI90-320 T2 HD UK.book Page 4 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder Managing the Recording list......28 Selecting recorded programmes ......28 Sorting your recordings .........28 Creating folders .............29 Erasing recordings ..........29 Moving recordings ..........29 Renaming recordings ..........29...
-
Page 5: Safety Recommendations
LU 253311796A RTI90-320 T2 HD UK.book Page 5 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK 1. Safety recommendations Use of the recorder is subject to safety measures designed to protect users and their environment. Where to put your recorder? In order to guarantee the correct operation of your recorder, you must: •... -
Page 6: Batteries
LU 253311796A RTI90-320 T2 HD UK.book Page 6 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder Batteries Batteries are easily swallowed by young children. Do not allow young children to play with the remote control. To avoid damaging the remote control, only use identical batteries or batteries of an equivalent type. The batteries provided are not rechargeable. -
Page 7: Environment
LU 253311796A RTI90-320 T2 HD UK.book Page 7 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK 2. Environment Preservation of the environment is an essential concern of the manufacturer. The desire of the manufacturer is to operate systems observing the environment and consequently it has decided to integrate environmental performances in the life cycle of its products, from manufacturing to commissioning, use and elimination. -
Page 8: Directive On The Restriction Of Use Of Certain Hazardous Substances In Electronic Equipment (Rohs)
LU 253311796A RTI90-320 T2 HD UK.book Page 8 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder Directive on the Restriction of use of certain hazardous substances in electronic equipment (ROHS) Your recorder along with the batteries supplied comply with the directive relating to the RoHS –... -
Page 9: Product Overview
LU 253311796A RTI90-320 T2 HD UK.book Page 9 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK 3. Product Overview Your High Definition Digital Television Recorder allows you to watch and record FREEWIEW channels. Package contents Your new equipment includes:... -
Page 10: Front Panel Of The Recorder
LU 253311796A RTI90-320 T2 HD UK.book Page 10 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder Front panel of the Recorder Item Description Item Description USB port (for future use) • Change channel (Down) Status indicator Standby button •... -
Page 11: Remote Control
LU 253311796A RTI90-320 T2 HD UK.book Page 11 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK Remote control Key(s) Description Put the recorder in standby mode/Wake up the recorder from standby mode. Access channels and various on-screen options... -
Page 12: Connections
LU 253311796A RTI90-320 T2 HD UK.book Page 12 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder 4. Connections Before installing your recorder: • Please check that the delivery is complete (see Package contents, page 9). • Please ensure that the appliances to be connected together (recorder, TV set, VCR…) are unplugged before making any connections. -
Page 13: Connection To The Antenna
LU 253311796A RTI90-320 T2 HD UK.book Page 13 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK Connection to the antenna 1. Plug the antenna cable (not supplied) into the ANTENNA IN input connector on your recorder. 2. You can connect the RF output connector of your recorder to the antenna input of the television set or VCR/DVD recorder (cable not supplied). -
Page 14: Connection To A Standard-Definition Television Set
LU 253311796A RTI90-320 T2 HD UK.book Page 14 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder Connection to a Standard-Definition television set 1. You must connect the television set to your recorder using a SCART connector (not supplied). -
Page 15: Connection To A Home Theatre System
LU 253311796A RTI90-320 T2 HD UK.book Page 15 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK Connection to a home theatre system Some programmes are broadcast with a high quality multichannel digital sound. The connection of your recorder to a home theatre system will give you a cinematic surround sound experience when watching these programmes. -
Page 16: First Installation
LU 253311796A RTI90-320 T2 HD UK.book Page 16 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder 5. First installation Once the recorder is physically connected, you need to go through the setup procedure to get your FREEVIEW channels. -
Page 17: Parental Code
LU 253311796A RTI90-320 T2 HD UK.book Page 17 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK Parental code 7. Enter a parental four-digit code using the remote control (0000 is not accepted). 8. Enter the same code to confirm it. -
Page 18: Everyday Use
LU 253311796A RTI90-320 T2 HD UK.book Page 18 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder 6. Everyday use Selecting a TV channel Using the keys PROG+ and PROG-, or keys 0-9 Press PROG or PROG on your remote control to change channel or enter its number on the numeric keypad to switch to the channel you want. -
Page 19: Detailed Programme Information
LU 253311796A RTI90-320 T2 HD UK.book Page 19 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK Detailed programme information If you want more information on the current and following programme, press twice while watching a programme to display the extended information banner. -
Page 20: Changing The Favourites List
LU 253311796A RTI90-320 T2 HD UK.book Page 20 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder Changing the favourites list You can create and manage favourite channels lists in the FAVOURITE LISTS menu (see page 34). To switch from one channel list (main channel list included) to an existing favourite list, press twice to display the detailed information banner. -
Page 21: Teletext And Interactive Services
LU 253311796A RTI90-320 T2 HD UK.book Page 21 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK Teletext and interactive services Whenever Teletext or interactive services are available (news, local weather information, etc.), an invitation to press the red key appears on screen. -
Page 22: Electronic Programme Guide
LU 253311796A RTI90-320 T2 HD UK.book Page 22 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder Electronic programme guide The electronic programme guide displays programme information for all available channels (depending on the information provided by channel broadcasters). You can also record programmes directly from the electronic programme guide (see Recording programmes from the Electronic programme guide, page 26). -
Page 23: Live Mode/Deferred Mode
LU 253311796A RTI90-320 T2 HD UK.book Page 23 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK Live mode/Deferred mode The recorder automatically saves the previous minutes of the channel that is watched (last 60 to 120 minutes depending on the signal characteristics). -
Page 24: Video Recordings
LU 253311796A RTI90-320 T2 HD UK.book Page 24 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder 7. Video Recordings The recording capacity of your recorder depends on the selected programme. On average, one hour of recording requires from 1 GB (SD programme) to 2.5 GB (HD programme) of hard disk space. -
Page 25: Recording Programmes From The Menu
LU 253311796A RTI90-320 T2 HD UK.book Page 25 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK Recording programmes from the menu Press the key to access the main menu. Once you are in the main menu, select RECORDING TIMERS. -
Page 26: Recording Programmes From The Electronic Programme Guide
LU 253311796A RTI90-320 T2 HD UK.book Page 26 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder Recording programmes from the Electronic programme guide The advantage of recording from the electronic programme guide is that you can record specific programmes instead of choosing channel time slots. -
Page 27: Recording List
LU 253311796A RTI90-320 T2 HD UK.book Page 27 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK Recording List Press the key to access the recording list. You can also access it by pressing and selecting RECORDING LIST. You will be able to create folders to organise your recordings, and control the disk space available. -
Page 28: Managing The Recording List
LU 253311796A RTI90-320 T2 HD UK.book Page 28 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder Managing the Recording list The coloured keys let you manage the recording list and offer you the following actions: • red : select an operation •... -
Page 29: Creating Folders
LU 253311796A RTI90-320 T2 HD UK.book Page 29 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK Creating folders You can create folders to organise your recordings. • Press the red key. • Select the action "New folder" and press •... -
Page 30: Merging Recordings
LU 253311796A RTI90-320 T2 HD UK.book Page 30 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder • Use to delete the existing name, then enter the desired name using the numeric keypad on the remote control. Note Use alphanumeric characters (letters and numbers) when naming folders. -
Page 31: Installation Menus
LU 253311796A RTI90-320 T2 HD UK.book Page 31 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK 8. Installation menus To move around the screens and change various settings, just use the keys to highlight your selections, press to confirm, and to leave a screen. -
Page 32: Setting Your User Preferences
LU 253311796A RTI90-320 T2 HD UK.book Page 32 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder Setting your User Preferences In USER SETTINGS, select USER PREFERENCES. Display preferences • Banner time-out: You can set how long you want the zapping and information banners to stay onscreen. -
Page 33: Recorder Locking And Parental Control Options
LU 253311796A RTI90-320 T2 HD UK.book Page 33 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK Recorder Locking and Parental control options In USER SETTINGS, select LOCKING. Recorder locking You can lock access to the recorder. If you activate the... -
Page 34: Creating And Managing Favourite Lists
LU 253311796A RTI90-320 T2 HD UK.book Page 34 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder Creating and Managing favourite lists To access the favourites settings screen, press Once you are in the main menu, select FAVOURITE LISTS. -
Page 35: Recorder Settings
LU 253311796A RTI90-320 T2 HD UK.book Page 35 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK Recorder settings To access the recorder settings screen, press . Once in the main menu, select RECEIVER SETTINGS. If the recorder lock is activated, enter your parental code (to change your parental code, see Changing your Parental code, page 33). -
Page 36: Picture Settings
LU 253311796A RTI90-320 T2 HD UK.book Page 36 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder Picture settings In RECEIVER SETTINGS, select VIDEO SETTINGS. Check the manuals of your video equipment to know what settings you need. -
Page 37: Resetting The Recorder
LU 253311796A RTI90-320 T2 HD UK.book Page 37 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK Resetting the recorder Note If you reset the default settings, you lose the channels and settings you made. This operation does not erase the recordings saved in the recording list. -
Page 38: Information Menu
LU 253311796A RTI90-320 T2 HD UK.book Page 38 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder Information Menu The information contained in this menu may be requested if you contact your supplier or another technical service. You will find here important information about the recorder, the hard disk drive and the embedded software. -
Page 39: Troubleshooting
LU 253311796A RTI90-320 T2 HD UK.book Page 39 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK 9. Troubleshooting Using the recorder Symptom Action • Point the remote control at the recorder. The remote control is not working. • Check the battery life and check the batteries are inserted properly. -
Page 40: Updating The Software
LU 253311796A RTI90-320 T2 HD UK.book Page 40 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder Updating the software The recorder automatically downloads ’over the air’ new software and services when they become available. If a problem is encountered during the download, the recorder displays on its front panel an error code. -
Page 41: Customer Support
RTI90-320 T2 HD UK 10. Customer Support At Sagemcom we believe that a high quality product should come with the highest quality customer service. In the design of this product we have taken great care to ensure the maximum quality possible and are sure that you will be delighted with your purchase. -
Page 42: Guarantee Terms
LU 253311796A RTI90-320 T2 HD UK.book Page 42 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder 11. Guarantee Terms ATTENTION In order to apply the guarantee, you should contact your retailer or Sagemcom helpdesk at 08450 900 316. - Page 43 LU 253311796A RTI90-320 T2 HD UK.book Page 43 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK • malfunctions not resulting from the Equipment or from software installed in user workstations for the purpose of use of the equipment, •...
-
Page 44: Specifications
LU 253311796A RTI90-320 T2 HD UK.book Page 44 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder 12. Specifications DUAL DVB-T/T2 FRONT END VIDEO DECODING RF INPUT MPEG2 2 RF tuners (w. internal splitter) Standard MPEG-2 MP@HL for 50 Hz... - Page 45 LU 253311796A RTI90-320 T2 HD UK.book Page 45 Jeudi, 8. avril 2010 8:06 08 RTI90-320 T2 HD UK SD INPUT/OUTPUT FRONT PANEL SCART (TV setup configuration) 4 digits 7 segments blue color display IR sensor: 38 KHz RGB out, PAL in/out, volume control Audio R/L, Fast...
- Page 46 LU 253311796A RTI90-320 T2 HD UK.book Page 46 Jeudi, 8. avril 2010 8:06 08 High Definition Digital Television Recorder Memo...
- Page 47 LU 253311796A RTI90-320 T2 HD UK.book Page 47 Jeudi, 8. avril 2010 8:06 08...
- Page 48 LU 253311796A RTI90-320 T2 HD UK.book Page 48 Jeudi, 8. avril 2010 8:06 08 Sagemcom Broadband SAS Headquarters: 250, route de l’Empereur 92848 Rueil-Malmaison Cedex - FRANCE Tel : +33 (0)1 57 61 10 00 - Fax : +33 (0)1 57 61 10 01...
