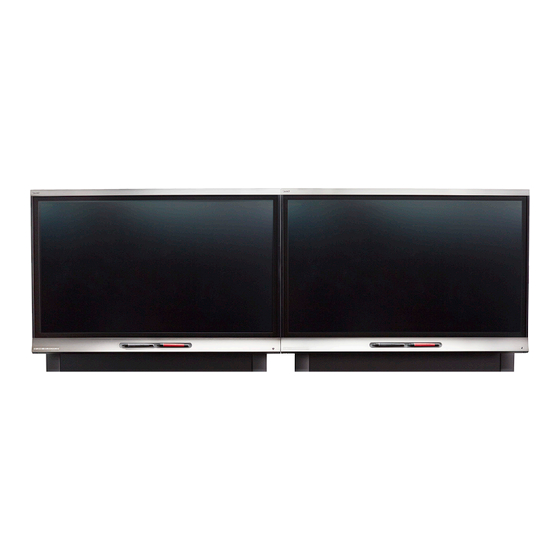

SMART SBID 8000 series User Manual

SMART Board
Waking up the interactive flat panel
The interactive flat panel has a presence detection
sensor that can detect people up to 16´ (5m) away when
the interactive flat panel is in Standby mode. When the
sensor detects people, the interactive flat panel turns on
and displays a welcome screen, and touching the screen
activates the panel. The welcome screen disappears after
six seconds.
If the sensor doesn't detect people in the room for a
while, the interactive flat panel returns to Standby mode.
If the panel is off, press the Standby button
control panel to turn it on.

Control Panel

USB Port
Standby
Input
interactive flat panel
®
on the front
Volume
Mute
Adjustments
Connecting 4K/UHD devices
The SMART Board Interactive Flat Panel has one HDMI
and one USB-B port on the panel that support 4K/UHD
resolution. You can add a second HDMI and USB-B port by
installing the supplied XTM module. (The XTM module input
supports only 1080p resolution.)
To connect a room computer at 4K/UHD resolution
1. Using the USB and HDMI cables, connect the room
computer to the display connectors.
2. Select Input on the front panel and
navigate to HDMI.
Note: The panel's side USB-A port is not enabled in the
room computer configuration described above.
To connect a guest laptop at 1080p resolution
1. Connect an HDMI cable to the interactive flat panel and
the guest laptop.
2. Connect a USB cable to the interactive flat panel and
the guest laptop.
3. Select Input on the front panel and navigate to
OPS/HDMI.
