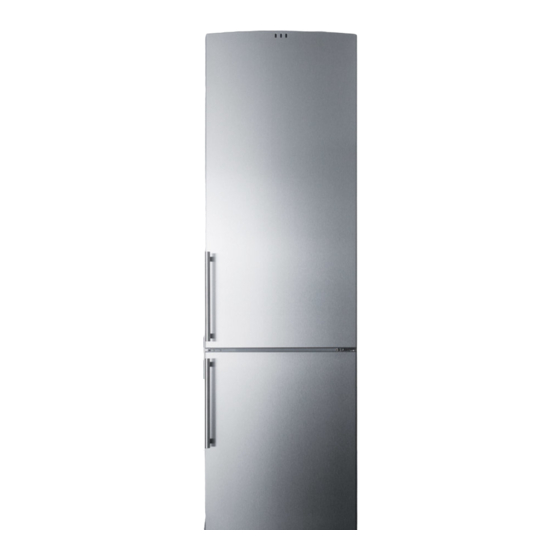

- Page 1 Instructions for use Upright refrigerator - freezer Model FFBF181SS...
-
Page 2: Table Of Contents
Thank you for your confi dence in buying our appliance and congratulations on the excellent choice. We hope it will successfully serve its purpose for many years. The appliance is intended solely for household use. Upright refrigerator - freezer (hereinafter: the appliance) composed of two parts: the upper compartment is a refrigerator and the lower compartment is a freezer. -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS • Before connecting the appliance, read these instructions carefully. • The appliance is manufactured in compliance with all relevant safety standards; however, it is recommended that persons with impaired physical, emotional, or mental abilities, or persons with inadequate experience and knowledge, do not use the appliance without due supervision. The same recommendation applies to minors using the appliance. -
Page 4: Before Your Fi Rst Use
Before your fi rst use • Before connecting the appliance, read these instructions carefully. They describe the appliance and provide instructions for its safe and correct use. • Remove the wrapping protecting the appliance during transport. • Door corners are fi tted with protective spacers. Remove the spacers and replace them with the attached pegs. -
Page 5: Description Of The Appliance
Description of the appliance A Refrigerator Control panel Interior light Shelf (adjustable height) Foldable egg tray (closed 6, open 12 eggs) Bottle rack Crisper Door trays (options: deep, shallow, cover or no cover) Bottle tray with holder B Freezer 10 Storage drawer 11 Freezer drawer 12 Leg 13 Wheel... -
Page 6: Installation And Connection
Installation and connection Selecting the location • Place the appliance in a dry and well-aired room. Ambient temperature should never be lower than 41°F. Positioning the Positioning the appliance requires two persons in order to avoid appliance injuries or damage to the appliance. •... - Page 7 Min 25.6” Min 34.7” Connecting to power • Use the power cord to connect the appliance to the electrical supply power. The wall outlet must be fi tted with a ground terminal (safety socket). The use of an extension cord is not recommended. Nominal voltage and frequency are indicated on the relevant label or rating plate on the appliance.
-
Page 8: Reverse Door Swing
Reverse door swing Required tools: socket wrench no. 8, screwdriver, torx 25. Caution! After unscrewing or before fi xing hinges, hold the door to prevent it from falling and being damaged. 1. Remove upper hinge cover (save it for later use). Also remove the cover on the opposite side of the upper hinge cover (you will insert the attached cover on the other side during the assembly). -
Page 9: Control Panel - Appliance With Electronic Regulation
Control panel - appliance with electronic regulation CONTROL UNIT No- frost system appliance A Freezer ON/OFF button B Green signal lamp: indicates freezer operation C Refrigerator ON/OFF button D Green signal lamp: indicates refrigerator operation E Intensive freezing ON/OFF button F Orange signal lamp: intensive freezing in operation G Intensive cooling ON/OFF button H Orange signal lamp: intensive cooling in operation... - Page 10 Switching the appliance Before the fi rst use of the appliance fi rst plug the power cable ON/OFF into the wall socket. Display indicates dashes for both the refrigerator and the freezer. - Switch the appliance ON by pressing the button A for 3 seconds.
- Page 11 • Sound alarm is switched off by pressing button I. Red signal lamp and temperature fl ashing are stopped automatically when the freezer/refrigerator has cooled enough that there is no more risk of food becoming unsafe to eat. • If the freezer temperature fails to arrive at the adequate level 24 hours after the alarm was switched off it is activated again, and again switched off automatically when the freezer has cooled enough for safe storage of food.
-
Page 12: Recommended Distribution Of Food
Recommended distribution of food Recommended Refrigerator compartments: distribution of food - top section: canned food, bread, wine, cake, … - middle section: dairy products, cheese, ready-made food, desserts, juices, beer, … - bottom section: meat, meat products, delicatessen, … - crisper: fresh fruit, vegetables, salads, root vegetables, potatoes, onions, garlic, tomatoes, sauerkraut, turnips, …... -
Page 13: Storing Fresh Food
Storing fresh food Important precautions Proper use of the appliance, adequately packed food, for storing fresh food correct temperature and hygienic precautions have substantial impact on the quality of stored food. Always respect the use-by date, printed on the packaging. Food to be stored in the refrigerator should be properly packed so as to prevent absorbing of moisture and building up of odors. -
Page 14: Freezing And Storage Of Frozen Food
• The freezer door liner is also fi tted with various shelves or holders used for storing frequently used frozen food for quick access (ice cream, already opened packages of vegetables, etc.). • Fan (located under the ceiling or hidden behind rear panel of the refrigerator, or concealed within the freezing unit) improves even distribution of temperature and reduces condensation on storage racks. -
Page 15: Important Precautions
Important precautions Freeze only such foods that are suitable for freezing for freezing of fresh food and can sustain low temperatures. Food should be of adequate quality and freshness. Select adequate packaging for each kind of food and pack it correctly. The packaging should be airtight and well sealed without leaking since this could cause substantial vitamin loss and dehydration. -
Page 16: Defrosting The Appliance
Defrosting frozen food Partially thawed or defrosted foods should be used as soon as possible. Cold air preserves the food but it does not destroy microorganisms that rapidly activate after defrosting and make foods perishable. Partial defrosting reduces the nutritional value of food, especially fruits, vegetables and ready-made meals. -
Page 17: Cleaning
Cleaning Prior to any cleaning, disconnect the appliance (turn the thermostat button to the position and pull the power cord from the electrical outlet). Make sure to remove traces of any cleaning agents you may have been using. • To clean any surface, use a soft cloth. •... -
Page 18: Troubleshooting Guide
Troubleshooting guide Problem: Cause/Remedy The appliance does not operate • Check if there is power in the socket and if the appliance is after connection to the power line: switched on. Cooling system operates • Ambient temperature too high. continuously without intermittent •... -
Page 19: Noise Level
Problem: Cause/Remedy Bulb replacement: • Before replacing the light bulb, disconnect the appliance from the power supply. Using a screwdriver, remove the cover, replace the bulb with a new one (E 14, max. same voltage as the factory bulb) and fi t back the cover. •... -
Page 20: Limited Warranty
Limited Warranty ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory- specifi...
