Venting Stove Outlet Dimensions - St. Croix Prescott EXP Installation Manual

Type of Installation:
A.
B.
C.
D.
E.
F.
Note: Four (4) inch vent may be used in all installations. If in doubt, use 4" vent.
A – Width of stove
B – Height of stove
C – Center of intake tube from floor
Venting size Guidelines
Less than 10' horizontal:
10' to 12' horizontal:
Over 12' horizontal:
(A horizontal installation over 12' is NOT RECOMMENDED)
Less than 15' vertical:
Over 15' vertical:
Above 4000' elevation:

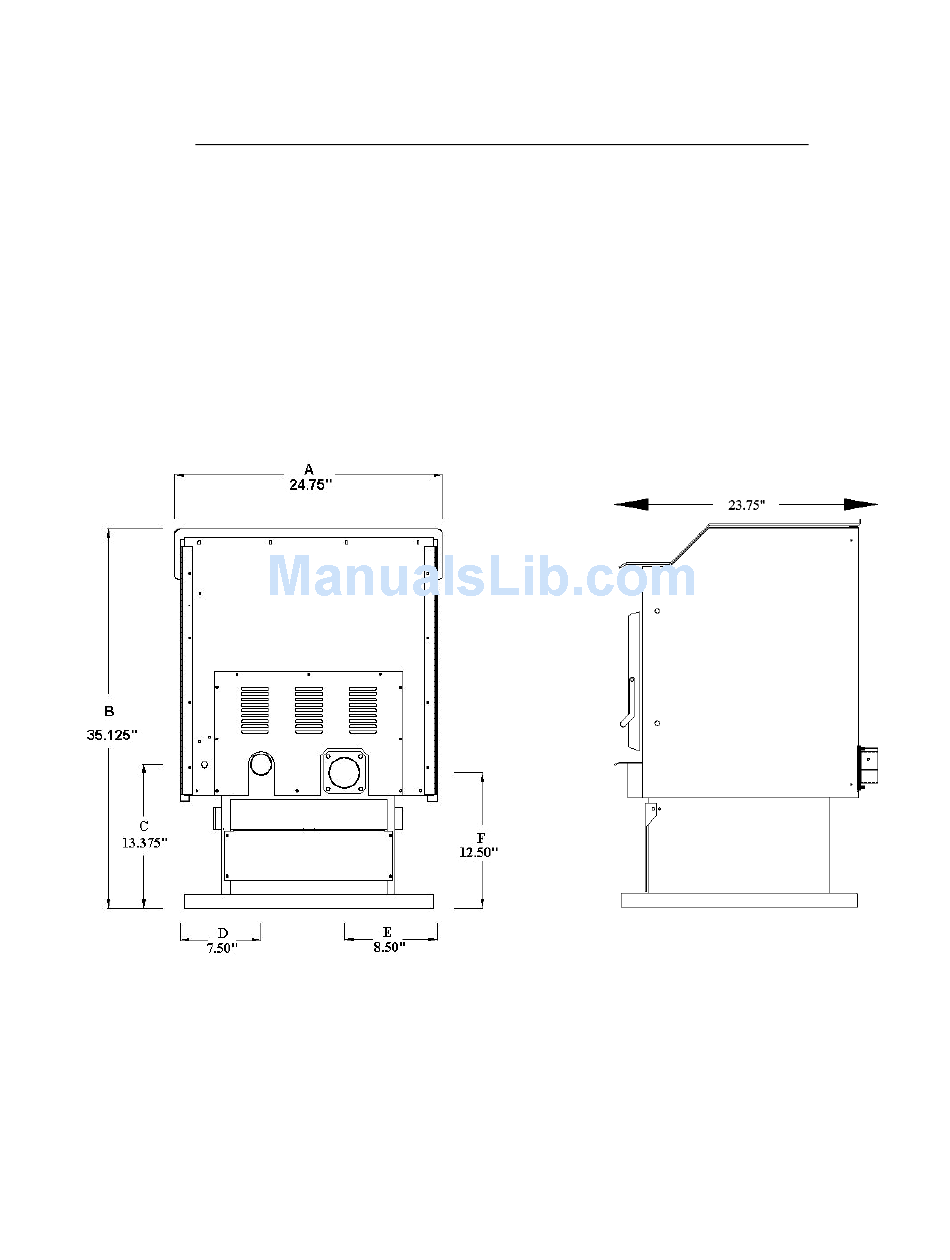

Figure 1. REAR VIEW
Prescott Series Installation Manual
Size:______________
3"
3" or 4"
4"
3"
4"
3" or 4"
D – Side of stove to center of intake tube
E – Side of stove to center of exhaust
F – Center of exhaust from floor
Page 7
Acceptable
Acceptable
Required
Acceptable
Required
Acceptable
