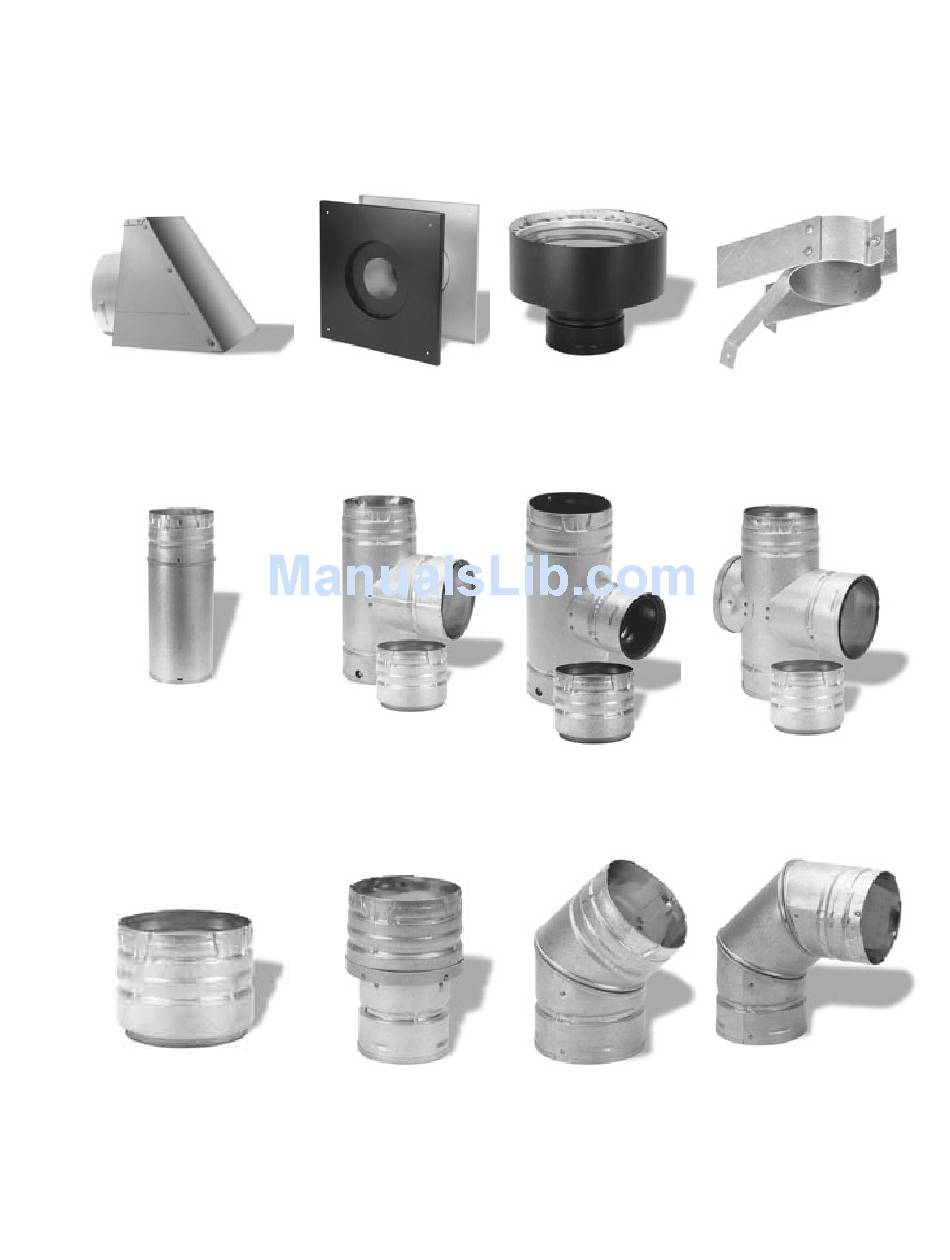

TYPICAL PL VENT COMPONENTS
RAIN CAP
VERTICAL OR
WALL THIMBLE
CHIMNEY
SUPPORT BRACKET
HORIZONTAL
ADAPTER
ADJUSTABLE LENGTH
SINGLE TEE
SINGLE REDUCTION
DOUBLE TEE
PIPE
w/TEE CAP
TEE w/TEE CAP
w/TEE CAP
0
0
PIPE ADAPTER
INCREASER
45
ELBOW
90
ELBOW
Prescott Series Installation Manual
Page 5
