Summary of Contents for APART CMAR

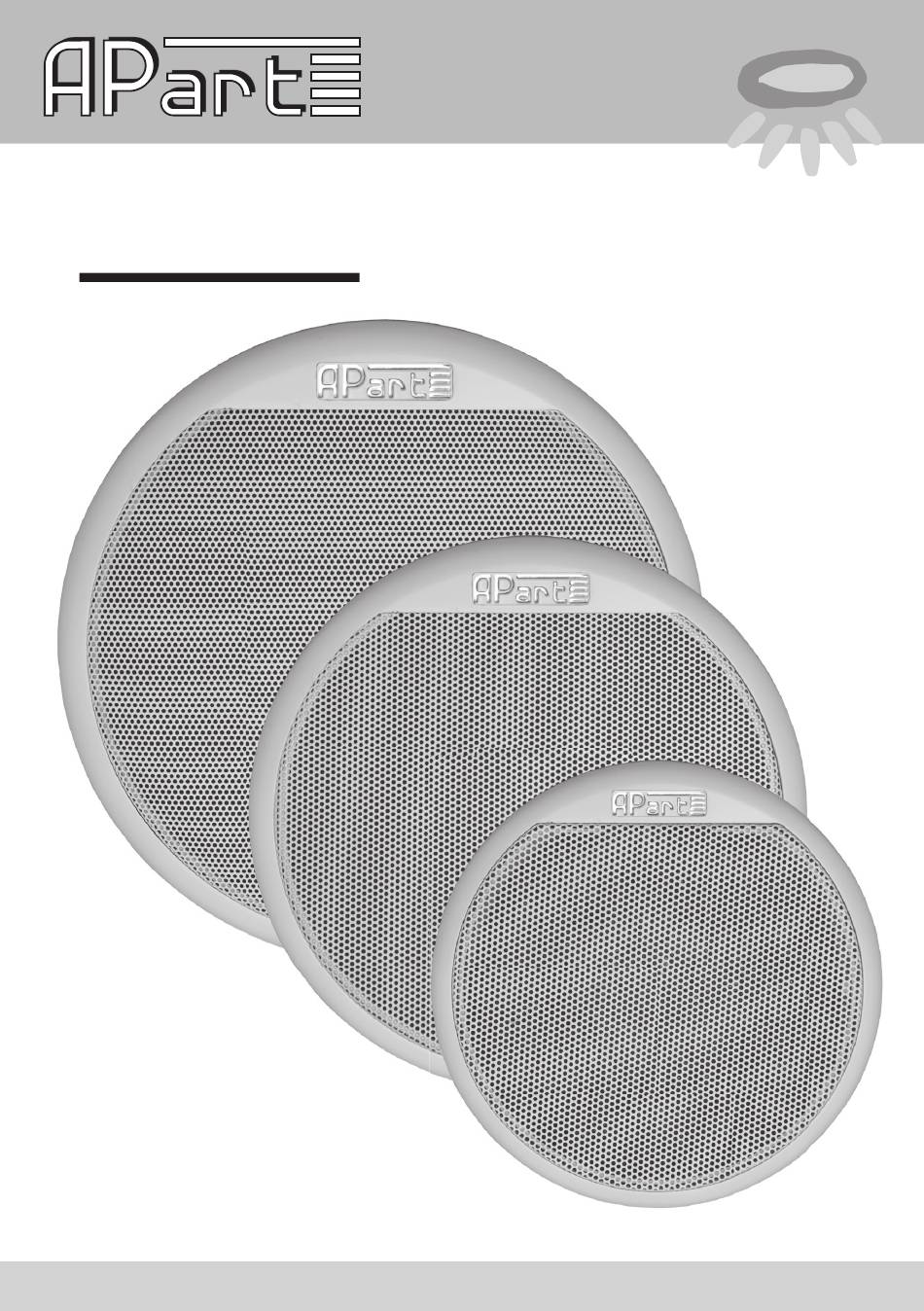

- Page 1 MANUAL CMAR...
-
Page 2: Safety Precaution
Safety precaution • Keep this manual for future reference. • When making the hole in your mounting panel to mount the APart CMAR speaker, make sure there is sufficient clearance behind the panel (no obstructions like A/C channels, power lines etc,.) •... -
Page 3: Features And Benefits
Features and benefits • Superb sound and efficiency, even in humid environments. • 8Ω voice coil allows to connect up to 2 APart CMAR speakers to a 4Ω stable amplifier channel. • Stylish grill and mesh that will add a great visual detail to your application without being obvious and drawing too much attention. - Page 4 Important: While the front side of the APart CMAR speaker line is waterproof, care should be taken to keep the backside free from humidity. We have added a rubber sealing gasket in order to seal the backside of the speaker to your mounting panel.
-
Page 5: Connecting The Speaker
Connecting the speaker Use the correct polarity when daisy chaining speakers ! When a mistake occurs in your daisy chain, it can severely impact speaker performance as there will be audio-cancellation. The daisy chain options are endless and the setup will depend on the capabilities of your amplifier. -
Page 6: Specifications
Specifications Technical specifications Specification / Type CMAR5-W CMAR6-W CMAR8-W Shape: Round Round Round Rated RMS power: Music power: 100W Impedance 8Ohm 8Ohm 8Ohm Frequency response: 100Hz to 20KHz 70Hz to 20KHz 50Hz to 20 KHz SPL 1W/1m in dB 85dB 88dB 88dB Dispersion (at 1kHz, 2kHz,... - Page 7 Dimensions Dimensions in mm Specification / Type CMAR5-W CMAR6-W CMAR8-W...
- Page 8 Polar diagram 1000Hz 2000Hz CMAR5 CMAR6 CMAR8...
- Page 9 4000Hz 8000Hz...
-
Page 10: Warranty Info
Warranty info APart-Audio warrants this product to be free of defects in material and workmanship for a period of one year for parts and for a period of one year for labor from the date of original end-user purchase. This warranty is valid only for the original end- user and cannot be transferred. - Page 11 Notes...
- Page 12 Company names, product names, and names of formats etc. are the trademarks or registered trademarks of their respective owners. © 2011 APart-Audio specifications subject to change without notice. developed by Audioprof nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten Belgium...
