- Page 1 CM6TSMF Instruction manual...
- Page 3 CM6TSMF Instruction manual CM6TSMF Manual...

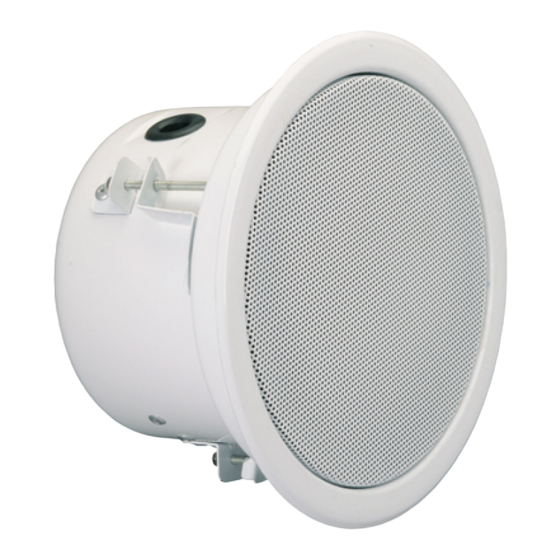

- Page 4 The CM6TSMF is equipped with a high quality 1.5/3/6 watt 100 volt transformer. The speaker can be used in almost any 100 volt application requiring BGM sound levels.
-
Page 5: Safety Precautions
• Keep this manual for future reference • When making the hole in your mounting panel to mount the Apart CM6TSMF speaker, make sure there is sufficient clearance behind the panel (no obstructions like AC power lines etc) • Take care of your speaker wires; they should be free of damage. -
Page 6: Recommended Applications
CEILING SPEAKER Recommended applications • Hallways • Boutiques and shops • Board rooms & Offices • Emergency and evacuation systems • Mounting the loudspeaker The loudspeaker is very easy to install, due to the all metal mounting system. Using the cutout template: Note: when making the hole in your mounting panel, double check if there are no cables or any other obstructions behind the... - Page 7 CM6TSMF Instruction manual...
- Page 8 CEILING SPEAKER Connecting the speaker to a 100 volt speaker line The speaker can be connected to 100 volt speaker lines and has a power of 1.5, 3 or 6 watts. Select the wattage according to the application. Never connect the 1.5, 3 or 6 watt wires simultaneously! Transformer output power taps are coded with a sticker on the 100 volt transformer.
-
Page 9: Technical Specifications
CM6TSMF Instruction manual Technical specifications Speaker type 6.5 inch coated dual paper cone Rated power RMS 6W – 3W – 1.5W @ 100 volt Nominal impedance 1666 ohms/6W/100V - 3333 ohms/3W/100V - 6666 ohms/1.5W/100V Frequency range 90 – 19000 Hz... - Page 10 CEILING SPEAKER...
- Page 11 CM6TSMF Instruction manual...
-
Page 12: Warranty Info
CEILING SPEAKER Warranty info Apart-Audio warrants this product to be free of defects in material and workmanship for a period of two years for parts and for a period of one year for labour from the date of original end-user purchase. - Page 13 CM6TSMF Instruction manual Polar diagrams 1000Hz 2000Hz...
- Page 14 CEILING SPEAKER 4000Hz 8000Hz...
- Page 16 Audioprof nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten - Belgium Company names, product names and trademarks are property of their respective owners. Apart-Audio specifications are subject to change without notice.
