- Page 1 User's Guide R/C SMD Tweezers Multimeter Model RC200...

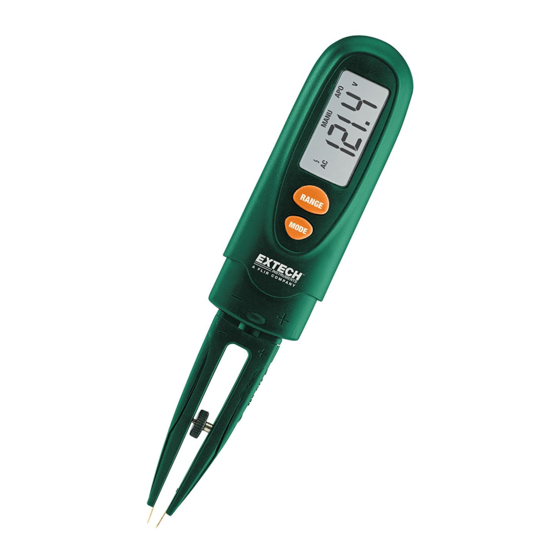

- Page 2 Introduction Congratulations on your purchase of the Extech RC200 RC Tweezers Multimeter This meter, using the tweezers adaptor, measures SMD capacitors, resistors, diodes and continuity test. With the test lead adaptor, it measures AC/DC Voltage. Proper use and care of this meter will provide many years of reliable service.
- Page 3 µ micro (10 ) (amps, cap) milli (10 ) (volts, amps) kilo (10 ) (ohms) Farads (capacitance) mega (10 ) (ohms) Ω Ohms Volts AC voltage DC voltage AUTO Auto Range SCAN SCAN mode APO Auto power off enabled RC200-EU-EN-V1.4-3/11...
-
Page 4: Operating Instructions
8. Press the MODE button for capacitance measurements .The “F” icon will appear on the display. It can take several minutes for the reading to stabilize at the final value for large value capacitors. 9. Press the MODE button again to return to the SCAN mode. RC200-EU-EN-V1.4-3/11... - Page 5 Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle NOTE: If your meter does not work properly, check the batteries to make sure that they are still good and that they are properly inserted. RC200-EU-EN-V1.4-3/11...
- Page 6 EN61010-1 and IEC61010- Edition (2001) to Overvoltage Category III 600V; Pollution Degree 2. Copyright © 2011 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. more infor for...
