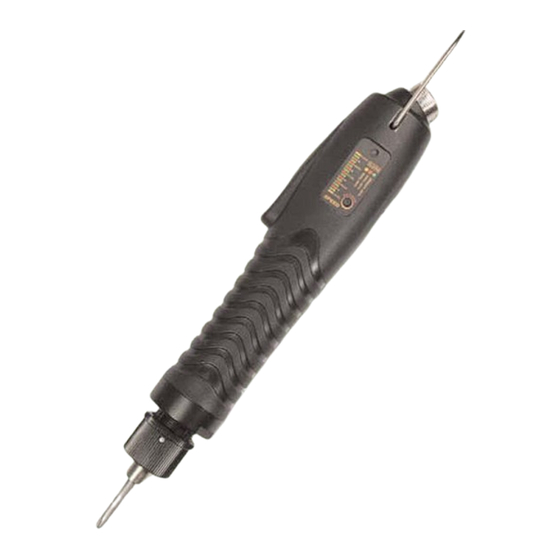

- Page 1 BF-Series (Mini Electric Screwdrivers BF035 & BF045) Operation Instructions Rev 1 (12/15/11) for V3 Models Only Page 1 Corporate Headquarters: 1080 North 11th Street, San Jose, CA 95112 Phone: (408) 292-2214 Fax: (408) 292-2733 www.mountztorque.com...
- Page 2 BF-Series (Mini Electric Screwdrivers BF035 & BF045) Operation Instructions Introduction - Various models that range from 0.17 - 3.9 lbf.in - High performance brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers. - Designed for high production environments. Minimal heat build-up even when tool is operated continuously.
- Page 3 BF-Series (Mini Electric Screwdrivers BF035 & BF045) Operation Instructions General Operation for BF-Series models 1. Attach cord to the BF screwdriver. Make sure notch in plug lines up with the notch on the socket. Tighten knurled ground ring. 2. Plug in transformer and check power indicator. If it is not on, check fuse in the transformer.
- Page 4 BF-Series (Mini Electric Screwdrivers BF035 & BF045) Operation Instructions RPM Settings The BF035 and BF045 models feature adjustable RPM setting on the tool. The RPM are selectable in increments of 50RPMs. Also features precision "Soft-Stop" clutch, which prevents shock to sensitive assemblies like disk drives, plastics, elec- tronics, etc.
- Page 5 BF-Series (Mini Electric Screwdrivers BF035 & BF045) Operation Instructions STC40 Transformer STC40 transformer is power supply designed for operating the BF-Series & NF- Series brushless electric screwdrivers. Only use this transformer when operating any BF-Series & NF-Series models. Features - Over Heat Protection (OHP) and Over Current Protection (OCP) protect driver from damage or malfunction.
- Page 6 BF-Series (Mini Electric Screwdrivers BF035 & BF045) Operation Instructions Accessories The EZ-Glider torque arms are designed to improve production and quality control during the assembly process. The arms securely keep electric or pneumatic drivers in perpendicular alignment to help prevent side loading or cross threading occurring during the assembly process.
- Page 7 BF-Series (Mini Electric Screwdrivers BF035 & BF045) Operation Instructions Torque Charts These charts are meant to be used as guidelines for setting the torque on the BF-Series electric screwdrivers. The drivers have a torque scale on the torque adjustment nut showing reference numbers. These numbers determine the approximate torque setting.
- Page 8 1. The BF-Series screwdrivers are a precision torque control instrument and should be handled with care at all times. 2. Only use the transformers listed in the Mountz catalog or website for appropriate BF-Series driver model (If you have any questions regarding the appropriate transformer set-up, contact Mountz Customer Service Department).
