Mountz Flex Power FLEX-50SX Quick Start Manual

Recommendations for Maintenance:
Please, note it is important to make sure the tool has clean, dry and lubricated air at the recommended pressure supplied to it. (Please consult the
service manual for further instructions)
The pulse tool requires preventive maintenance like oil changes and have the parts inspected periodically. It is recommended to make the first
preventive maintenance at 250,000 pulses-seconds or 6 months, which either one occurs first. The tool's performance should be evaulated. The

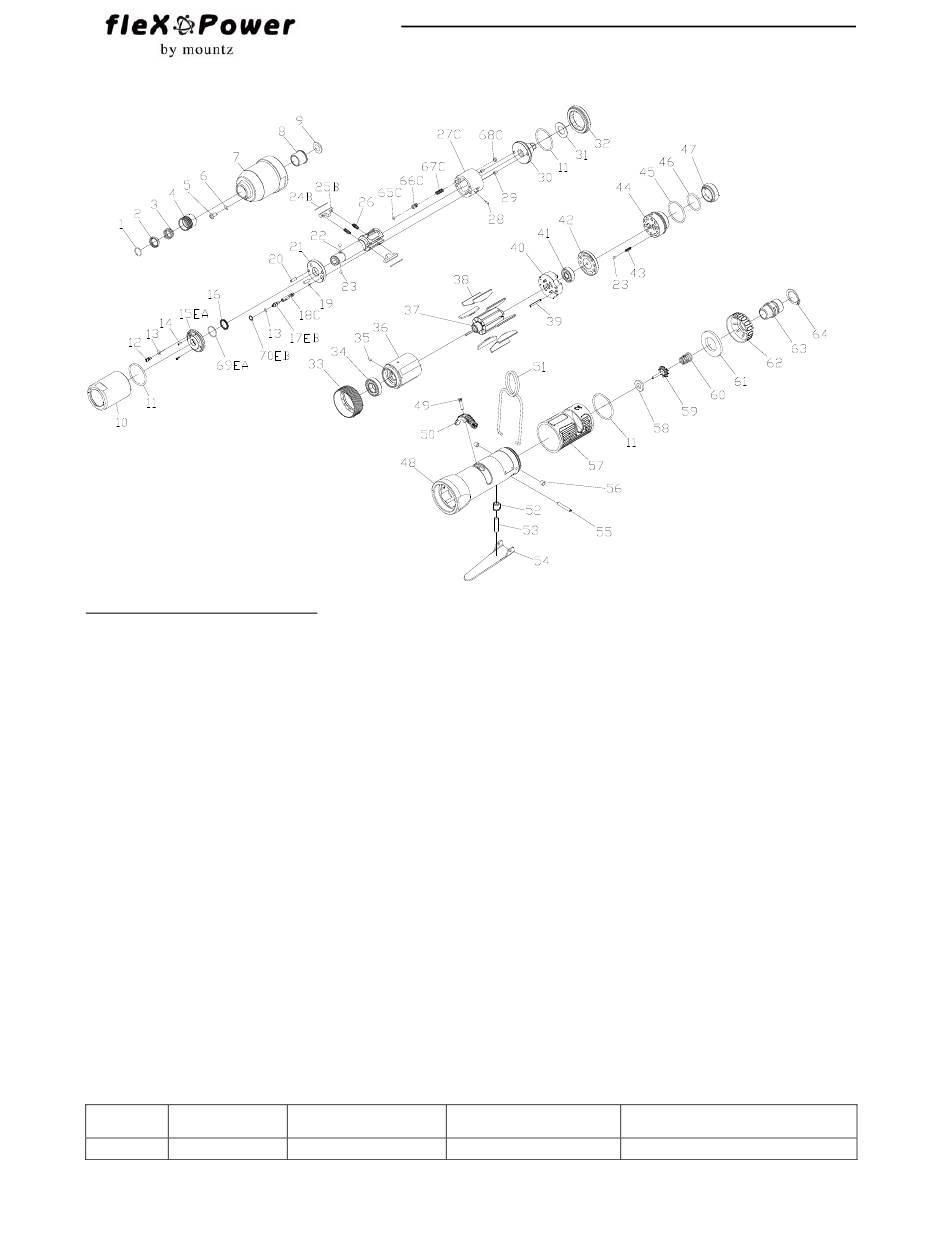

oil needs to be changed. Inspect all the soft parts of the pulse unit (the soft parts are referenced as the "Repair Kit" - see parts list page 2). The
Repair Kit includes all the necessary parts and it is recommend to be performed every six months (unless parts are in good condition). If the tool
fails before the 250,000 pulses-seconds then the pulse unit needs to be rebuilt, with the "Repair Kit" and "Service Kit" (see parts list page 2).
Caution: prevailing torque, which makes that the tool start pulsing early, reduces the life of the Oil & O-rings of the pulse unit. A pulse-second is
not every second the tool is running, only when it's "pulsing" and applying torque. On typical applications the tool should run down freely until
fastener is snug and then the tool starts pulsing until it reaches the preset torque. When operating the tool on the fastener, start counting once the
tool begins pulsing. You can use a watch with a second hand and time it until the tool shuts-off. Use the information to calculate how many
pulse-seconds the tool performs per application each day. Then perform some basic math to calculate the tool's maintenance schedule. Use this
formula.
# Pulsing Seconds ÷ Total of Pulsing Time = No Cycles
NOTE: Please include the rework, reverse, or retightening time is involve on the operation to calculate the accurate pulsing time.
Here is an example:
Pulsing Time = 2 seconds
Pulses- seconds recommended = 250,000
\
Using the information above, you can estimate the maintenance period for the tool by using this formula:
No of Pulsing Time per
Fasteners Fastener
7 2 seconds
Rev:
05C-MZ / Nov12
FLEX-50SX (360133) Non-Shut Off Pulse Tool (1/4" F/Hex)
250,000 pulses-sec ÷ 2 sec = 125,000 cycles
No of Parts Assembled
per Day
300 125,000 /(300*7) = 59
www.mountztorque.com
Calculation Maintenance Period
59 days
1
