Page 1: Operating Instructions

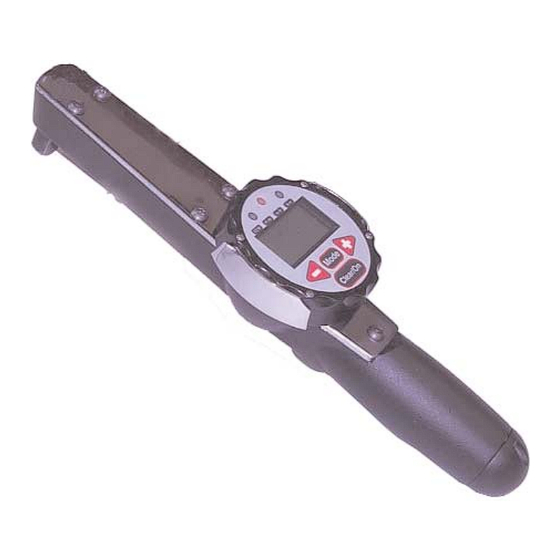

E D T W E D T W Electronic Dial Wrench Operating Instructions Mountz, Inc ISO 9001 (2000) company Corporate Headquarters: 1080 North 11th Street, San Jose, CA 95112 Phone: (408) 292-2214 Fax: (408) 292-2733 www.etorque.com... -
Page 2: Install Batteries
EDTW Operation instructions Page 1 Install Batteries 1. Install high quality 9 volt battery in handle of wrenches 50 ft.lb. and below. Install in case on 100 ft.lb. and above. Remove screw(s) to expose battery. Do not overtighten screws Notes: When batteries are low a “BATT” icon will light. When batteries are critically low the wrench will not turn on. -
Page 3: Changing Units
EDTW Operation instructions Page 2 Then press the Target + key to change units Changing Units: 1. For security it takes two key presses to change the units: 2. Press and hold the power/clear button (when wrench is on). 3. Then press the Target + key to change units. ft.lb...In.lb...Nm Notes: When you change units the target setting will also be changed to the new units value (makes a great torque conversion calculator). -
Page 4: Lcd Contrast
EDTW Operation instructions Page 3 Applying Torque: 1. Tighten nut or bolt by applying a steady even pull using built in ratchet as necessary. Wrench should be kept at 90 degrees to axis of bolt during tightening. 2. When pre-set torque is reached, there are 3 ways to determine what torque is being applied: - Look directly at the LCD. - Page 5 Mexico Service Center Mountz Mexico SA de CV Chihuahua For calibration, re-adjustment or repairs, please send the tool to Av. Cristobal Colon #15343 one of our 3 service locations.
