MTWD Digital Torque Wrenches
The MTWD is digital wrench that provides a digital display of torque readings. The tool is designed for daily screw tightening
production environment and provides a visual, acoustic and sensory signal (handle vibrates) when the pre-set torque is
reached.
Features
-
Accuracy +/- 2.5% of reading CW, +/- 1 digit
Accuracy +/- 3% of reading CCW, +/- 1 digit
-
Designed for daily screw tightening production environment.
-
Program pre-set torque.
-
Visual, acoustic and sensory signal (handle vibrates) when the set
torque is reached.
-
Four units of torque measurement available: N.m, lbf.ft, lbf.in, kgf.m
-
Heavy duty bi-directional ratchet head
-
Operating mode: Peak
-
Holds "Peak" torque readings for 15 seconds.
-
Large LCD screen for high visibility.
-
Soft texture ergonomic grip.
-
Four-digit display
-
Battery operation
Install Batteries
1. Unscrew the screw with phillips screwdriver.
Remove end cap. Remove the two battery
holders.
2. Install (6) high quality AAA batteries with the two
battery holders. Install the batteries in the correct
direction.
Notes: Remove batteries if you don't plan to use the
wrench for an extended period of time. Replace batteries
as soon as possible when dead.
3. Insert end cap back on. Tighten the screw with phillips
screwdriver.
Notes: Only use AAA batteries. Improper battery may
damage torque wrench.
Corporate Headquarters: 1080 North 11th Street, San Jose, CA 95112

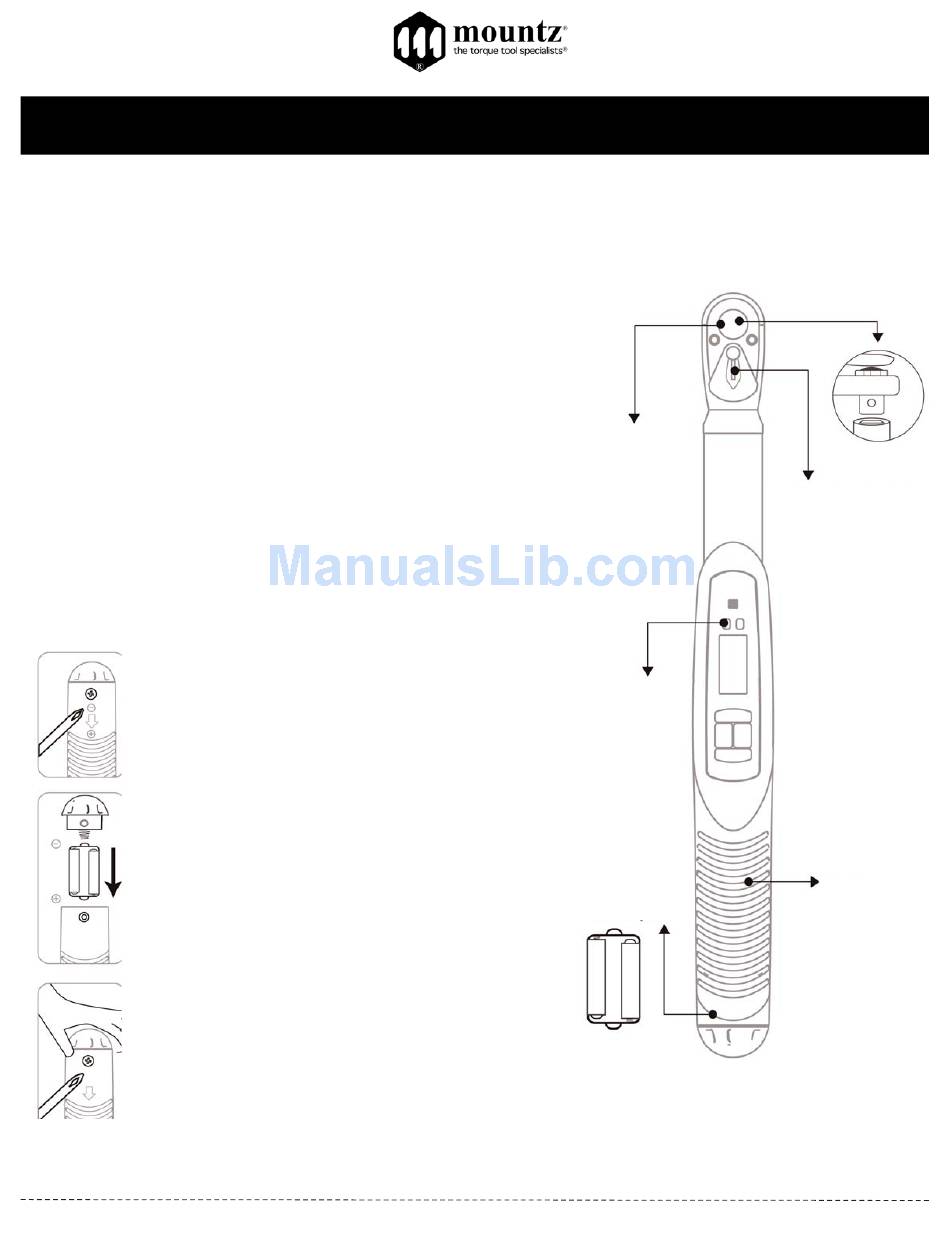

MTWD (Digital Wrench) Operating Instructions
Rev 1.0 (3/29/2012)
Ratchet Head
LCD Screen Display &
Functional Panel
Batter Lid
Phone: (408) 292-2214 Fax: (408) 292-2733
www.mountztorque.com
Direction Switch
(Clockwise &
Counter-Clockwise)
Handle
Page 1
