ER-04RP

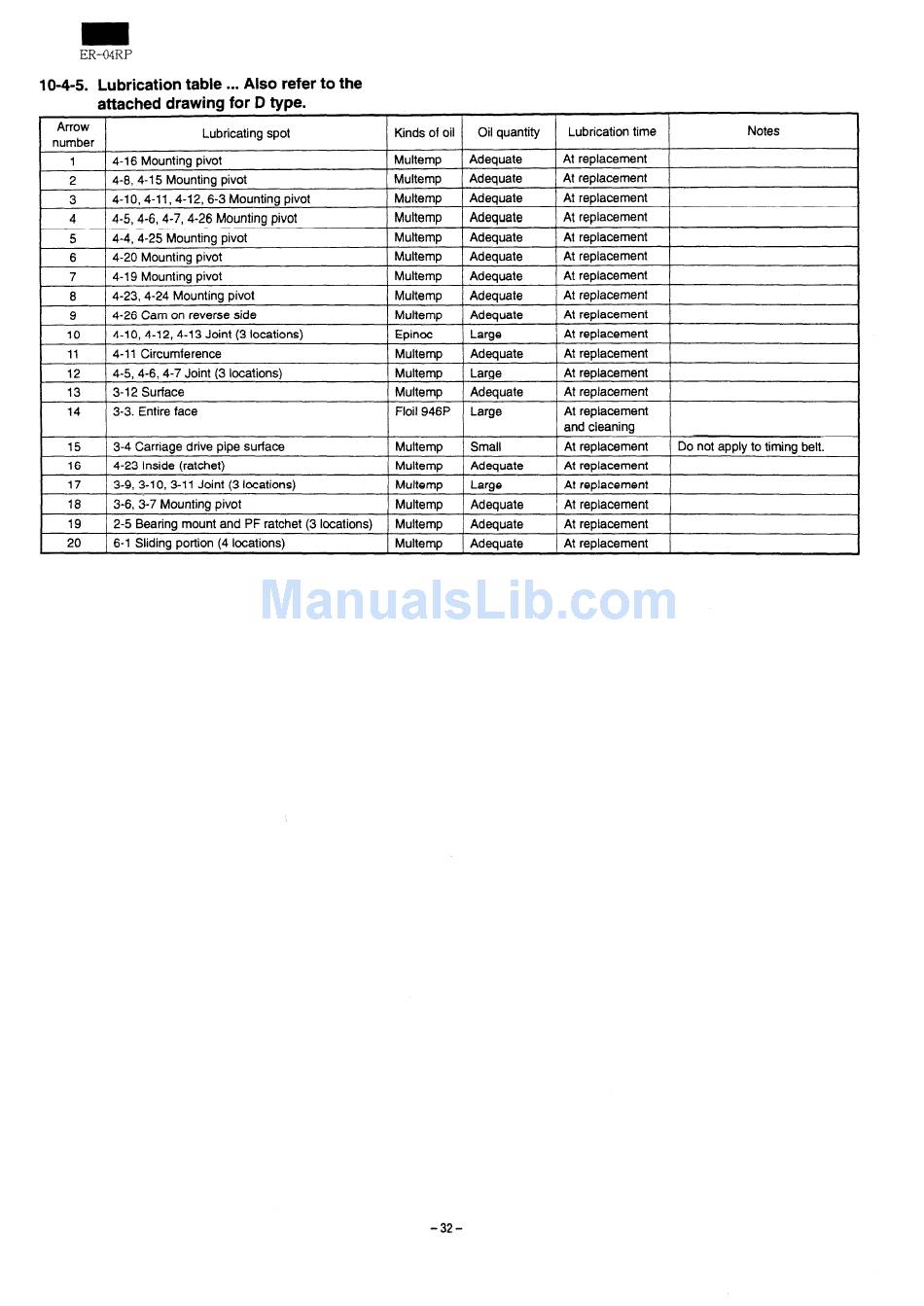

10-4-5. Lubrication table ... Also refer to the
attached drawing for D type.
Arrow
Lubricating spot
Kinds of oil
Oil quantity Lubrication time
Notes
number
1 4-16 Mounting pivot
Multemp Adequate
At replacement
2
4-8, 4-15 Mounting pivot
Multemp
Adequate
At replacement
3 4-10,4 -11,4-12,6-3 Mounting pivot
Multemp
Adequate At replacement
4 4-5, 4-6,4-7, 4-26 Mounting pivot
Multemp Adequate
At replacement
5
4-4, 4-25 Mounting pivot
Multemp Adequate At replacement
6 4-20 Mounting pivot
Multemp
Adequate
At replacement
7 4-19 Mounting pivot
Multemp Adequate At replacement
8
4-23, 4-24 Mounting pivot Multemp Adequate
\ At replacement
9 4-26 Cam on reverse side
Multemp Adequate
At replacement
10
4-10,4-12,4-13 Joint (3
locations)
Epinoc Large
At replacement
11 4-11 Circumference Multemp Adequate At replacement
I
12 4-5, 4-6,4-7 Joint (3 locations) I Multemp I Large I At replacement
1
13 I 3-12 Surface
I Multemp I Adequate I At replacement
14 3-3. Entire face Floil 946P Large At replacement
and cleaning
15
3-4 Carriage drive pipe surface
Multemp
Small
At replacement Do not apply to timing belt.
16 4-23 inside (ratchet) Multemp Adequate I At replacement
17 3-9, 3-10,3-11 Joint (3 locations) Muttemp Large I At replacement
1
18 I 3-6, 3-7 Mounting pivot I Multemp
I Adequate I At replacement
I
19 I 2-5 Bearing mount and PF ratchet (3 locations) I Multemp I Adequate At replacement
I 20 \ 6-1 Slidinq portion (4
locations)
I
Multem~ I Adeauate ! At re~lacement I
-32-
