Page 1: Air Conditioning

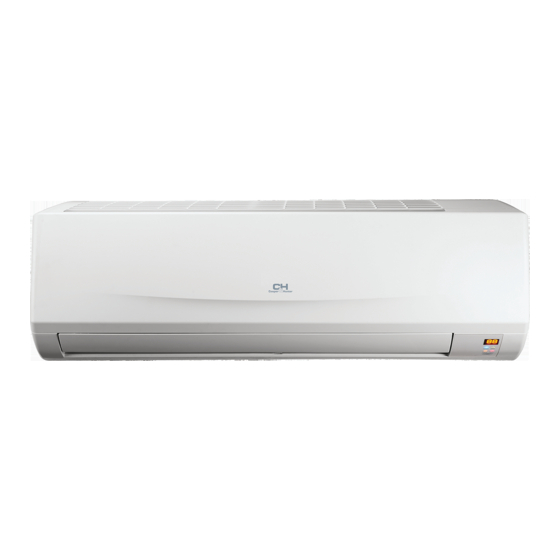

ALICE HIGH-WALL DUCTLESS AIR CONDITIONING & HEATING SYSTEM OWNER'S MANUAL Models: GWH09KF-A3DNB4A(115V) GWH12KF-A3DNB4A(115V) GWH09KF-D3DNB4F(230V) GWH12KF-D3DNB4F(230V) GWH18KG-D3DNB4F(230V) GWH24KG-D3DNB4A(230V) - Page 2 GWH09KF-A3DNB4A(115V) System Includes: GWH09KF-A3DNB4A/I, GWH09KF-A3DNA5A/O GWH12KF-A3DNB4A(115V) System Includes: GWH12KF-A3DNB4A/I, GWH12KF-A3DNA5A/O GWH09KF-D3DNB4F(230V) System Includes: GWH09KF-D3DNB4F/I, GWH09KF-D3DNA5F/O GWH12KF-D3DNB4F(230V) System Includes: GWH12KF-D3DNB4F/I, GWH12KF-D3DNA5F/O GWH18KG-D3DNB4F(230V) System Includes: GWH18KG-D3DNB4F/I, GWH18KG-D3DNA5F/O GWH24KG-D3DNB4A(230V) System Includes: GWH24KG-D3DNB4A/I, GWH24KG-D3DNA5A/O...
-
Page 3: Table Of Contents
Content Operation Notices Precautions......................1 Parts name ......................6 Screen Operation Guide Buttons on remote controller .................7 Introduction for icons on display screen ..............7 Introduction for buttons on remote controller ............8 Function introduction for combination buttons .............12 Operation guide . -
Page 4: Explanation Of Symbols
Explanation of Symbols Indicates a hazardous situation that, if not avoided, will result in death or serious injury. Indicates a hazardous situation that, if not avoided, could result in death or serious injury. Indicates a hazardous situation that, if not avoided, may result in minor or moderate injury. -
Page 5: Precautions
Precautions WARNING Operation and Maintenance This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 6 Precautions WARNING Maintenance must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Do not repair air conditioner by yourself. It may cause electric shock or damage. Please contact dealer when you need to repair air conditioner. Do not extend fingers or objects into air inlet or air outlet.
- Page 7 Precautions WARNING Attachment Installation must be performed by qualified professionals. Otherwise, it may cause personal injury or damage. Must follow the electric safety regulations when installing the unit. According to the local safety regulations, use qualified power supply circuit and circuit break. Do install the circuit break.
- Page 8 Precautions WARNING Do not put through the power before finishing installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
- Page 9 The indoor unit should be installed close to the wall. Instructions for installation and use of this product are provided by the manufacturer. Working temperature range For model: GWH09KF-A3DNB4A(115V), GWH12KF-A3DNB4A(115V) Indoor side DB/WB(°F/°C ) Outdoor side DB/WB(°F/°C) Maximum cooling 89.6/73.4(32/23) 109.4/78.8(43/26)
-
Page 10: Parts Name
Parts Name Indoor Unit panel air inlet air outlet horizontal louver display temp. indicator (Note: This dispaly is not available for some models.) drying indicator cooling indicator AUTO HEALTH X-FAN HUMIDITY FILTER power indicator HOUR heating indicator ON/OFF ON/OFF MODE receiver window aux.button X-FAN... -
Page 11: Buttons On Remote Controller
Buttons on remote controller ON/OFF button AUTO HEALTH X-FAN MODE button HUMIDITY FILTER +/- button TURBO FAN button HOUR ON/OFF button button ON/OFF MODE HEALTH SAVE button X-FAN button (Note: X-FAN is same with BLOW) TEMP button TIMER button X-FAN TEMP TIMER TURBO button... -
Page 12: Introduction For Buttons On Remote Controller
Introduction for buttons on remote controller Note: ● After putting through power, air conditioner will give out a sound and operation indicator " " is ON (red indicator). You can operate the air conditioner through the remote controller. ● At ON status, after each pressing button on remote controller, the signal icon " "... - Page 13 Introduction for buttons on remote controller Note: For preventing cold wind, after starting up heating mode, indoor fan will blow fan afterdelaying 1-5min. (Details time is decided by indoor ambient temperature) Temperature setting range on remote controller: 60.8~86°F (16~30°C). Fan speed setting range: auto, low speed, medium speed and high speed.
- Page 14 Introduction for buttons on remote controller Note: When selecting " " with remote controller, it’s auto swing. Horizontal louver of air conditioner will swing up&down automatically at the maximum angle. When selecting " 、 、 、 、 swing. Horizontal louver of air conditioner will stop at that position as shown by the icon to swing.
- Page 15 Introduction for buttons on remote controller SAVE function: Under cool mode, press SAVE button and the unit will operate under SAVE mode. Dual-8nixie tube on remote controller displays "SE". Air conditioner will operate at auto speed. Set temperature can’t be adjusted. Press SAVE button again to exit SAVE mode.
-
Page 16: Function Introduction For Combination Buttons
Introduction for buttons on remote controller hour. When holding "+" or "-" button, 2s later, the time will change quickly until to Cancel TIMER OFF: Press "TIMER" button again under TIMER OFF status. ● At OFF status, press this button once can set TIMER ON. Please refer to TIMER off for detailed operation. -
Page 17: Operation Guide
Operation guide 1. After putting through the power, press " " button on remote controller to ON/OFF turn on the air conditioner. 2. Press " " button to select your required mode: AUTO, COOL, DRY, FAN, MODE HEAT. 3. Press "+" or "-" button to set your required temperature. (Temperature can’t be adjusted under auto mode). -
Page 18: Emergency Operation
Emergency operation If remote controller is lost or damaged, please use auxiliary button to turn on or turn off the air conditioner. The operation in details are as below: conditioner. When the air conditioner is turned on, it will operate under auto mode. - Page 19 Clean and maintenance Open panel Pull out the panel to a certain Use dust catcher or water to clean the filter. When the filter is very dirty use the water (below 113°F(45°C)) to clean it, and then put it in a shady and cool place to dry.
- Page 20 Clean and maintenance NOTICE: Checking before use-season 1. Check whether air inlets and air outlets are blocked. 2. Check whether circuit break, plug and socket are in good condition. 4. Check whether mounting bracket for outdoor unit is damaged or corroded. If yes, please contact dealer.
-
Page 21: Malfunction Analysis
Malfunction analysis General phenomenon analysis Please check below items before asking for maintenance. If the malfunction still can’t be eliminated, please contact local dealer or qualified professionals. Phenomenon Check items Solution ● Whether it's interfered severely ● Pull out the plug. Reinsert (such as static electricity, stable the plug after about 3min, and voltage)? - Page 22 Malfunction analysis Phenomenon Check items Solution ● Power failure? ● Wait until power recovery. ● Is plug loose? ● Reinsert the plug. ● Circuit break trips off or ● Ask professional to replace fuse is burnt out? circuit break or fuse. Air condit- ●...
- Page 23 Malfunction analysis Phenomenon Check items Solution ● Whether there’s odour source, ● Eliminate the odour source. Odours are such as furniture and cigarette, emitted ● Clean the filter. etc. ● Whether there’s interference, ● Disconnect power, put back Air conditioner such as thunder, wireless power, and then turn on the operates nor-...
-
Page 24: Error Code
Malfunction analysis Error Code ● When air conditioner status is abnormal, temperature indictor on indoor unit will ation of error code. Above indicator diagram is only Error code for reference. Please refer to actual product for the actual Indoor indicator and position. display Below listed error codes are only part error codes. -
Page 25: System Operation
SYSTEM OPERATION COOLING OPERATION How it works: In cooling mode, your alice indoor unit will absorb heat from the room, then the alice outdoor unit will discharge the heat to the outdoors. The alice cooling capacity decreases as the outdoor temperature increases. -
Page 26: Energy Saving Tips
ENERGY SAVING TIPS 1. Relaxing room temperature at night is OK: During the nighttime hours you don’t require the same level of conscious cooling or heating. Try using Sleep Mode to gradually relax room temperature and allow the unit to run less and save energy. 2. - Page 27 www.cooperandhunter.us LIMITED WARRANTY STATEMENT Ductless Heat Pump Split System FOR WARRANTY SERVICE OR REPAIR: Contact your installing contractor. You may find the installer’s name on the equipment or in your Owner’s packet. Complete product registration below and send back by e-mail at PRODUCT REGISTRATION: Model No.: ______________________________________________________________________________________________ Serial No.: _______________________________________________________ Date of Installation: ______________________...
- Page 28 LIMITATIONS OF WARRANTIES: ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.
