Echo PAS-225 Operator's Manual

Pro attachment series

Hide thumbs Also See for PAS-225:

Operator's manual (56 pages)

Quick start manual (28 pages)

Operator's manual (36 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the PAS-225 and is the answer not in the manual?

Questions and answers

Julian Aug

May 30, 2025

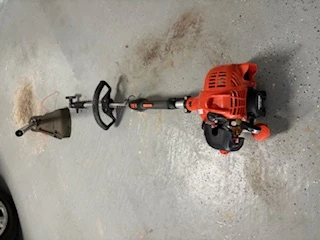

hearing a rattling noise in the pipe that house the drive shaft ...the engine is working fine, but to power to spin the string head

1 comments:

Mr. Anderson

May 30, 2025

A rattling noise in the drive shaft pipe of an Echo PAS-225, when the engine is working but the string head is not spinning, could be caused by the inner drive shaft not engaging properly with the square upper drive shaft socket. This may happen if the attachment is not fitted correctly into the coupler or if the inner drive shaft is damaged or disconnected.

This answer is automatically generated

Summary of Contents for Echo PAS-225

Page 1 Users of this equipment risk injury to themselves and others if the unit is used improperly and/or safety precautions are not followed. ECHO provides an operator’s manual and a safety manual. Both must be read and understood for proper and safe operation.
Page 2: Table Of Contents
The Safety Manual ................................. 3 Servicing Information ................................3 Parts/Serial Number ............................... 3 Service.................................... 3 Echo Consumer Product Support ........................... 3 Product Registration ............................... 3 Additional or Replacement Manuals ..........................4 Safety..................................... 4 Manual Safety Symbols and Important Information......................4 International Symbols ..............................
Page 3: Introduction
Service of this product during the warranty period must be performed by an Authorized ECHO Service Dealer. For the name and address of the Authorized ECHO Service Dealer nearest you, ask your retailer or call: 1-800-432-ECHO (3246). Dealer information is also available on our Web Site. When presenting your unit for Warranty service/repairs, proof of purchase is required.
Page 4: Additional Or Replacement Manuals
ECHO Inc., 400 Oakwood Road, Lake Zurich, IL 60047 (800-673-1558). Always check the ECHO Web Site for updated information. Safety Videos are available from your Echo dealer. A $5.00 shipping charge will be required for each video. SAFETY Manual Safety Symbols and Important Information Throughout this manual and on the product itself, you will find safety alerts and helpful, informational messages preceded by symbols or key words.
Page 5: International Symbols
Do not operate closer than 15 M (50 ft.) from DO NOT USE Plan retreat path electrical BLADES - Line from falling hazards. Keep Head Only objects. bystanders at least 15 meters (50 feet) away. X7722278200 © 11/2014 ECHO Inc.
Page 6: Personal Condition And Safety Equipment
Hearing/Ear Protection ECHO recommends wearing hearing protection whenever unit is used. Breathing Protection Operators who are sensitive to dust or other common airborne allergens may need to wear a dust mask to prevent inhaling these materials while operating unit.
Page 7 ECHO does not recommend the use of ECHO products by anyone who has a pacemaker.
Page 8 • Review area to be cleared. Look for potential hazards such as stones or metal objects. Keep a Firm Grip • Always hold throttle handle and support handle with thumbs and fingers tightly encircling the handles. X7722278200 © 11/2014 ECHO Inc.
Page 9: Equipment
Use only ECHO attachments. Serious injury may result from the use of a non-approved attachment combination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual and safety manual.
Page 10: Emission Control (Exhaust & Evaporative)
The 50 or 300 hour emission compliance period is the time span selected by the manufacturer certifying the engine emissions output meets applicable emissions regulations, provided that approved maintenance procedures are followed as listed in the Maintenance Section of this manual. X7722278200 © 11/2014 ECHO Inc.
Page 11: Description
Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for specific information.
Page 12 21. SPARK PLUG - Provides spark to ignite fuel mixture. 22. DRIVE SHAFT ASSEMBLY – Lightweight aluminum drive shaft. 2-position shaft design permits unit to be rotated in 180-degree steps. 23. BLOWER PIPE - Concentrates air stream. X7722278200 © 11/2014 ECHO Inc.
Page 13: Contents
The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions, shield installation and other assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts.
Page 14: Assembly
Plastic Debris Shield, Shield Plate, three (3) 5 x 16 mm screws. The plastic shield is for use with the Nylon Line Head only. Install Metal Shield when using plastic or metal blades, or serious injury may result. X7722278200 © 11/2014 ECHO Inc.
Page 15: Nylon Line Head Installation
Note: Your nylon line head may appear different than nylon line head shown. To Advance Trimmer Line See Maintenance Section for nylon line replacement. Note: To advance trimmer line, tap trimmer head against the ground while the head is turning at normal operating speed. X7722278200 © 11/2014 ECHO Inc.
Page 16: Remove Nylon Line Head
Fuel Alternative fuels, such as E-15 (15% ethanol), E-85 (85% ethanol) or any fuels not meeting ECHO requirements are NOT approved for use in ECHO 2-stroke gasoline engines. Use of alternative fuels may cause performance problems, loss of power, overheating, fuel vapor lock, and unintended machine operation, including, but not limited to, improper clutch engagement.
Page 17 OPERATION Echo premium Power Blend X ™ Universal 2-Stroke Oil may be mixed at 50:1 ratio for application in all Echo engines sold in the past regardless of ratio specified in those manuals. Handling Fuel Fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury may result.
Page 18: Operating Blower
2. Allow the engine to warm up at a fast idle for a few minutes. 3. Use lower speed to blow debris from hard surfaces. 4. Additional speed may be necessary to clean debris, snow, etc. from lawns and flowerbeds. X7722278200 © 11/2014 ECHO Inc.
Page 19: Operation With Blades
The type of Blade used MUST be matched to the type and size of material cut. An improper or dull blade can cause serious personal injury. Blades MUST be sharp. Dull blades increase the chance of kick-out and injury to yourself and bystanders. X7722278200 © 11/2014 ECHO Inc.
Page 20 During blade operation, the same fatigue reduction is achieved. For more information Safety to the operator is also enhanced by reducing the scan this QR code. possibility of blade contact with the operator's hands and feet by restricting trimmer movement. X7722278200 © 11/2014 ECHO Inc.
Page 21: Starting Cold Engine
5 pulls, repeat instructions 2 - 5. 6. Throttle Trigger After engine warm-up, grip throttle handle and support handle. Depress the throttle trigger lockout, and gradually depress throttle trigger to increase engine RPM to operating speed. X7722278200 © 11/2014 ECHO Inc.
Page 22: Starting Warm Engine
Move stop switch button (A) backward to STOP position. If engine does not stop when stop switch is moved to STOP position, close choke - COLD START position - to stall engine. Have your ECHO dealer repair stop switch before using unit again. X7722278200 © 11/2014 ECHO Inc.
Page 23: Maintenance
If you are unsure or are not equipped with the necessary tools, you may want to take your unit to an ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO Dealer do it, each maintenance task has been graded.
Page 24: Air Filter
When servicing model year 2012 and later equipment, only fuel supply hoses certified by EPA can be used to replace the original equipment supply hose. Fines up to $37,500 may be enforced for using an un-certified replacement part. X7722278200 © 11/2014 ECHO Inc.
Page 25: Spark Plug
Removal of cooling passage blockages or cleaning of cooling fins is considered “Normal Maintenance.” Any failure attributed to lack of maintenance is not warranted. 1. Remove spark plug lead. X7722278200 © 11/2014 ECHO Inc.
Page 26 4. Use brush to remove dirt from the cylinder fins. 5. Remove ignition wires from clip for cleaning. 6. Remove grass and leaves from the grid between the recoil starter and fuel tank. 7. Assemble components in reverse order. X7722278200 © 11/2014 ECHO Inc.
Page 27: Exhaust System
6. Tighten muffler mounting bolts (or nuts) to 90-110 kgf•cm (80-95 in•lbf). 7. Install engine cover and attach spark plug lead. 8. Start engine, and warm to operating temperature. 9. Stop engine, and re-tighten mounting bolts (or nuts) to specifications. X7722278200 © 11/2014 ECHO Inc.
Page 28: Carburetor Adjustment
This engine has been factory adjusted to maintain satisfactory starting, emission, and durability performance up to 1,100 feet above sea level (ASL) (96.0 kPa). To maintain proper engine operation and emission compliance above 1,100 feet ASL the carburetor may need to be adjusted by an authorized ECHO service dealer.
Page 29: Lubrication
4. Install the gear housing and shield assembly. Flat edge of washers (D) must be against drive shaft. Drive Shaft Upper 1. Loosen clamping knob (A). 2. Pull locator pin (B) and rotate 1/4 turn counterclockwise to lockout position. 3. Remove attachment. X7722278200 © 11/2014 ECHO Inc.
Page 30: Nylon Line Head Disassembly Instructions
However, if circumstances require disassembly, follow these instructions. 1. Press top of locking tabs (A) on both sides of Speed Feed® head to release cover (B) from eyelet carrier (C). 2. Remove cover from eyelet carrier. X7722278200 © 11/2014 ECHO Inc.
Page 31: Nylon Line Replacement
Trimmer head is now fully loaded and ready for operation. When the wear indicators located at the bottom of the Speed-Feed® head are worn smooth, or if holes appear, replacement of the cover or the entire Speed-Feed® head is required. Wear Indicators X7722278200 © 11/2014 ECHO Inc.
Page 32: Sharpening Metal Blades
MAINTENANCE PAS-225VPB Sharpening Metal Blades Three styles of metal blades are approved for use on the ECHO Brush Cutter. The 8-tooth blade can be sharpened during normal maintenance. The clearing blade and 80 tooth blade require professional service. Before sharpening, CLOSELY inspect blade for cracks (look at the bottom of each tooth and the center mounting hole closely), missing teeth and bending.
Page 33: Troubleshooting
Fuel strainer clogged Clean or replace Fuel at carburetor No fuel at carburetor Fuel line clogged Clean or replace Carburetor See your Echo dealer No fuel at cylinder Carburetor See your Echo dealer OPEN choke Fuel at cylinder Clean/replace air filter...
Page 34: Storage
Observe the piston location through the spark plug hole. Pull the recoil handle slowly until the piston reaches the top of its travel and leave it there. 8. Install the spark plug (do not connect ignition cable). X7722278200 © 11/2014 ECHO Inc.
Page 35: Specifications
PAS-225VPB SPECIFICATIONS SPECIFICATIONS MODEL PAS-225 Value Pack Length 1793 mm (70.6 in.) Width 251 mm (9.88 in.) Height 328 mm (12.9 in.) Weight (dry) 5.75 kg (12.68 lb.) Engine Type Air cooled, two-stroke, single cylinder gasoline engine Bore 32.2 mm (1.27 in.) Stroke 26.0 mm (1.02 in.)
Page 36: Echo Optional Attachments
PAS-225VPB ECHO Optional Attachments Use only ECHO attachments for these models. Serious injury may result from the use of non ECHO attachment combinations. Read and comply with all safety instructions listed in this manual and attachment manual.ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO for use with these units.
Page 37: Warranty Statements
Any misuse from contact with concrete, rocks, or other structures is not covered by this warranty. • ECHO’s Rapid Loader String Head carries a lifetime warranty on the line locking system, parts only; no labor. Refer to your operator’s manual for string head installation and maintenance instructions.
Page 38 10% ethanol (grain alcohol) or 15% MTBE (methyl/tertiary/butyl/ether) is also approved. The prescribed mixing ratio of gasoline to oil is listed on the ECHO oil label and covered in your operator’s manual. engine speeds as listed in your operator’s manual.
Page 39: Product Registration
Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product on-line. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Inc. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.
Page 44 PAS-225 T39814001001/T39814999999 T39914001001/T39914999999 Trimmer S06400001001/S06400999999 Blower ECHO, INCORPORATED S68600001001/S68600999999 400 Oakwood Road Lake Zurich, IL 60047 www.echo-usa.com...
