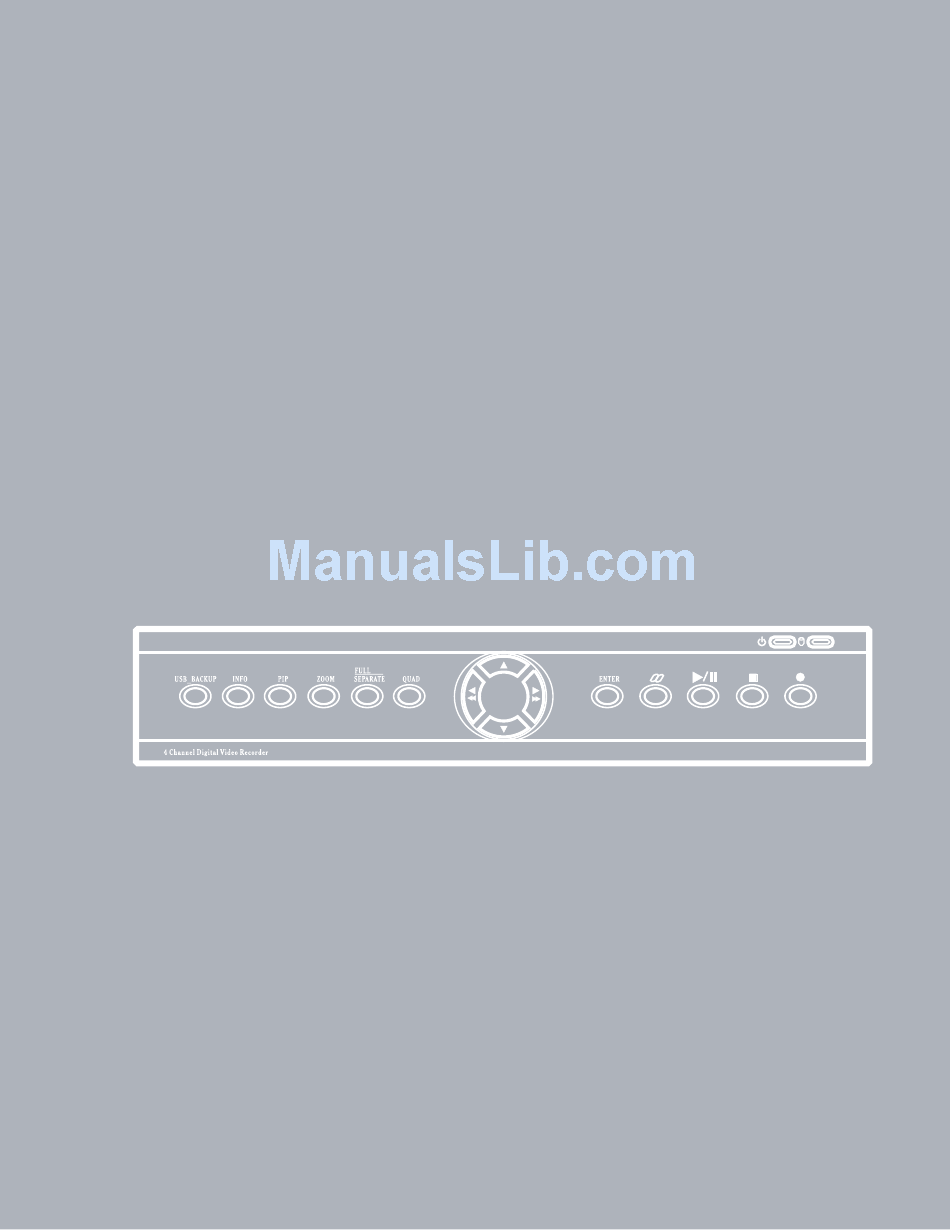

- Page 1 SecurityMan ® Network Edition 4CH Triplex Digital Video Recorder SecurityMan ® User's Manual NDVR-04...
- Page 2 Limitation of Liability The liability of SecurityMan Inc,. arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall SecurityMan be liable for costs of procurement of substitute products or services, or for any lost profits, or for any consequential, incidental, direct or indirect damages, however caused and on any theory of liability, arising from this warranty and sale.
-
Page 3: Table Of Contents
Contents Introduction ............. . . 5 Front Panel Key Function . - Page 4 Contents Network Viewer Program ........... 23 To Install Network Viewer.
-
Page 5: Introduction
Introduction The Digital Video Recorder (DVR) is for recording video streams up to 4 channels all at the same time. It adopts the digital image compression technology to compress the video streams into digital signals and uses HDD for recording. The following operation guide explains how to operate and manage the DVR while the installation guide explains how to install the DVR and how to add HDD into the DVR. -
Page 6: Rear Panel Function
Installation Rear Panel Function USB2.0: Flash Drive S-Video(Y/C) video output connector VIDEO-OUT( BNC VIDEO OUTPUT CONNECTOR) VIDEO-IN (BNC CAMERA INPUT) VIDEO-LOOP OUTPUT (CAMERA LOOP OUT) 4 sensor inputs and one alarm output DC-IN 12V, 4.2A, positive inside Audio channel input x 1 and audio output x 1 LAN network port Power switch NDVR FAN... -
Page 7: Dvr Installation
DVR Installation Video Output connection to TV or monitor Please connect the TV or monitor input source to the video-out located on the back of the DVR. This unit provide an S-Video and 2BNC output connectors. Video output are used primary for monitoring and toggle between full screen and quad screen display. -
Page 8: Sensor Installation
DVR Installation Sensor Installation This unit contains 4 sensor inputs in which each sensor corresponds to the 4 channels. The sensor installation procedures are as follow. There are two simple step in installing the sensors. connecting the sensor signal line: connect the sensor signal line to DVR. The sensor signal terminal is located on the rear panel of the DVR. -
Page 9: Operation Guide
Operation Guide Full screen or quad screen display Press QUAD button to display quad screen. Press and hold the button for 3 seconds to enter auto sequence display mode. To adjust the screen sequence auto dwell time between each channel, please go to SYSTEM SETUP into AUTO SEQUENCE SET into MON SEL: DISPLAY Press FULL/SEPARATE button to display the selected camera image in full screen, i.e. -
Page 10: Information
Operation Guide Information Press INFO to get the following on screen display information; system setting, HD, firmware, etc. 0000 MASTER SLAVE HDD MODEL: Maxtor HDD Capital: NO DETECT HDD USED: 0.07% HDD READ: 0.07% PB REPEAT: OFF OVERWRITE: ON REC SPEED: 50 Fld/1sec REC Letter: HIGH V. -
Page 11: Freeze Mode
Operation Guide Freeze Mode During the live camera view, press the stop button to freeze the image. The symbol F will appear on the top right hand corner of the screen. The freeze command can be use in both single channel view or quad channel view. -
Page 12: Rec Start/Stop Search
Operation Guide REC START/STOP SEARCH (Search by Start/Stop Time recording): RECORD SEARCH MASTER PAGE:0001/9999 START TIME END TIME 4/06/2006 14:43 04/26/2006 14:46 05/06/2006 03:10 05/06/2006 03:45 05/06/2006 10:05 05/06/2006 10:23 ----------------------------------------------------------- ENTER SET ↑↓← → EXIT START TIME: MM / DD / YYYY HH: MM (start of recorded file) END TIME: MM / DD / YYYY HH: MM (End of recorded file) The DVR can store up to 10 files to a page and 100 pages maximum. -
Page 13: On Screen Display Functions
On Screen Display Functions Select TIME/DATE SEARCH to search for specific time/date by inputting the MM/YYYY HH: MM into the search, the search engine will start to search for the specified time and date. START: MM / DD / YYYY HH: MM (start/earliest date/time that exists in the hard drive) END: MM / DD / YYYY HH: MM (End/last date/time that exist in the hard drive) M M / D D / Y Y Y Y H H : M M (this date/time area is adjustable for search). -
Page 14: Time/Date Set
On Screen Display Functions TIME/DATE SET In the SYSTEM SETUP menu, select TIME/DATE SET and press [ENTER]. Press the UP/DOWN buttons to change the value. Press the FORWARD /REVERSE to select number category. Press MENU/ESC to return to SYSTEM setup. TIME/DATE SET DATE: 0 4 / 2 6 / 2 0 0 6 TIME: 1 5 : 4 3 : 5 1... -
Page 15: Factory Reset
On Screen Display Functions FACTORY RESET In the SYSTEM SETUP menu, select FACTORY RESET and press ENTER. A warning screen will appear as shown below. Select YES or NO by pressing the FORWARD/REVERSE buttons then press ENTER to confirm selection. Press the MENU/ESC to return to the SYSTEM SETUP menu page. FACTORY R ESET Attention... -
Page 16: Buzzer Sound
On Screen Display Functions SYSTEM SETUP ◎ TIME/DATE SET [ ◎ HDD FORMAT SET [ ◎ AUTO SEQUENCE SET [ ◎ FACTORY RES ET [ ◎ PLAY REPEAT: NO ◎ VIDEO SOURCE: PA ◎ BUZZER SOUND: ON ◎ PASSWORD ENA: OFF ◎... -
Page 17: New Password
On Screen Display Functions NEW PASSWORD In the SYSTEM SETUP menu, select NEW PASSWORD. Use the directional buttons FORWARD/ REVERSE to change value of the password. Use the Up/Down buttons to toggle between the first and the fourth digit setting. After changing from the manufacture default password, please remember the newly created password or jot them down and place it in a secure area. -
Page 18: Bri/Con Set
On Screen Display Functions BRI/CON SETUP In the VIDEO SETUP menu, select BRI/CON SETUP and press ENTER. Press UP/DOWN to select one of the four camera BRI/CON and press FORWARD/REVERSE buttons to adjust the value. Press MENU to return to the VIDEO SETUP menu page. The default value is the middle for both the BRI/CON. BRIGHT/CONTRAST SETUP BRI: [ BRI: [... -
Page 19: Record Set
On Screen Display Functions VIDEO SETUP ◎ NAME SETUP [ ◎ BRI / CON SET [ ◎ BOUNDARY: WHITE ◎ BACKGROUND: BLUE ◎ LANGUAGE: ENGLISH ----------------------- ----- --------------------------- ENTER S ↑↓← → EXIT RECORD SET Press the MENU button to enter the SETUP MODE. Browse to select RECORD SET and press ENTER to enter record setup as illustrated below. -
Page 20: Sensor Set
On Screen Display Functions The DVR support static IP address only, it will NOTsupport dynamic IP address. With a valid static IP address, please input them into each of the categories: SUB NET, GATEWAY, IP ADDR. If you are unsure, please contact your ISP (Internet Service Provider) for detail as to what type of IP you signed up for when registered. -
Page 21: Firmware Update
On Screen Display Functions COMPARE FRAME: 1~15(compare the changes of fields’ image for alarm trigger. 1=most sensitive 15=least sensitive) EVENT REC TIME: OFF, 1~99 MINS, CONTINUES ALARM OUTPUT: NO USE, 1~99 SEC, Always on (used for both sensor output and buzzer sound output) NOTE: To complete buzzer sound output settings;... -
Page 22: Schedule Set
On Screen Display Functions SETUP MODE USB FW UPDATE ◎ SYSTEM SET [ USB total size: 512 MByte ◎ VIDEO SET [ Useful size: 512 MByte ◎ RECORD SET [ USB Firmware Update ◎ NETWORK SET [ ◎ SENSOR SET [ CONTINUE USB FIRMWARE UPDATE ? ◎... -
Page 23: Network Viewer Program
Network Viewer software To Install Network Netviewer Software: Insert Netviewer CD into the CD-ROM tray, an install shield wizard will appear as shown below. If the install wizard fail to appear, please bowse the CD contents and double click on “setup.exe” file to exceute and run setup. - Page 24 Network Viewer software Setup will add program icons to the program folder listed below. Click “Next” to continue installation. Click “Next” to install NetViewer software.
- Page 25 Network Viewer software Setup complete, Click “Finish”.
-
Page 26: To Uninstall
Network Viewer software To Uninstall Netviewer: Go to start >programs/all programs> network viewer >uninstall Network Viewer or go to the system control panel>Add or Remove programs to remove Network Viewer. The following windows will appear: Click “Yes ” to proceed. Click “OK ”... -
Page 27: How To Use Network Viewer Client Software
Network Viewer software How to Use Network Viewer client software: To execute the Netviewer software go to start >all programs >Network Viewer > NetViewer4ch or double click on Netviewer4CH shortcut icon located on the desktop and a Network Viewer window will appear as shown below: Click the Setting icon on the Netviewer main screen, and the setting display box will appear. - Page 28 Network Viewer software Click the Connect button, and the Logon dialog box will appear. The DVR IP address will appear in the System field or click down arrow for options. Next input the DVR Password and click “OK” to connect. When successfully connected click OK.
-
Page 29: Live View
Network Viewer software LIVE VIEW Click on the Rec Start button to start recording on the local DVR from Network Viewer software and the red LED light will light up (lower-Right hand corner). Click on the Rec Stop button to stop the DVR recording and the red DVR LED light will gray out. - Page 30 Network Viewer software In the save to AVI window, select a save to location and give it a file name. Next select any combination of channels ranging from 1-4 to save and click OK to proceed. A blue LED located in the Lower-Right hand corner will appear.
-
Page 31: Playback
Network Viewer software SCANDISK Scandisk tab is used when the hard drive is removed from the inside of the DVR and connecting it directly to the IDE bus of the computer or via 3rd party External enclosure. This procedure is affective if there is something wrong with the DVR's ability to playback important recorded data. -
Page 32: Important Message
Recording Time Important Message: The higher the video quality, the clearer the picture. On the contrary, the lower the video quality setting can provide longer the record time. The record time varies depending on the field size and picture quality. The following record time tables can be used as a reference. The record time capacity can vary depending on the image complexity, color, black &... -
Page 33: Recording Time
Recording Time Recording Time Table: Based on 200GB HDD at PAL Unit : Hours Field/Sec Resolution Very High 33.7 67.3 140.3 168.4 336.7 561.2 841.8 1683.5 3367.0 High 46.3 92.6 192.9 231.5 463.0 771.6 1157.4 2314.8 4629.6 720*240 58.5 117.0 243.7 292.4 584.8 974.7 1462.0 2924.0 5848.0 Very Low... -
Page 34: Recording Time Table At Pal
Recording Time Recording Time Table Unit : Hours Based on 320GB HDD at NTSC Field/Sec Resolution Very High 52.9 105.8 158.7 264.6 634.9 1058.2 1587.3 3174.6 6349.2 High 74.1 148.1 222.2 370.4 888.9 1481.5 2222.2 4444.4 8888.9 720*240 92.6 185.2 277.8 463.0 1111.1 1851.9 2777.8 5555.6 11111.1 Very Low 98.8 197.5 296.3 493.8 1185.2 1975.3 2963.0 5925.9... -
Page 35: Recording Time Table At Ntsc
