Description
Channel Vision's 10dB power injected amplifier increases the strength of the
incoming cable or antenna signal. The increased signal strength means that you
can distribute the television signal longer distances and to more outputs.
Unlike most RF amplifiers, the C-0310 uses an external power supply that can
be connected directly to the unit using a coax "F" connector. For added
versatility an optional power injector may be used to feed power back to the
amplifier from a remote location, thereby eliminating the need to install the C-
0310 near a power outlet.

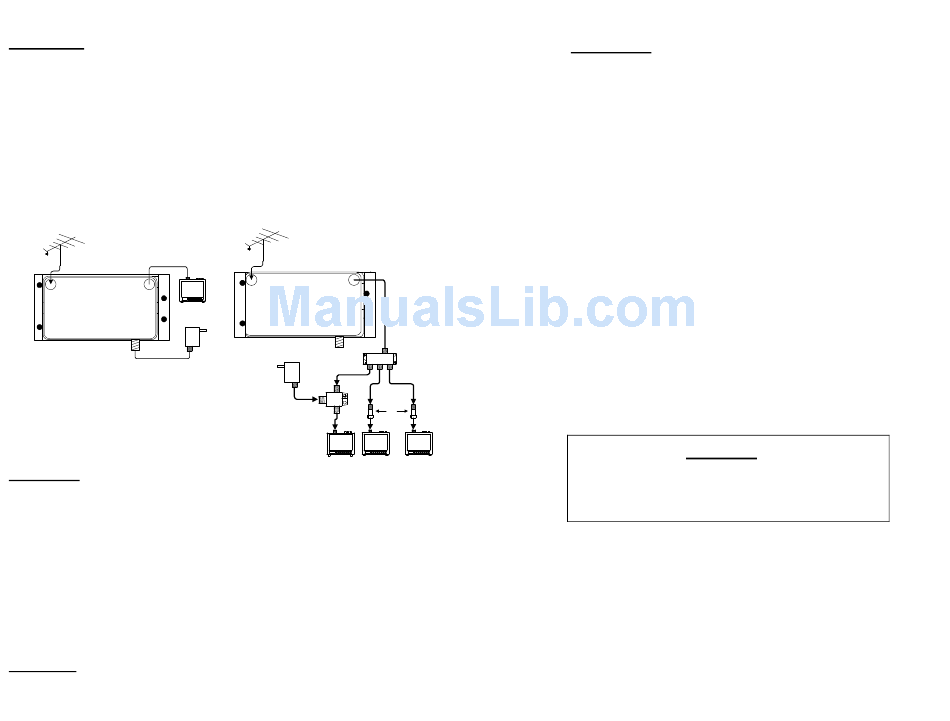

Standard Wiring Layout
Cable or
Antenna
IN OUT
Channel Vision
C-0310
DC12V
INPUT
Instructions
Step 1: Snap the C-0310 into C-0112,C-0119,C-0138,C-0150 chassis of your
choice.
Step 2: Connect the incoming cable or antenna line to the INPUT port.
Step 3: Connect the outgoing coax cable to the OUTPUT port to distribute the
signal to all the TV's in the house.
Step 4: Connect the power transformer to the DC12V INPUT. You can use an
optional power injector (model #CVT-PI) down line in the system. If using
a power injector, you must use DC passive splitters and DC blockers in the
system (please see diagram).
Please Note:
The unused trunk line connector of the last outlet device in each trunk line MUST
BE TERMINATED using a 75Ω terminator (model 2101).
Layout with Power Injector
Cable or
Antenna
IN OUT
Channel Vision
C-0310
DC12V
INPUT
HS-3
CVT-PI
880
DC Blocker
Specifications
Bandwidth 45-1000Mhz
Gain 10dB +/-1.5
Flatness +/-1dB
Return Loss (min) 14dB
Output Power +10dB
Dist. X-Mod. -70dB
CTB -65dB
Power Supply 12V/55mA
Warning
To prevent fire or shock hazard, do not
expose this appliance to rain or moisture
