Channel Vision CVT-40BID Instructions

Channel Vision Technology will repair or replace any defect in material or workmanship which occurs
during normal use of this product with new or rebuilt parts, free of charge in the USA, for two years from
the date of original purchase. This is a no hassle warranty with no mail in warranty card needed. This
warranty does not cover damages in shipment, failures caused by other products not supplied by
Channel Vision Technology, or failures due to accident, misuse, abuse, or alteration of the equipment.
This warranty is extended only to the original purchaser, and a purchase receipt, invoice, or other proof
of original purchase date will be required before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling (800) 840-0288 toll free. A Return
Authorization number must be obtained in advance and can be marked on the outside of the shipping
carton.
This warranty gives you specific legal rights and you may have other rights (which vary from state to
state). If a problem with this product develops during or after the warranty period, please contact
Channel Vision Technology, your dealer or any factory-authorized service center.

Specifications:

(typical @25º C)
Output Frequency Range:
Output Level:
Gain:
Gain Control:
Tilt Control:
Noise Figure:
Return Loss:
Input/output Impedance:
Input and Output Tests Points:
Connectors:
Power supply:
Power Consumption:
Operating Temperature:
Reverse path:
Gain:
54 ~ 1000MHz
50dBmV
(2 chs, spurs -60dBC)
40dB
0-20dB
0-16dB
<2dB
(max gain, min tilt)
8dB
75 ohm
-20dB
F type female
110VAC internal
20 W
-10ºC to +60ºC
5-42MHz
20dB
Specifications subject to change without notice.
500-178 rev A
C V
HANNEL ISION

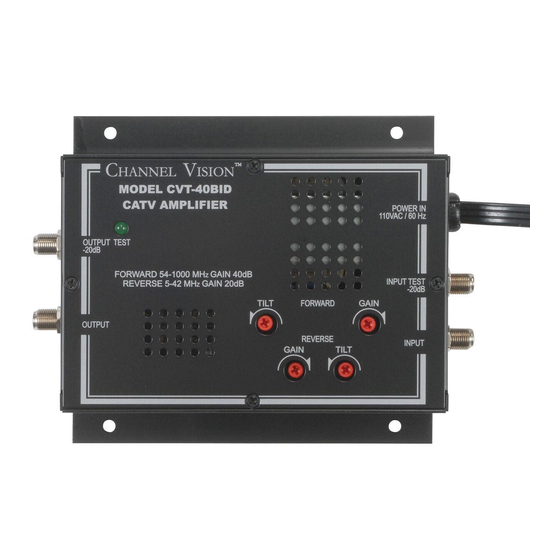

MODEL CVT-40BID
CATV AMPLIFIER
OUTPUT TEST
-20dB
FORWARD 54-1000 MHz GAIN 40dB
REVERSE 5-42 MHz GAIN 20dB
OUTPUT
CVT-40BID
CATV Amplifier
T M
POWER IN
110VAC / 60Hz
INPUT TEST
-20dB
TILT FORWARD GAIN
MAX MAX
REVERSE
INPUT
GAIN TILT
MAX
