alfresco-heating.com
A PATIO HEATER LIKE NO OTHER
Please retain these instructions for future reference.
IMPORTANT:
The installer must leave these instructions with the owner.
Only those who are certified to do so should perform service on these heaters.
EVEN GLO Model No. GA201M
If you smell gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.
Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
An LP Cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
Improper installation, adjustment, alteration, service or
maintenance can cause injury, death or property damage. Read the
installation, operating and maintenance instructions thoroughly
before installing or servicing this equipment.
WARNING:
!
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent or home.
M
o
d
e
l
N
M
o
d
e
l
N

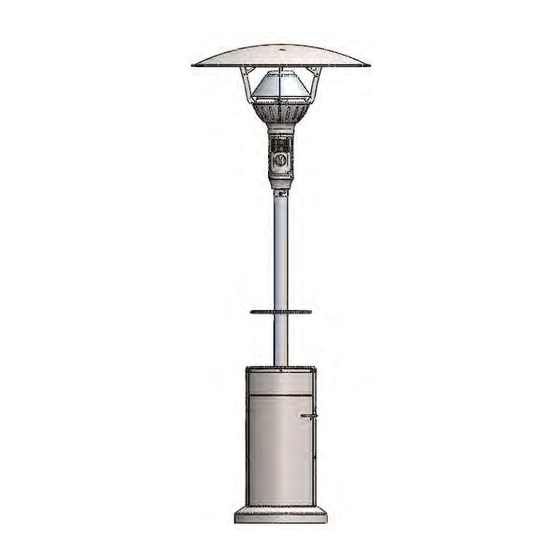

Infrared Outdoor Patio Heater
Manual for Installation, Operation & Maintenance
DANGER
WARNING:
WARNING:
FOR OUTDOOR USE ONLY
Page 1
888-Warm-Glo
o
.
G
A
2
0
1
M
o
.
G
A
2
0
1
M
Rev. Nov/09/2010
LT126
Advertisement
Table of Contents
Related Manuals for EvenGlo GA201M
Summary of Contents for EvenGlo GA201M
- Page 1 CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you. Never use this appliance in an enclosed space such as a camper, tent or home. LT126 EVEN GLO Model No. GA201M Page 1 Rev. Nov/09/2010...
-
Page 2: Table Of Contents
Maintenance and Trouble Shooting ................ 24 Maintenance ........................ 24 Replacement Parts ...................... 25 Functional Wiring Diagram ..................... 26 Care and Cleaning of Stainless Steel Patio Heater ............ 27 Parts Reference ........................ 28 Warranty ........................ 30 EVEN GLO Model No. GA201M Page 2 Rev. Nov/09/2010... -
Page 3: Caution And General Safety
• Cleaning of the appliance should only be done with non-combustible and non-corrosive cleaning agents. • DO NOT alter the heater in any way; this includes shortening the pole or removing the Base Body cover or Top Reflector. EVEN GLO Model No. GA201M Page 3 Rev. Nov/09/2010... - Page 4 • LP-Gas Cylinders must be stored outdoors in a well-ventilated area out of the reach of children. A disconnected cylinder must have dust caps tightly installed and must not be stored in a building, garage or any other enclosed area. Ensure the storage area meets all local fire & safety requirements. EVEN GLO Model No. GA201M Page 4 Rev. Nov/09/2010...
-
Page 5: Applicable Regulations
• Provided with a cylinder connection device compatible with a QCC1 connection (Quick Connect Coupling). Installation or repair of this heater should only be done by personnel qualified for the installation of powered gas appliances. (Certified by the local or national regulating body) EVEN GLO Model No. GA201M Page 5 Rev. Nov/09/2010... -
Page 6: Location Planning
Always allow room for removal of the Top Reflector and Burner head for maintenance purposes. The heater aspirates (needs) air for combustion. Do not locate heater where there are severe draft conditions or airflow restrictions to the Burner head of the heater. EVEN GLO Model No. GA201M Page 6 Rev. Nov/09/2010... -
Page 7: Specifications / Details
Applicable Regulations section of this manual. The Cylinder and its connector fittings must be maintained in good condition. Gas & Power Specifications Maximum Fire Rate: 46,000 BTU/hr Gas Manifold Pressure: 11” W.C. Ignitor Electric Supply: One (1) “AA” Battery Maximum Inlet Gas Supply Pressure: 250psi EVEN GLO Model No. GA201M Page 7 Rev. Nov/09/2010... -
Page 8: Clearance To Combustible Materials
CLEARANCE TO COMBUSTIBLES SIDE MODEL NO. SIDES BELOW BELOW GA201M 18" 22" 33" Combustible materials are considered to be wood, compressed paper, plant fibres, plastic, Plexiglas or other materials capable of being ignited and burned. Such materials shall be considered combustible even through flame-proofed, fire-retardant treated or plastered. -
Page 9: Installation Instructions
Base Support Pillars & Counterweight Pole Neck Outer Shield - With Hardware attached Note: Remove plastic covering before lighting the heater Wheels - With Hardware attached Pole Assembly Shield Support Arms (4) - With Hardware attached EVEN GLO Model No. GA201M Page 9 Rev. Nov/09/2010... - Page 10 #10 x 1 1/2” Wood Screw (3) heater to wooden deck. COMPLETE ARTS IST IS LOCATED IN THE Maintenance and Trouble Shooting SECTION OF THIS DOCUMENT Packaged Separately: Reflector Table (Optional) Note: Remove plastic covering before lighting the heater EVEN GLO Model No. GA201M Page 10 Rev. Nov/09/2010...
-
Page 11: Assembly Of Outdoor Patio Heater
2. Connect the Wheel Mounting Bracket to the base using two (2) screws and nuts attached. Insert the screws through the Base of the Heater into the Wheel Mounting Bracket, so the nuts are visible. EVEN GLO Model No. GA201M Page 11 Rev. Nov/09/2010... - Page 12 Floor / Ground. Screws Base Bracket Base Bracket 4. Assemble the Pole and the Base Support Pillars together using six (6) M8-1.25 x 90 mm Hex Head Carriage Bolts provided. EVEN GLO Model No. GA201M Page 12 Rev. Nov/09/2010...
- Page 13 Slide the Table down over the top of the Pole, position it in place 8” (200 mm) up from the Base Cover. Secure by tightening the screw(s) of the Table Clamp around the inside neck of the Table and the Pole so that the Table will not move. 200 mm EVEN GLO Model No. GA201M Page 13 Rev. Nov/09/2010...
- Page 14 Install all four (4) Support Arms. 7. Insert the Outer Shield into the four (4) Shield Support Arms. Make sure to remove (or peel off) the plastic covering before assembly. EVEN GLO Model No. GA201M Page 14 Rev. Nov/09/2010...
- Page 15 9. Remove the three (3) screws in the Base of the Pole Neck piece. Insert the Pole Neck into Pole. Secure the Pole Neck using the three (3) screws which were removed earlier. Insert Pole Neck into Pole as shown Align Viewing Holes before tightening screws Remove Scews from Pole Neck EVEN GLO Model No. GA201M Page 15 Rev. Nov/09/2010...
- Page 16 Secure the Burner Head to the Pole Neck using the three (3) screws which were removed from the Burner. Insert Burner head into pole Remove Screws Tighten Screws back from Burner Head to Burner Head BURNER EVEN GLO Model No. GA201M Page 16 Rev. Nov/09/2010...
- Page 17 This heater will not operate at an inclined position. Ensure the heater is in the upright position, and should not be positioned on an incline. Your Patio heater is now assembled and is ready to connect to your LP-Gas Supply Cylinder. EVEN GLO Model No. GA201M Page 17 Rev. Nov/09/2010...
-
Page 18: Connecting The Lp-Gas Supply
1. Attach the LP-Gas Cylinder to the Tank Base Retainer using the Cylinder Retention Screw. Make sure the LP-Gas cylinder is in the upright position. Keep gas cylinder in Upright Position at ALL times Cylinder retention screw EVEN GLO Model No. GA201M Page 18 Rev. Nov/09/2010... - Page 19 Make sure door is shut and stays shut at all time and is not in pedestrian pathway. • Move Heater to desired location. • Secure the Base Body to the floor. • Perform a Leak Test to check the Gas Hose Assembly connections for any gas leaks. EVEN GLO Model No. GA201M Page 19 Rev. Nov/09/2010...
-
Page 20: Position / Move The Heater
Wheel / roll Heater to new location and return Base to ground. Ensure Heater is on level ground and stable in new location. 5. If the Heater is going to be operated at the new location, the “Installation Instructions 6. Secure the Heater” procedure must be completed. EVEN GLO Model No. GA201M Page 20 Rev. Nov/09/2010... -
Page 21: Secure The Heater
Drill 3 - Pilot Holes Secure using Wood Screws in Wood Screw Pilot hole drill size: Wood Deck pilot holes aligned with Base Hardwood = 7/64" #10 x 1 " Brackets Softwood = 3/32" EVEN GLO Model No. GA201M Page 21 Rev. Nov/09/2010... -
Page 22: Testing / Commissioning
After passing the Leak Test your patio heater is now ready for use. Caution: Heater will produce smoke the first time it is lit. This is normal. Make sure NOT to light the heater in an enclosed area. EVEN GLO Model No. GA201M Page 22 Rev. Nov/09/2010... -
Page 23: Operating Instructions
2. Turn propane tank gas valve clockwise to ’OFF' position when heater is not in use. WARNING: Improper Lighting, Shutting Down can cause injury, death or property damage. Read the Lighting and Shutting Down instructions thoroughly before operating or servicing this equipment. EVEN GLO Model No. GA201M Page 23 Rev. Nov/09/2010... -
Page 24: Maintenance And Trouble Shooting
2. Check condition of the Burner, especially the integrity of the flame screen. 3. Inspect condition of spark and sense electrode. Check for cracks in ceramic insulators or excessive corrosion. 4. Inspect condition of high tension lead to spark rod EVEN GLO Model No. GA201M Page 24 Rev. Nov/09/2010... -
Page 25: Replacement Parts
Ensure sense electrode is not corroded, is not grounded or has a cracked insulator. Electrode position is radially across face of burner. Replacement Parts • Use only manufacturer recommended replacement parts. • For a complete list of replacement parts contact your dealer. EVEN GLO Model No. GA201M Page 25 Rev. Nov/09/2010... -
Page 26: Functional Wiring Diagram
888-Warm-Glo Maintennce and Trouble Shooting Functional Wiring Diagram Pilot Assembly Ignition Valve Switch EVEN GLO Model No. GA201M Page 26 Rev. Nov/09/2010... -
Page 27: Care And Cleaning Of Stainless Steel Patio Heater
Non-halogenated solvents, such as Acetone, Methyl Alcohol, and Ethyl Alcohol work well. The preferred solvent is one that does not contain Chlorine. Cleaning should always be followed by rinsing with CLEAN HOT WATER and drying with clean towels. EVEN GLO Model No. GA201M Page 27 Rev. Nov/09/2010... -
Page 28: Parts Reference
Table (Optional Black) ES115 Manual (with Battery) Base Cover ES098 LT126 not shown Seasonal Cover Pole Neck ES100 EH019 (Optional not shown) IR Energy reserves the right to make improvements to its product line without notice. EVEN GLO Model No. GA201M Page 28 Rev. Nov/09/2010... - Page 29 888-Warm-Glo Maintennce and Trouble Shooting EVEN GLO Model No. GA201M Page 29 Rev. Nov/09/2010...
-
Page 30: Warranty
Warranty MODEL No. GA201M - INFRARED OUTDOOR PATIO HEATER WARRANTY The Manufacturer warrants to the original owner that the burner and the emitter which have a replacement warranty period of 5 years and that product will be free of defects in material and workmanship for a period of 1 year from the date of purchase, for all other parts.
