DANGER: If you smell gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odour continues,
immediately call your gas
supplier.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury
or property damage. Read the installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapours and liquids in the
vicinity of this or any other appliance. An LP cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
*
FOR OUTDOOR USE ONLY: The evenGLO® heater has been approved for indoor use in non-
residential applications. (See page 8 for details) for natural gas units ONLY!
IMPORTANT: The installer or seller must leave these instructions with the owner. Only those who are
certified to do so should perform service on these heaters.
This appliance, its related accessories and by-product of
operation, contain chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
Please retain these instructions for future reference.
563 Barton Street
Stoney Creek ON L8E 5S1 Canada
www.irenergy.ca
LT071 Oct. 4, 2018
Series GA301
Models U, T, H, M, MP
WARNING:
California Proposition 65

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA301M and is the answer not in the manual?

Questions and answers

Related Manuals for EvenGlo GA301M

Summary of Contents for EvenGlo GA301M

  • Page 1 An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance. FOR OUTDOOR USE ONLY: The evenGLO® heater has been approved for indoor use in non- residential applications. (See page 8 for details) for natural gas units ONLY! IMPORTANT: The installer or seller must leave these instructions with the owner.

  • Page 2: Table Of Contents

    Table Of Contents CAUTION AND GENERAL SAFETY ....................3 PRE-INSTALLATION OVERVIEW ....................4-8 ........................4,5,6,7 ECEIVE ........................8 OUNTING LATE ATTERN ........................... 9 EED TO UPPLY LOCATION PLANNING ......................10 ........................10 ENERAL OCATION AYOUTS ..........................10 AFETY EQUIREMENTS SPECIFICATIONS / DETAILS ....................11-16 ........................

  • Page 3: Caution And General Safety

    Caution and General Safety CAUTION: FIRE OR BURN INJURY HAZARD  At all times maintain clearance to combustible materials as further specified in this manual. Failure to do so can result in serious fire hazard.  Never operate heaters in atmosphere containing flammable vapours or combustible dusts.

  • Page 4: Pre-Installation Overview

    Pre-installation Overview What You Will Receive:  evenGLO GA301 Models U & T: Even-GLO™ Series GA301 Page 4 Oct. 4, 2018...
  • Page 5 Pre-installation Overview What You Will Receive:  evenGLO GA301 Model MP: Even-GLO™ Series GA301 Page 5 Oct. 4, 2018...
  • Page 6 Pre-installation Overview What You Will Receive – CONTINUED:  evenGLO GA301 Model MP: Hose Kits DESCRIPTION PART # EG065 – 12’ HOSE KIT EG066 – 15’ HOSE KIT   **NG REGULATOR QD SOCKET – ½” – NG  ...
  • Page 7 Pre-installation Overview Hardware Kits MODEL GA301-MP: EH001: Top Reflector to Support Arms (Blue Tape)  EH027: 1/4”-20 x 1/2” S.S Carriage Bolt (x4), CH143: 1/4” S.S Flat Washer (x4), EH028 1/4”-20 S.S Acorn Nut (x4) EH084: Housing Top Cover to Base Housing (Yellow Tape) ...

  • Page 8: Mounting Plate Hole Pattern

    Pre-installation Overview Mounting Plate Hole Pattern (Full size) 6.30" Ø0.42" Even-GLO™ Series GA301 Page 8 Oct. 4, 2018...

  • Page 9: What You Need To Supply

    Pre-installation Overview What You Need to Supply 1. Heater anchoring hardware for either the moveable base, flange base mount or the hanging model. 2. Materials necessary to construct a concrete base for floor mounted model for GA301-U & GA301-T only. 3.

  • Page 10: Location Planning

    Location Planning General Location Layouts One Even-GLO heater, at high fire and in windless conditions, has a comfort radius of about twelve feet (24 ft. circle). A series of heaters providing area heat should be placed about 14-20 feet apart. Wind protection has an important influence on the body’s ability to retain radiant heat.

  • Page 11: Specifications / Details

    Specifications / Details Equipment Dimensions Floor mount models Model GA301 Model GA301-T Even-GLO™ Series GA301 Page 11 Oct. 4, 2018...

  • Page 12: Hanging Model Ga301- H

    Specifications / Details Hanging model GA301- H 1.13" 17.95" Ø39.50" 47.98" 46.81" 6 Feet Minimum Clearance Below Even-GLO™ Series GA301 Page 12 Oct. 4, 2018...

  • Page 13: Floor Mount & Portable Models # Ga301- M & Ga301 - Mp

    Specifications / Details Portable model GA301- M & GA301- MP Model GA301-M Model GA301-MP Pole Hole Configuration Even-GLO™ Series GA301 Page 13 Oct. 4, 2018...

  • Page 14: Clearance To Combustibles

    Specifications / Details Clearance to Combustibles The following clearance data is based on a maximum limit of 90°F plus ambient temperature. Note with an ambient temperature of 70°F the surface temperatures at the clearance distances listed below could reach 160°F Care should be taken with placement of plastic or vinyl in the proximity of the heater as they tend to distort and soften at these temperatures.

  • Page 15: Installation / Code Requirements

    Specifications / Details Installation / Code Requirements Installation must comply with local building codes and/or, for the USA/National Fuel Gas Code, ANZI Z 223.1 (NFPA 54) and for Canada, CAN/CGA B149.1 and B149.2, National Gas and Propane Installation Code (latest editions). Appliance must be electrically grounded in accordance with local codes or, in their absence;...

  • Page 16: Power & Gas Specifications

    Minimum 10.8 ” W.C. Maximum 14.0 ” W.C. Propane Gas: Electric Supply: 24 VAC, 0.8A Models : GA301M & GA301MP High fire rate: Natural - 53,000 btuh Gas Supply Pressure: Natural Gas: Minimum 6.5 ” W.C. Maximum 14.0 ” W.C.

  • Page 17: Assembly & Installation Instructions

    Portable Models (GA301M & GA301MP) Secure Wheels to Bottom Base a) Flip Over Base b) Line-up holes and press Carriage Bolt through Wheel Bracket and Bottom Base. Place Lock Washer over threads of Carriage Bolt and hand tighten Nut. c) Tighten Nut with Wrench while making sure Carriage Bolt is properly secured and not spinning.
  • Page 18 Portable Models (GA301M & GA301MP) Secure Pole and Regulator Bracket to Bottom Base a) Flip Base right side up, remove Portable Base Housing and place Pole on the 4 threads of the Elevator Bolts. b) Line up Pole Flange indication dot with the Bottom Base indication dot. Slide bottom housing into place as shown.
  • Page 19 Portable Models (GA301M & GA301MP) Secure Pole Neck to Pole a) Slide rest of Bottom Housing Assembly down Pole b) Place Pole Neck in Pole, Line-up the 4 holes, place Button Socket Cap Screws into holes and place Internal S.S Lock Washer over threads inside Pole and hand...
  • Page 20 Portable Models (GA301M & GA301MP) Secure Heater Head to Pole Neck a) Place Heater Head on Pole Neck and line-up the holes. b) Hand tighten the 4 Button Socket Cap Screw into weld nuts on Heater Head. Tighten with Allan Key provided Even-GLO™...
  • Page 21 Portable Models (GA301M & GA301MP) Secure Top Reflector to Heater Head a) Peel plastic off 39” Top Reflector b) Place Top Reflector onto Heater Head and line-up 4 holes to 4 Arms of Heater Head. Place S.S Carriage Bolt through Arm and Top Reflector.

  • Page 22: Floor Mount

    Floor Mount Models (GA301-U & GA301-T) Floor Mount Mount pole base onto a concrete floor or cast concrete with a minimum below grade depth of 12” and having a 12” diameter. If forming concrete, cast in place appropriate passage for gas and control wires. Use minimum 3/8” x 5” 90° lag bolts or equivalent to mount heater base to the concrete base.
  • Page 23 Floor Mount Models (GA301-U & GA301-T) b. Arrange the burner head such that the wires and gas hose are arranged as illustrated. Feed a pull wire through the pole to assist in pulling the three power wires into the pole and through the junction box. Firmly tape the pull wire to the power wires.
  • Page 24 Floor Mount Models (GA301-U & GA301-T) c. Secure burner head to pole with three #10 screws provided. Even-GLO™ Series GA301 Page 24 Oct. 4, 2018...
  • Page 25 Floor Mount Models (GA301-U & GA301-T) d. Push the gas connection into the slot buy slightly pushing on the gas line through the electrical box. The gas fitting should be positioned as illustrated below. Even-GLO™ Series GA301 Page 25 Oct. 4, 2018...
  • Page 26 Floor Mount Models (GA301-U & GA301-T) e. Place gas connection cover onto the fitting and install the nut to fasten the cover assuring the nut is properly seated. See below. Even-GLO™ Series GA301 Page 26 Oct. 4, 2018...
  • Page 27 Floor Mount Models (GA301-U & GA301-T) f. Install reflector using the four carriage bolts, nuts and washers provided. g. Connect gas supply and electric power following all local codes. Pressure test all gas connections. Even-GLO™ Series GA301 Page 27 Oct. 4, 2018...

  • Page 28: Ceiling Mount

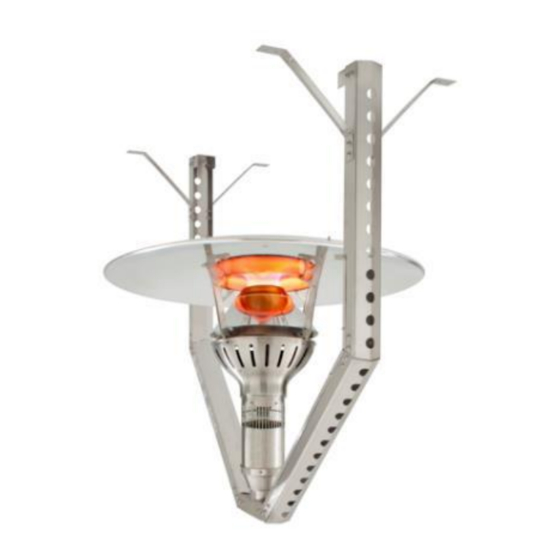

    Hanging Model GA301H Ceiling Mount Disconnect gas hose from reducing coupling. Connect Flared Elbow to reducing coupling and align elbow to point at a right angle to heater door opening. After inserting heater assembly into frame base, connect the Swivel Fitting on the opposite end of the gas hose to the Flared Elbow.
  • Page 29 Hanging Model GA301H 1. Assemble 4 gusset plates to the base as illustrated. Use 5/16” carriage bolts with washers and nuts. Even-GLO™ Series GA301 Page 29 Oct. 4, 2018...
  • Page 30 Hanging Model GA301H 2. Assemble angular arms to the base. 3. Assemble vertical arm to angular arm using two gusset plates and 5/16” carriage bolts with nuts and washers. Repeat this for the other side. Even-GLO™ Series GA301 Page 30 Oct.
  • Page 31 Hanging Model GA301H 4. Install mounting brackets on both sides with supplies hardware. 5. Mount the heater base assembly to the ceiling in the desired location keeping in mind clearance to combustibles. Use minimum 6 #14 x1.5” wood screws. Caution: To prevent possible head injury provide pedestrian protection if lowest point of the heater is less than 7 feet in height.
  • Page 32 Hanging Model GA301H 6. Install heater assembly into the base assembly allowing the gas line and wires through the bottom. Use three #8-32 type F to secure heater head to the base. Even-GLO™ Series GA301 Page 32 Oct. 4, 2018...
  • Page 33 Hanging Model GA301H 7. Feed the gas line and control wires through either side of the assembly. Even-GLO™ Series GA301 Page 33 Oct. 4, 2018...
  • Page 34 Hanging Model GA301H 8. Install the heat shields as illustrated using the #8-32 type F screws supplied. 9. Install the bottom cover to complete the assemble using 4 #8-32 type F screws. Even-GLO™ Series GA301 Page 34 Oct. 4, 2018...
  • Page 35 Hanging Model GA301H 10. Installation of reflector support brackets. 1. After putting on heat shields, screw reflector brackets to frame upright. 2. Secure reflector by screwing the reflector to the reflector support brackets. Even-GLO™ Series GA301 Page 35 Oct. 4, 2018...
  • Page 36 Installation Instructions(Models GA301-M, GA301-MP) Position / Move the Heater 1. Ensure Wheels are properly connected to the Bottom Base. 2. Move the Heater by handling ONLY the Pole. It may take two people to manoeuvre the Heater safely depending on the size / strength of the person(s).

  • Page 37: Secure Heater

    Installation Instructions(Models GA301-M, GA301-MP) Secure the Heater 1. Ensure that the Hold-Down Brackets are properly installed. 2. The type of Foundation Fastener required depends on the type of Floor / Ground that the Heater is located on. Prepare the Floor / Ground as detailed in Table A at all three bracket locations.
  • Page 38  Lighting instructions for models GA301, GA301-H & GA301-T: 1. Open manual gas supply valve (ensure gas supply lines have been purged). 2. Turn on switch to energize electric supply. 3. The electronic control module will time out 45 sec. 4.

  • Page 39: Lighting & Shutdown Instructions

    Lighting & Shutdown Instructions Lighting Instructions for Models GA301-M & GA301-MP Caution: Heater will produce smoke the first time it is lit. This is normal. Make sure NOT to light the heater in an enclosed area. Lighting Instructions for Models GA301-U, GA301-T, & GA301-H 1.
  • Page 40 Lighting & Shutdown Instructions Shut down instructions for models GA301-M & GA301-MP 1. Turn the ignition knob clockwise into the OFF position to turn off the gas flow and extinguish the burner flame. 2. For longer periods of shutdown, also turn off manual gas supply valve. Shut Down Instructions for Models GA301-U, GA301-T &...

  • Page 41: Maintenance & Troubleshooting

    Maintenance & Troubleshooting Instructions  Maintenance instructions for models GA301, GA301-H & GA301-  Before performing any service shut off gas and electric supply.  Check condition of burner, especially integrity of flame screen.  Inspect condition of spark and sense electrode. Check for cracks in ceramic insulators or excessive corrosion.

  • Page 42: Models Ga 301- M & Ga 301- Mp

    Maintenance & Troubleshooting Instructions  Maintenance instructions for models GA301-M & GA301-MP: Maintenance  Follow Caution and General Safety rules at all times before / during use.  Before performing ANY service to the heater, shut off the gas supply, disconnect the regulator from the LP-Gas Cylinder and remove the battery from the ignitor module.
  • Page 43 Maintenance & Troubleshooting Instructions Remove the Gas Hose Assembly from the Pole to inspect and Leak Test the entire hose and all connections. Repair / replace as required. 2. Check condition of the Burner, especially the integrity of the flame screen. 3.
  • Page 44 Maintenance & Troubleshooting Instructions 3. Flame lights but will not stay lit:  Be sure to hold knob in for one minute or longer to allow sensor to get hot.  Ensure there is no overpowering wind.  Ensure sense electrode is not corroded, is not grounded or has a cracked insulator.
  • Page 45 Maintenance & Troubleshooting Instructions  Next in order, for more aggressive cleaning, a small amount of vinegar can be added to the scouring powder. Cleaning should always be followed by rinsing with CLEAN HOT WATER and drying with clean towels. Fingerprints and Stains: Fingerprints and mild stains resulting from normal use are the most common surface contaminates.

  • Page 46: Parts List

    Parts List Item Description Part # Reflector package ES041 Gas Hose Assembly EG004 Emitter ES011 Flame Sensor EE002 Spark Electrode EE001 Electronic Control Module EE009 Orifice - NAT Gas EG002 Orifice - LP Gas EG022 Gas Valve - NAT Gas EG001 Gas Valve - LP Gas EG023...

  • Page 47: Models Ga 301-U, Ga 301-T

    Parts List Item Description Part # Item Description Part # Reflector package ES041 Gas Hose Assembly 63” EG014 Orifice (NAT) EG002 Gas Hose Assembly 75” EG027 Orifice (LPG) EG022 Emitter ES011 Gas Valve (NAT) EG001 Flame Sensor EE002 Gas Valve (LPG) EG023 Spark Electrode EE001...

  • Page 48: Models Ga 301- M & Ga 301- Mp

    Parts List Model GA301-M & GA301-MP Part Item Description Part No. Qty Item Description Housing Top Pole Neck ES170* ES171* Cover Pole Assembly ES171* Emitter ES011 Burner Housing Knob EH016 ES185* Assembly Wheel Assembly EH029 Main Housing ES161* Arm Assembly ES119 Tip Switch EE034...
  • Page 49 Parts List Even-GLO™ Series GA301 Page 49 Oct. 4, 2018...

  • Page 50: Wiring Diagrams

    Wiring Diagrams Internal Wiring GA301, GA301-T, GA301-H Red 24 VAC (Lo) Green Green Green Yellow Green Gas Valve Blue Yellow Green Pink LEDs Blue 24 VAC (Hi) Spark Electrode If any of the original wire as supplied with the Si l'un des fils électriques original fournis avec cet appareil doit etre remplacé, le remplace avec appliance must be replaced, it must be replaced un fil électrique fait de la température évaluation...
  • Page 51 Wiring Diagrams External Wiring Options GA301, GA301-T, GA301-H Option 1: Using 2 Toggle Switches Hi (on) Patio Heater Low (On) 24 Volt Blue Transformer Patio 24 Volt 115 VAC Heater Grounded Supply Supply Green **Ensure A Good Ground Source Back Box Front Cover Option 2: Using 2-Stage Switch...
  • Page 52 Internal Wiring GA301-M, GA301-MP Even-GLO™ Series GA301 Page 52 Oct. 4, 2018...

  • Page 53: Warranty

    Warranty SERIES GA301, GA301-T, GA301-H, GA301-M AND GA301-MP EVEN-GLO PATIO HEATER WARRANTY THE MANUFACTURER WARRANTS TO THE ORIGINAL OWNER THAT THE EMITTER OF THE PRODUCT WILL BE FREE OF DEFECTS IN MATERIAL AND WORKMANSHIP FOR A PERIOD OF 3 YEARS FROM THE DATE OF PURCHASE.
