EvenGlo GA201-M2 Series Installation, Operation And Service Instructions

Infrared outdoor patio heater
Hide thumbs Also See for GA201-M2 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

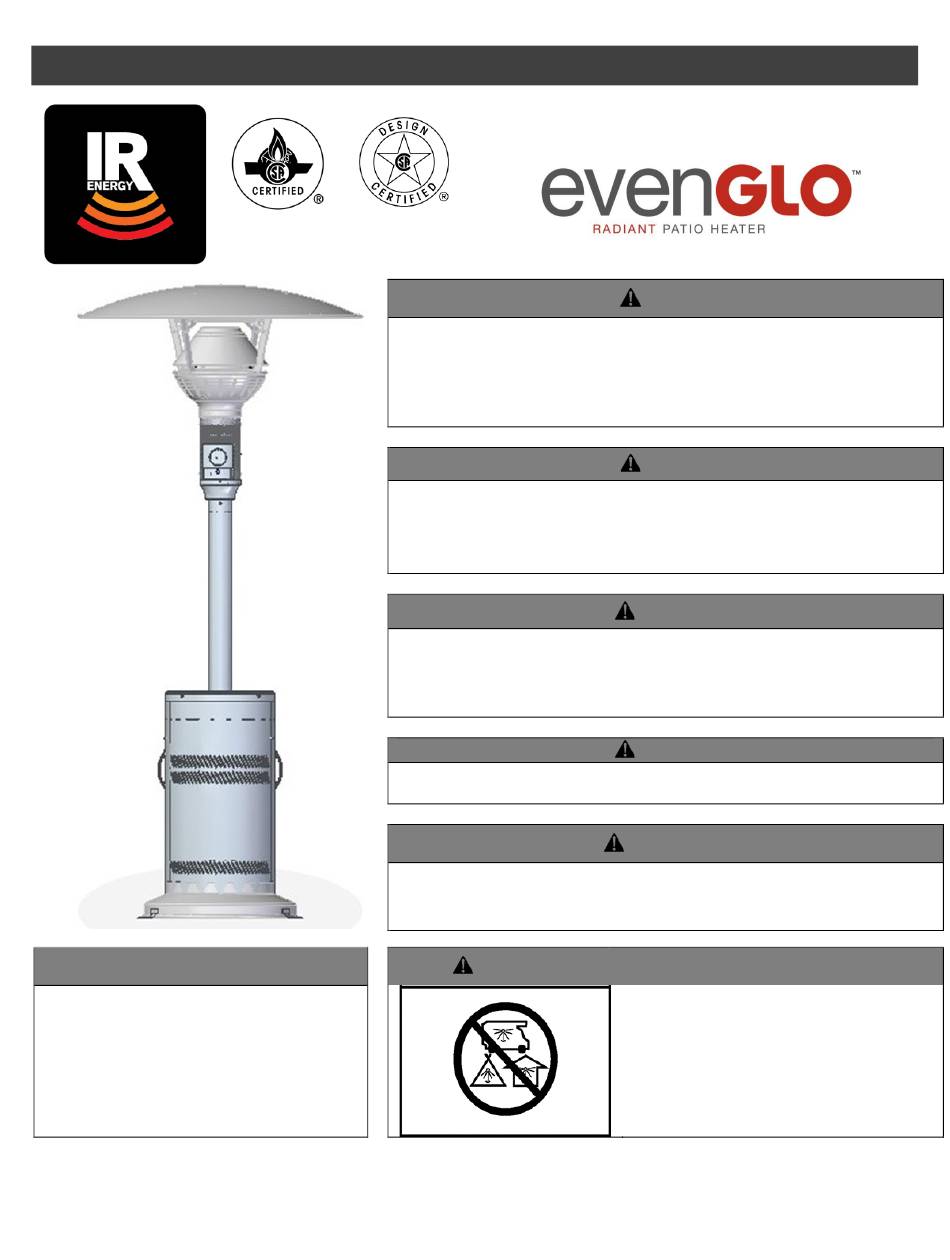

INFRARED OUTDOOR PATIO HEATER
WARNING
CALIFORNIA PROPOSITION 65
This heater, its related accessories and
by-product of operation, contain
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm. For
more information go to
www.P65Warnings.ca.gov.
__________________________________________________________________________________________________________________
Series GA201-M2
Installation, Operation and Service Instructions
If you smell gas:
1. Shut off gas to heater.
2. Extinguish any open flame.
3. If odor continues, keep away from the heater and immediately
Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other heater.
A propane Cylinder not connected for use shall not be stored in the
vicinity of this or any other heater.
Improper installation, adjustment, alteration, service or maintenance
can cause injury, death or property damage. Read the installation,
operation and maintenance instructions thoroughly before installing or
servicing this equipment.
Please retain these instructions for future reference.
The installer must leave these instructions with the owner. Only those
who are certified to do so should perform service on these heaters.
Canada: 563 Barton St., Stoney Creek, Ontario L8E 5S1
www.irenergy.ca
SERIES GA201-M2
call your gas supplier or fire department.
FOR OUTDOOR USE ONLY
IMPORTANT
DANGER
CARBON MONOXIDE HAZARD
This heater can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill
you.
Never use this heater in an enclosed
space such as a camper, tent or home.
1
DANGER
DANGER
WARNING
WARNING
LT126 June 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA201-M2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for EvenGlo GA201-M2 Series

Summary of Contents for EvenGlo GA201-M2 Series

  • Page 1 Installation, Operation and Service Instructions INFRARED OUTDOOR PATIO HEATER SERIES GA201-M2 DANGER If you smell gas: 1. Shut off gas to heater. 2. Extinguish any open flame. 3. If odor continues, keep away from the heater and immediately call your gas supplier or fire department. DANGER Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other heater.

  • Page 2: Table Of Contents

    Contents CONTENTS ..................................2 CAUTION AND GENERAL SAFETY ............................3 INTRODUCTION.................................. 5 APPLICABLE REGULATIONS ..............................5 LOCATION PLANNING................................. 6 ....................................... 6 ENERAL ..................................6 AFETY EQUIREMENTS SPECIFICATIONS ................................. 7 ................................. 7 QUIPMENT IMENSIONS ..............................7 AS AND OWER PECIFICATIONS LP-G ..............................

  • Page 3: Caution And General Safety

    CAUTION AND GENERAL SAFETY CAUTION - FIRE OR BURN INJURY HAZARD WARNING Do not install or place on a table or on an inclined surface, make sure the installation surface is level before installing the heater. • Assembly & Installation will require the efforts of Two individuals, it is not recommended for only One Person to attempt complete assembly of the Heater.
  • Page 4 • This heater shall be used only in a well-ventilated area/space and shall not be used in a building, garages or any other enclosed area. • Never go over connections looking for leaks with a lighted match, cigarette lighter, or any other flame. •...

  • Page 5: Introduction

    INTRODUCTION IR Energy is a company in the infrared heating industry founded on the principles of product quality and customer commitment. Quality commitments are evidenced by superior design, a regard for design detail and an upgrade of materials wherever justifiable. Customer commitment is apparent through our ready responses to market demands and a never- ending training and service support program for and through our distributor network.

  • Page 6: Location Planning

    LOCATION PLANNING General One Even-GLO heater, at high fire and in windless conditions, has a comfort radius of about twelve feet (24 ft. circle). A series of heaters providing area heat should be placed about 14-20 feet apart. Wind protection has an important influence on the body’s ability to retain radiant heat. Use natural or newly built wind barriers where possible, such as existing buildings, shrubbery or tree lines and fences.

  • Page 7: Specifications

    SPECIFICATIONS Equipment Dimensions Figure 1: GA201-M2 Gas and Power Specifications Maximum Fire Rate: 46,000 BTH/h Gas Manifold Pressure 9.8” WC Ignitor Electric Supply One (1) “AA” Battery Maximum Inlet Gas Supply Pressure: 250 psi Weight without Propane Tank 140 lbs Propane-Gas Cylinder Compatibility To be used ONLY with 20lb Propane-Gas Cylinders with a maximum capacity of 8kg (20lb) which meet the criteria described in the Installation Codes section of this manual.

  • Page 8: Clearance To Combustible Materials

    Clearance to Combustible Materials The following clearance data is based on a maximum limit of 90°F (50°C) plus ambient temperature. Note with an ambient temperature of 70°F the surface temperatures at the clearance distances listed below could reach 160°F. Care should be taken with placement of plastic, or vinyl in the proximity of the heater as they tend to distort and soften at these temperatures.

  • Page 9: Installetion Instructions

    INSTALLATION INSTRUCTIONS Shipping Crate Contents Base with Case Cover, Pole, and Counterweight Heater Head with Gas Hose QTY (1) QTY (1) Wheels Top Reflector QTY (1) QTY (1) Regulator with Quick Disconnect QTY (1) __________________________________________________________________________________________________________________ Series GA201-M2 LT126 June 2021...

  • Page 10: Hardware Kits

    Hardware Kits Heater Head Assembly Base Body, Base Cover, Pole & Counterweight Reflector EH001 Contents Base Body: • Bungee (EH044) – Used to Secure Supply Tank • Wheel Kit (EH066) – Used to Mount Wheels Wheel Assembly 1/4”-20 x 1/2” S.S Button Socket (x2) 1/4”-20 S.S Nuts (x2) 1/4”...
  • Page 11 The hose will slide down the pole until the head assembly sits in the pole neck. Figure 3: Heater Base and Heater Head Assemblies 3. Rotate the head assembly so the EvenGlo label on the heater head lines up with the EvenGlo label on the Main Base.
  • Page 12 5. Please refer to the illustrations below for clarity in this step: a. Lift the pole assembly with the head attached, upwards. The housing top cover will come with it as there is packing underneath to hold the top cover in place while you lift the pole up. b.
  • Page 13 Figure 6: Attach Wheel Assembly to Main Base 9. Locate the reflector and hardware bag EH001. Install the Top Reflector on to the Shield Support Arms of the heater using the carriage bolts (4) with nuts provided. Insert the bolts up through the shield support arms and then through the top reflector.

  • Page 14: Connecting The Gas Supply

    Connecting the Gas Supply WARNING For use ONLY with 20# Propane-Gas Cylinders (with a maximum capacity of 8kg [20lb] ) constructed and marked in accordance with national codes: U.S. Department of Transportation (“DOT” approved) in the USA, and Standard for Cylinders, Spheres and Tubes for Transportation of Dangerous Goods and Commission, CAN/CSA-B339 (“TC”...

  • Page 15: Position / Move Heater

    3. Locate the regulator assembly. Look over the assembly to make sure no damage has occurred during shipping or handling. Attach the regulator assembly to the male quick connect on the fuel supply hose as shown in Figure 10. Figure 10: Connect Regulator Assembly to Fuel Supply Hose 4.

  • Page 16: Secure The Heater (Optional)

    3. Move the Heater by handling ONLY the Pole or the Base Body. It may take two people to manoeuvre the Heater safely depending on the size / strength of the person(s). 4. Tip the Heater backwards at an angle to / overtop of the wheels until the Base no longer touches the ground. Wheel / Roll the heater to the desired location and return base to the ground.

  • Page 17: Testing / Commissionng

    TESTING / COMMISSIONING Leak Test Method WARNING Never go over connections looking for leaks with a lighted match, cigarette lighter, or any other flame. Perform the leak test before initial lighting and when connecting a new Propane-Gas Cylinder. A complete gas tightness check must be performed at the installation on site due to possible mishandling in shipment or excessive pressure being applied to the heater 1.

  • Page 18: Electrical Wiring And Battery

    ELECTRICAL WIRING AND BATTERY Wiring Diagram Figure 13: GA201-M2 Wiring Diagram Replacing the Battery 1. Remove the Housing Service Cover to access the Ignitor Module Knob. 2. Turn the ignitor module knob counter-clockwise to unscrew it. 3. Pull out the battery while taking note of the polarity orientation (+ / -). 4.

  • Page 19: Operating Instructions

    OPERATING INSTRUCTIONS Lighting 1. Open the propane cylinder valve. 2. Push and turn the ignition knob counter-clockwise from the OFF position to the PILOT position (lightening symbol). To start the gas flow and sparking, push the knob inwards. Keep pressing until the pilot is lit and stays lit (for approximately 30-45 seconds to heat up the thermocouple) and then release the pressure from the knob.

  • Page 20: Maintenance & Troubleshooting

    Maintenance & Troubleshooting Maintenance CAUTION Always follow all Caution and General Safety rules before / during use. • Before performing ANY service to the heater, shut off the gas supply, disconnect the • regulator from the Propane-Gas Cylinder and remove the battery from the ignitor module. If any maintenance issues are found place the heater OUT OF SERVICE until it has been •...

  • Page 21: Care And Cleaning

    Cleaning should always be followed by rinsing with CLEAN HOT WATER and drying with clean towels. Preventative Care and Maintenance EH105 – Custom Dome Cover – A custom protective cover designed to increase the life of your EvenGlo. Item is not included with purchase, please contact your Representative for further details.

  • Page 22: Troubleshooting

    Troubleshooting No Gas Supply at Burner • Ensure manual shut off valve is in proper position. • Ensure there is pressure and flow at inlet to gas valve. • Ensure propane gas cylinder has fuel in it. • When using the heater with a fresh fuel supply, pilot may take some time to light because the light needs to purge all the air out of the line first.

  • Page 23: Replacement Parts

    REPLACEMENT PARTS Part Reference Item Description Part No. Pole Neck RP-ES170* Housing Top Cover RP-ES171* Pole Assembly RP-ES172* Emitter RP-ES011 Knob RP-EH016 Handle RP-EH046 Wheel Assembly RP-EH066 Burner Housing Assembly ES185* Arm Assembly w/Shield Support RP-ES145S Main Housing RP-ES161* Main Base RP-ES168* Tip Switch RP-EE034...
  • Page 24 Part Reference __________________________________________________________________________________________________________________ Series GA201-M2 LT126 June 2021...

  • Page 25: Warranty

    WARRANTY SERIES GA201-M2 INFRARED OUTDOOR PATIO HEATER WARRANTY THE MANUFACTURER WARRANTS TO THE ORIGINAL OWNER THAT THE EMITTER OF THE PRODUCT WILL BE FREE OF DEFECTS IN MATERIAL AND WORKMANSHIP FOR A PERIOD OF 3 YEARS FROM THE DATE OF PURCHASE. ALL OTHER PARTS OF THE PRODUCT WILL HAVE A WARRANTY PERIOD OF 1 YEAR.
