CL5000 Programming & Operating Instructions
CODES
The factory set Master Code is #1234. This should be changed immediately after installation (see program 10).
The Master Code and optional Sub-Master Code always start with the # prefix. This puts the lock into Programming Mode.
When the Master or Sub-Master Code is entered 3 times consecutively without performing a programming function, a penalty
time of 10 seconds is activated. This feature is to discourage the casual use of Master Codes as User Codes.
The length of the Master Code determines the length of the User Code and the Sub-Master Code.
If the Master Codes is changed to another of the same length then the Sub-Master and all User Codes will be retained.
If the Master Code is change to one of a different length then the Sub-Master and User Codes will be deleted.
Codes may be 4, 5 or 6 digits long.
The lock memory will store 80 different User Codes, each identified by a User Code ID – 01 to 80.
The lock memory can store 10 different One Time User Codes. Each One Time User Code is identified by a One Time User
Code ID – 81 to 90.
When in Programming Mode a Program Code must be entered within 5 seconds, otherwise the Red light will flash and beep
and the lock will revert to normal.
If a programming mistake is made wait 5 seconds, the Red light will flash and beep and the lock will revert to normal.
A new code will be rejected if it is already in the memory.
OPERATING INSTRUCTIONS
The CL5000 lock has a 12 button keypad including * and # buttons.
UNLOCK TIME
The factory pre-set UNLOCK time is 4 seconds. This may be changed – (see Program 06).
PENALTY TIME
Entering 3 incorrect User codes will cause the lock to suspend activity for a penalty time of 10 seconds.
KEY OVER-RIDE
The Key-in-Lever allows the lock to be opened for Security and Housekeeping Functions. Turn the key clockwise 90° and
operate the lever handle to open the door.
CODE FREE MODE
Using the Master or the Sub-Master Code, programs 08 and 09 will put the lock into, and out of, Code Free Mode. In Code Free
Mode battery power is not being used.
If the Master and Sub-Master Codes cannot be issued for this purpose it is possible to use the Key-in-Lever to put the lock into
Code Free Mode. This requires that the cylinder tailpiece be changed according to the instruction. (SEE LATER)
REVERTING TO FACTORY SETTING
If the Master Code is not known the lock memory can be cleared and made to revert to the factory Master Code as follows:
1. Remove one battery.
2. Press and hold the '0' button, replace the battery, the Blue LED will flash twice, beep will sound twice, then release the '0'
button.
3. Within 3 seconds press the '*' button 3 times. The Blue LED will light continuously for 7 seconds and then 2 beeps will sound.
The lock will have reverted to the factory set Master Code, #1234, and all other settings will be erased.
REMOTE RELEASE OPTION

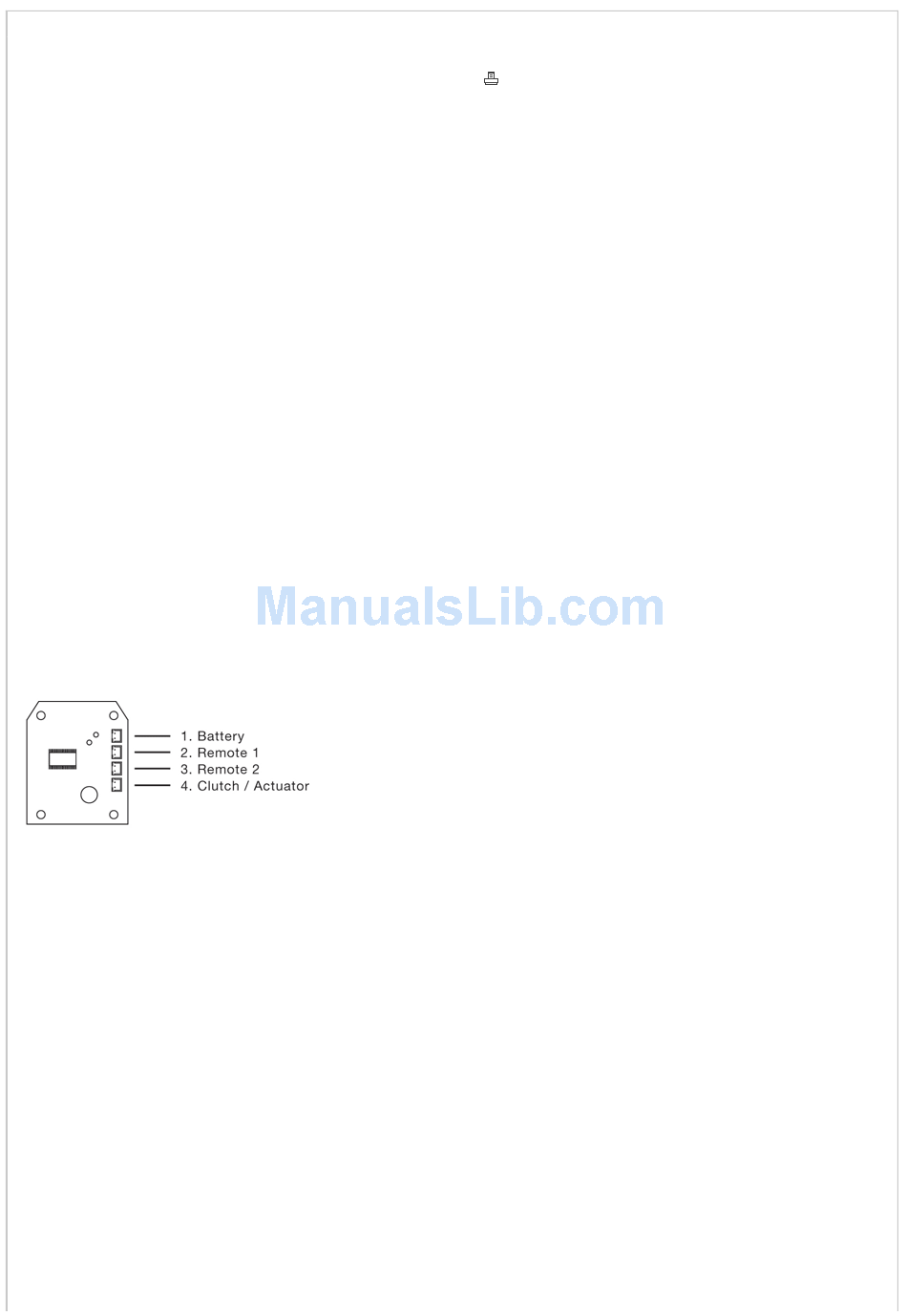

The lock has 2 sets of terminals for remote release, labelled REM 1 and REM 2 on the printed circuit board in the front housing.
Cables are provided with the lock for these connections
REM 1 is intended for use when there is a need to allow a visitor to open the door after having been identified by intercom or by
sight from within. REM 1 would be connected to a pushbutton on a reception desk, or to the appropriate button on an intercom.
Pushing the button would cause the Blue LED to light and would release the lock for the normal set time.
REM 2 is intended for use when there is a need for the door to be release by an alarm system, such as a fire alarm. This enables
emergency personnel to rapidly check that no one is trapped / overlooked in classrooms, wards, guest rooms, etc during a fire
drill. When activated by an alarm REM 2 will maintain the unlocked condition for 30 minutes. During this time the red LED will flash
once every second and beep to indicate the unlocked condition. The lock will automatically revert to normal after 30 minutes. If
required Program 11 can be used to revert the lock to normal before the 30 minute period has finished.
LOCKED / UNLOCKED STATUS INDICATION
Using Program 15 the Blue and Red LED's can be programmed to indicate locked and unlocked status.
BATTERY POWER
These Electronic Codelocks should provide well in excess of 200,000 openings from 4 x AA cells rated at 2,900 mAh.
LOW BATTERY
When the battery power is low the Red LED will flash 5 times before the Blue LED will flash 5 times before the Blue LED flashes to
signal acceptance of the code. Batteries should be changed as soon as this happens.
REMOVAL OF FRONT-LOAD CYLINDERS TO CHANGE KEY BY PASS FUNCTION, TO REPIN CYLINDERS, OR *TO
REPLACE WITH CYLINDERS BY A DIFFERENT MANUFACTURER.
1. Remove handle and cylinder
