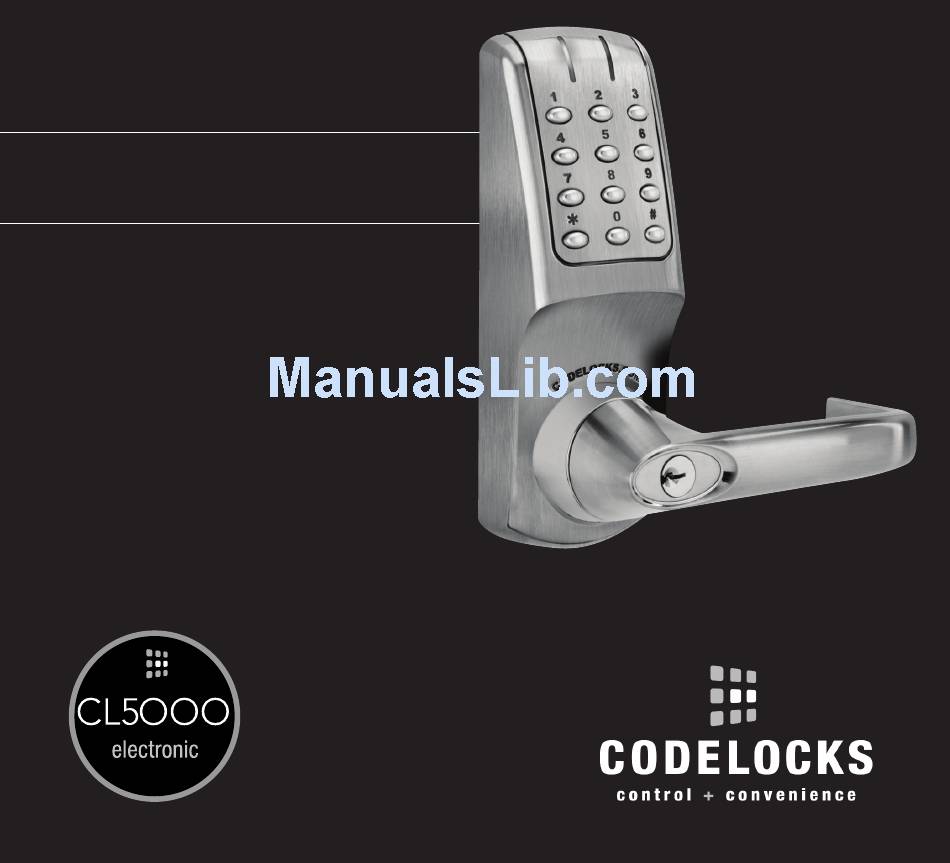

- Page 1 INSTALLATION INSTRUCTIONS...
- Page 2 Box Contents Check the contents of the box are correct according to the model 5010 5010BB 5020 Front Plate Back Plate Back to Back Fixing Plates Lever Handles Gaskets (x2) Sprung Spindle Sprung Spindles (x3) – 15/26/60mm ( ”/ ”/ 2 ”) 1.5v AA Batteries (x4), (5010BB 8 x 1.5v AAA)
- Page 4 OPERATIONS CHECK SPECIAL FIXING NOTE AUDIT TRAIL OPTION You should familiarise yourself with the operation of the lock and If the CL5010AT is ordered, it will be supplied with parts 18,19, 20 check that all parts work properly. and 21 from the contents list. The Data Transfer Cable (18) will be fixed to the PCB in position 5, Remove the battery cover from the back plate and install the 4 x AA see Fig 1 below.
- Page 5 REM 1 is for connection to a reception desk CL5010, CL5010BB LATCH FUNCTION push button or a door intercom system. Outside handle turns freely without Pressing the button will cause the Blue LED to operating the latchbolt. When the code flash on the lock and release the lock for the is entered the Blue LED flashes and the pre-set time.
- Page 6 INSTALLATION OF CL5010 LOCKS Take time to be precise 1 Lightly mark a height line on the edge and both faces of the door and on the door jamb, to indicate the top and finish the job of the lock when fitted. Crease the template along one of the dotted lines (60mm (2 ”) or 70mm (2 ”) quicker.
- Page 7 See page 8 for CL5010BB and page 10 for CL5020 Installation Instructions 12 Apply the front plate over the spindle, passing the cable tube 7 Screw the cable tube into the front plate, passing the cable through the through the door and the latch support post through the tube.
- Page 8 INSTALLATION OF CL5010BB INSTALLATION OF CL5010 LOCKS CONTINUED 14 Connect the cables, storing any excess cable within the door. 1 Lightly mark a height line on the edge Then install the batteries. and both faces of the door and on the door jamb, to indicate the top of the lock 15 Fit the back plate over the fixing plate using the 4 socket head screws.
- Page 9 5 Fix the latch with the wood screws, with the bevel towards the 12 Fit the cylinder cover and lever handle to both keypads. doorframe. 13 Enter the factory Master Code #1234 to test the lock on both 6 Fit the latch support post on the inside of the outer front plate, in sides of the door.
- Page 10 C Set screws accurate in relation to each other, and in relation to the door. door to improve accuracy. Do not D Hole for Codelock fixing bolt drill right through the door as this E Double-throw Do not install the lock where it will involve cutting into a joint will damage the door when the drill 22mm (7/8”) deadbolt...
- Page 11 6 Check that the 2 screws have been removed from the follower 12 Position the front plate over the spindle passing the cable through the on the outside of the door. DO NOT remove the screws from door. Fit the inside fixing plate over the spindle, compressing the spring both sides of the follower.
- Page 12 ANSI/BHMA A156.2 A156.25 CODELOCKS LTD UK Tel: +44 (0) 1635 239645 Fax: +44 (0) 1635 239644 sales@codelocks.co.uk Helpline, service & spares FREEPHONE 0800 393 405 CODELOCKS INC US Tel: +1 714 979 2900 Fax: +1 714 979 2902 sales@codelocks.us www.codelocks.com www.codelocks.com II-CL5000-v2:0913...
