HD IP Conference Phone
CP860
Quick Start Guide (V72.2)
www.yealink.com
Applies to firmware version 37.72.0.2 or later.

Advertisement

Table of Contents
loading

Related Manuals for Yealink CP860

Summary of Contents for Yealink CP860

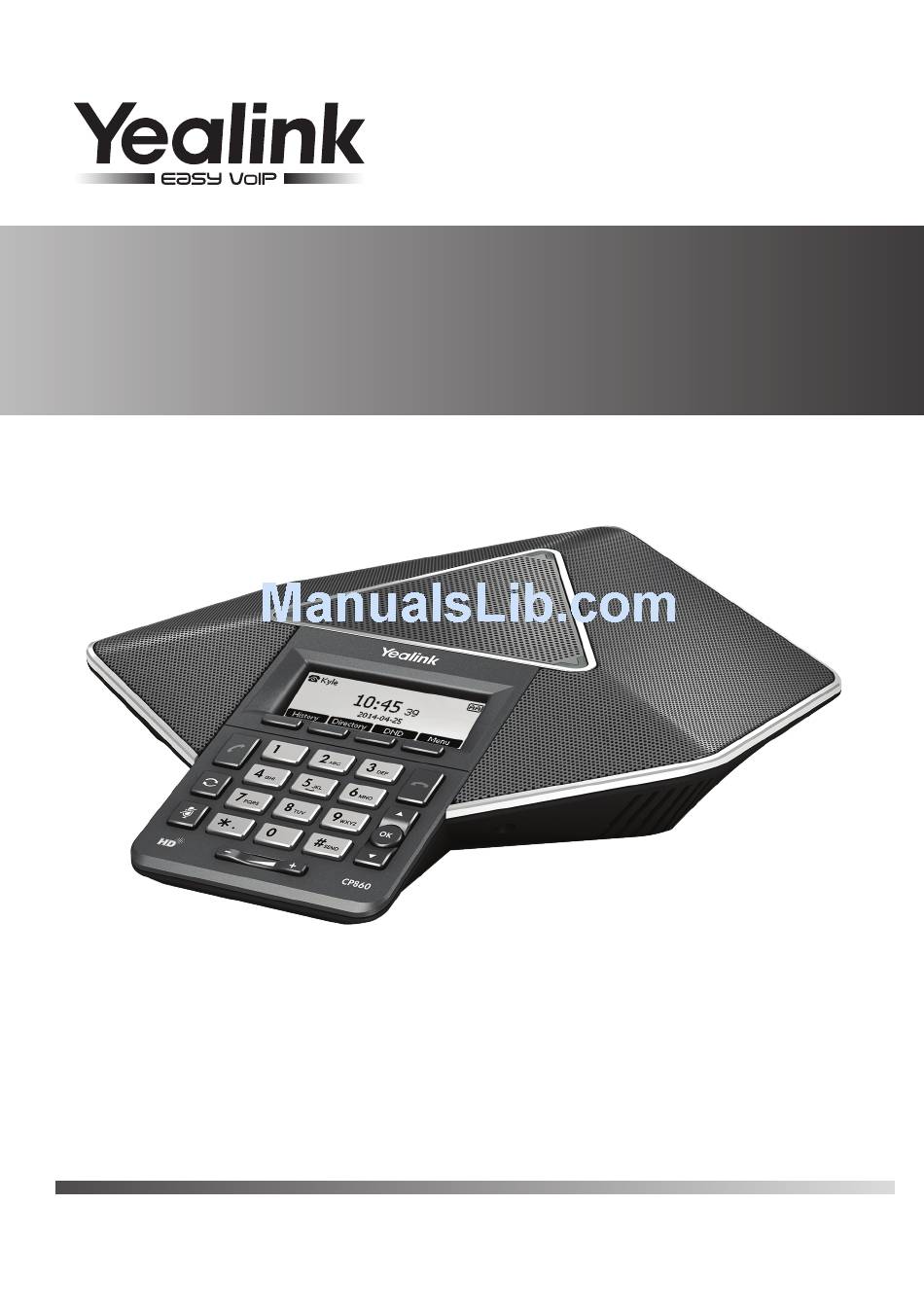

  • Page 1 HD IP Conference Phone CP860 Quick Start Guide (V72.2) www.yealink.com Applies to firmware version 37.72.0.2 or later.

  • Page 2: Packaging Contents

    Packaging Contents The following items are included in your package. If you find anying missing, contact your system administrator. Ethernet Cable Mobile Device Cable (3.5mm Jack) Power Adapter IP Conference Phone Quick Start Guide Assembling the Phone 1.Connect the network and power, as shown below : You have two options for network and power connections.
  • Page 3 3. Connect the optional expansion microphone, as shown below: Note: Up to two expansion microphones can be connected to an IP conference phone. 4. Connect the optional PC or mobile device, as shown below: Mobile/PC Startup After the IP phone is connected to the network and supplied with power, it automatically begins the initialization process.

  • Page 4: Hardware Component Instructions

    Hardware Component Instructions Internet Port USB Port DC5V Port PC/Mobile Port Security Slot MIC Port Speaker LED Indicator Microphone LCD Screen Soft Keys On-hook Key Off-hook Key Up Navigation Key Redial Key OK Key Mute Key Down Navigation Key Volume Key Keypad Configuring Your Phone Configuring via web user interface...

  • Page 5: Basic Call Features

    Resume soft key. Local Conference CP860 can host up to five-way conference call with other parties. To create a three-way local conference: 1. Press the Conf soft key during an active call. The call is placed on hold.
  • Page 6 4. Press the Conf soft key when the party answers. 5. Repeat the steps 1 to 4 to join more parties in the established conference call. During the conference call, you can do the following: Press the Hold soft key to place the conference on hold. Press the Split soft key to split the conference call into individual calls on hold.
  • Page 7 Customizing Your Phone Customizing Your Phone Call History 1. Press the History soft key when the phone is idle. 2. Select the desired call history list and press the Enter soft key. 3. Press to select an entry from the list, you can do the following: Press the Send soft key to call the entry.
  • Page 8 About us Founded in 2001, Yealink, the global TOP 3 SIP phone provider and a leading provider of VoIP Phone and IP communication solutions, has been focusing on VoIP products characterized by reliable quality, easy deployment and affordable price for more than a decade.
