INSTALLING THE VODEXL10 VIDEO SYSTEM - WIRING DIAGRAM

1. Connect the dome light wires as shown on pages 10 and 11 of this
install manual.
2. Connect the input power wires of the 6 pin Power/Dome Light
Harness to the vehicle's electrical system by tapping into an
accessory hot line and a good ground. NOTE: This connection
must be fused at the vehicle connection point.
3. Plug the 6 pin Power/Dome Light Harness into the unit in the
location shown.

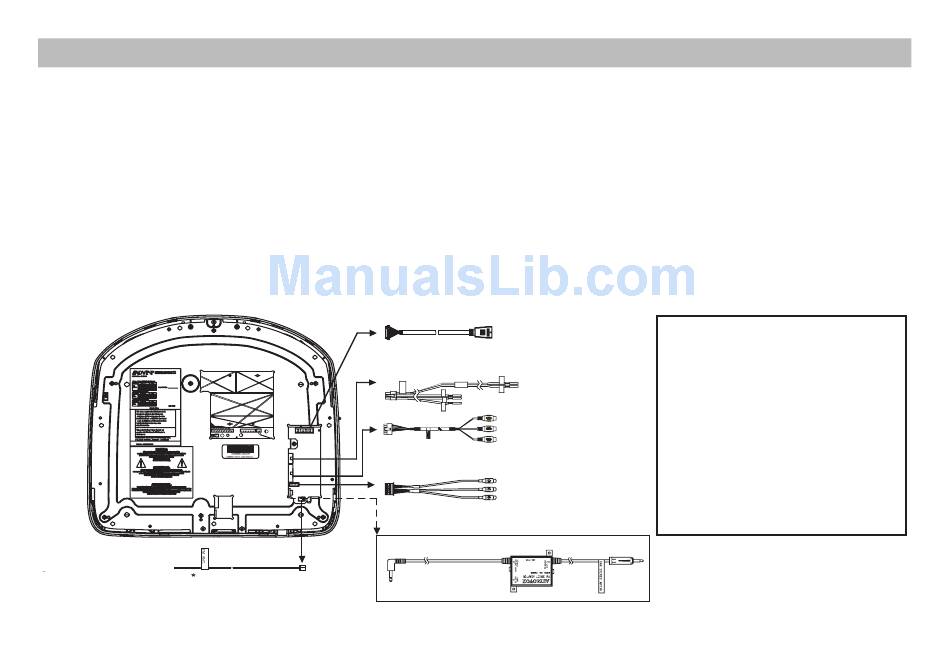

WIRING DIAGRAM
* 2 Pin FM Antenna
4. If connecting to an external source, plug in the 12 pin AV Input
Harness (P/N 112-4094) in the location shown. Connect RCA
cables (not supplied) to the external source's AV Output.
5. If connecting to a second screen AUX Input or head unit AUX
Input, plug in the 5 pin AV Output Harness (P/N 112-4260) in the
location shown and connect RCA cables (not supplied) to the AV
Input of the second screen or head unit.
6. Verify all system functions before permanently mounting the unit.
*NOTE: The antenna has been designed for optimal performance. When
installing the unit, position the antenna for best reception.
HDMI 2 Pigtail Harness (optional)
(HDIP1)
6 Pin Power/Dome Light Harness
(P/N 112-4270)
12 Pin AV Input Harness
(P/N 112-4094)
5 Pin AV Output Harness
(P/N 112-4260)
Optional Relay Box FMDIRB
13
A/V Sources:
• DVD / CD
• USB Input
• HDMI1 Input
• HDMI2 Input
• Media (e.g. iPod, iPhone, iPad)
• AV - Signal Harness (P/N 112-4094)
to the 3 RCA Jack Pigtail is used for
AV Input.
• AUX - AUX Input
• DTV
• Game
