Serial Number _________ Date of Purchase __________Point of Purchase _________________
The serial number is located on the shipping carton and on a label affixed to the upper housing.
Unpacking your HV:
HV1000
One (1) HV1000 Whole House Ventilator
One (1) White Metal Grille w/(6) Screws
One (1) Package of Foam Gasket
One (1) Electrical Box Cover w/(2) Screws
One (1) Wall Switch (SPST)
Four (4) #8x3/4 Screws
One (1) Grounding Screw (green)
The Best Location for your HV:
home. Above a central hallway or at the top of a stairwell will provide the best airflow. The fan can be mounted vertically.
► Make sure that there aren't any pipes, wires, rafters or air conditioning or heating ducts running through the space
where the HV will be installed and that the doors will open into an unoccupied area.
► Make sure that you have adequate exhaust area out of your attic. This can be accomplished with a combination of roof,
ridge, soffit or gable end vents or other attic exhaust points. The HV1000 requires a minimum of 2 square feet and the
HV1600 requires 3.5 square feet of clear exhaust area. Allow 50% loss of clear area for louvers and screens
► Make sure that there is enough clearance above the fan for the doors to open. The minimum requirement for the HV
with R22 insulating doors is 11" and 12" is required for models with R38 insulating doors.
WARNING
To reduce the risk of Fire, Electric Shock, or Injury to persons, observe the following:
Use this unit in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.
Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and
standards, including fire rated construction.
Before servicing or cleaning unit, switch power off at service panel and lock service panel to prevent power from being
switched on accidentally. When the service disconnecting can not be locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities.
Never place a switch where it can be reached from a tub or shower.
Do not use this fan over cooking appliances.
Do not use this fan over a tub or shower.
Do not use this fan with any solid state speed control device.
CAUTION: For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
Tamarack Technologies, Inc.• 320 Main Street • Buzzards Bay, MA 02532
508-759-4660 • 800-222-5932 • Fax 508-759-6001
PLEASE LEAVE WITH HOMEOWNER
Read all instructions carefully before installing your HV
When you have unpacked your HV carefully you will find the following:
The HV should be installed in your attic in a central location within your

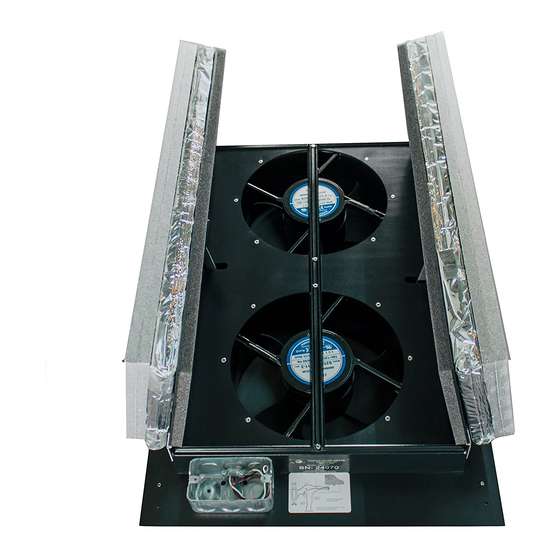

Whole House Ventilators

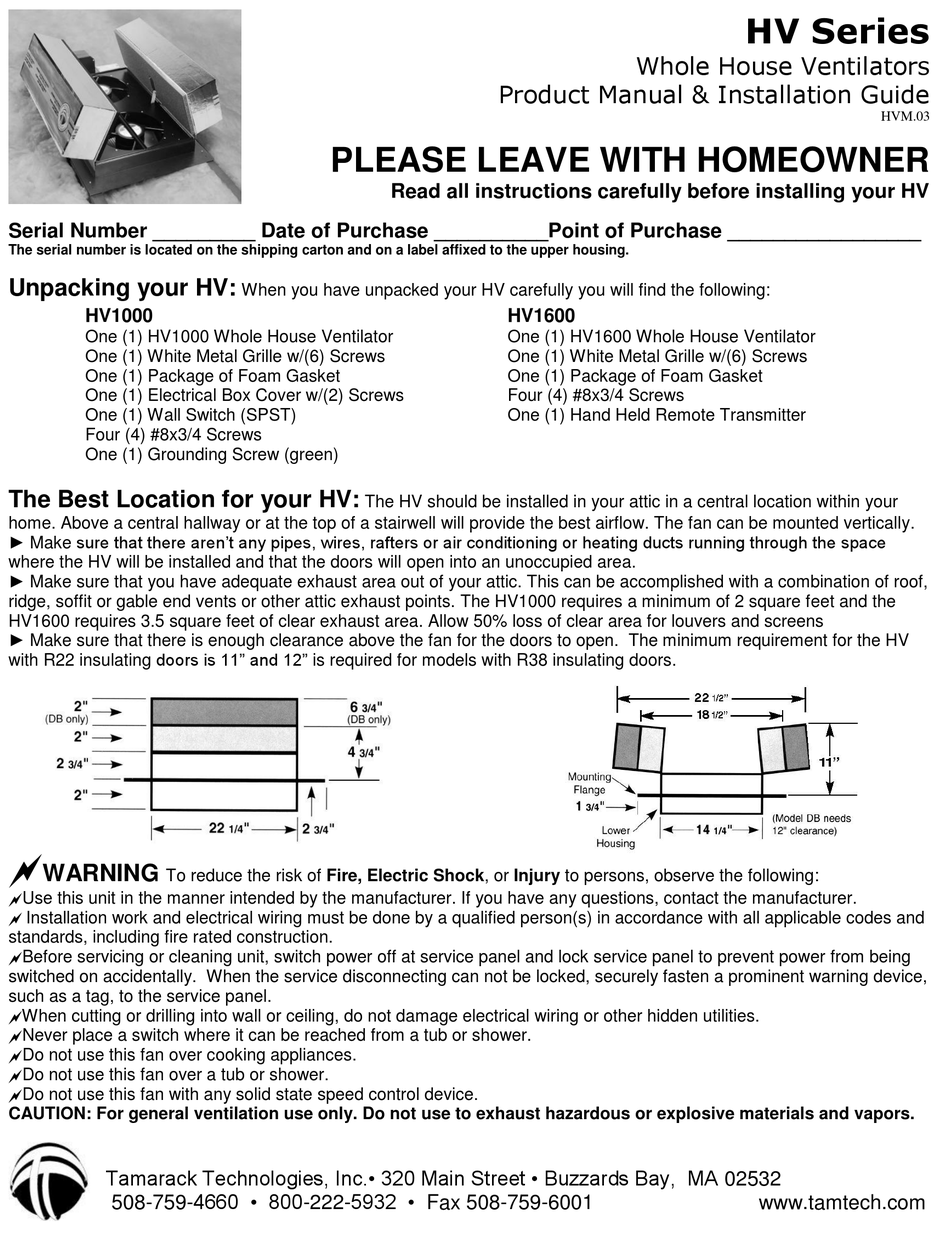

Product Manual & Installation Guide
HV1600
One (1) HV1600 Whole House Ventilator
One (1) White Metal Grille w/(6) Screws
One (1) Package of Foam Gasket
Four (4) #8x3/4 Screws
One (1) Hand Held Remote Transmitter
HV Series
HVM.03
www.tamtech.com
