ALL WEATHER VENTILATOR
TC1000

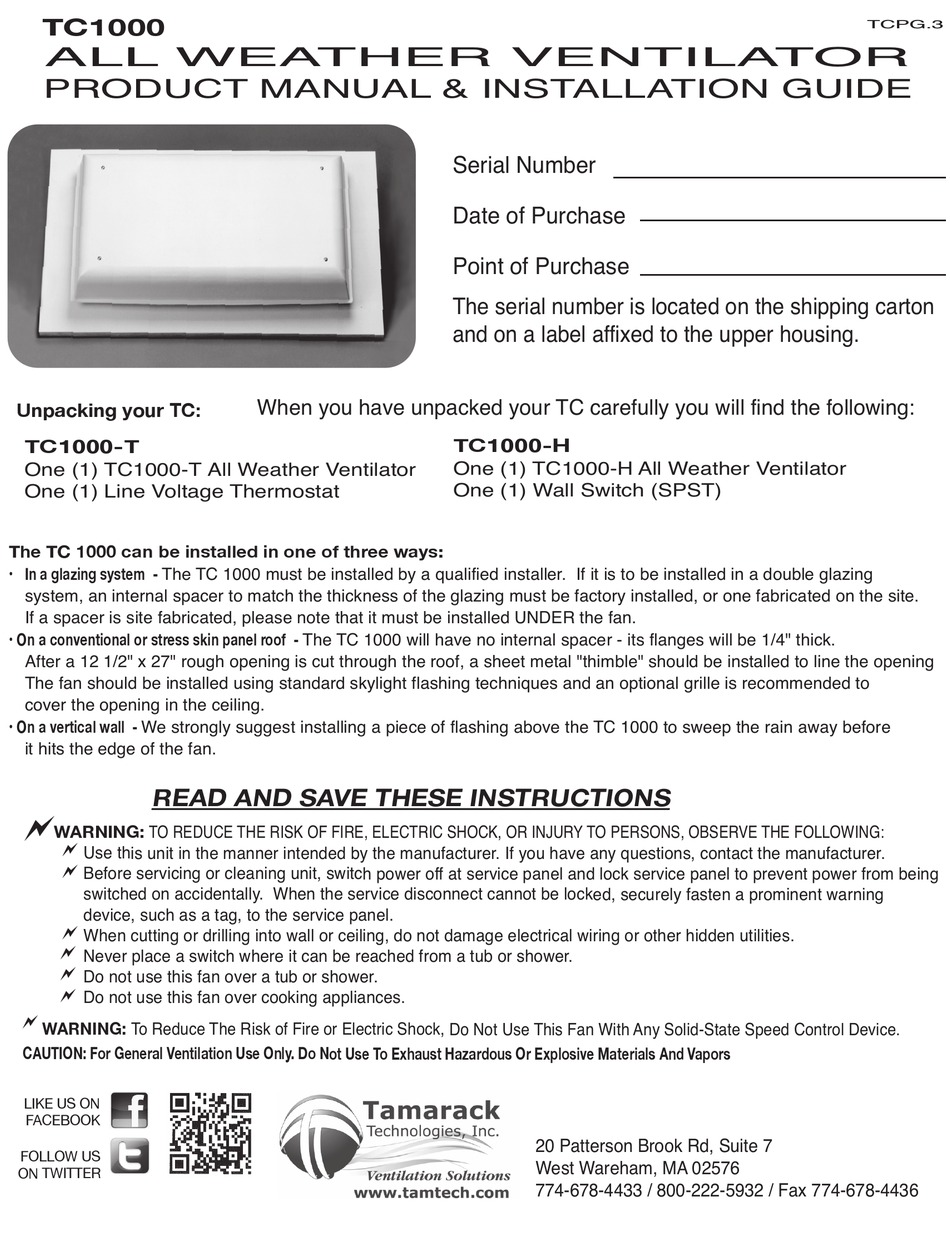

PRODUCT MANUAL & INSTALLATION GUIDE
Unpacking your TC:
One (1) TC1000-T All Weather Ventilator
TC1000-T
One (1) Line Voltage Thermostat
• In a glazing system - The TC 1000 must be installed by a qualified installer. If it is to be installed in a double glazing
The TC 1000 can be installed in one of three ways:
system, an internal spacer to match the thickness of the glazing must be factory installed, or one fabricated on the site.
If a spacer is site fabricated, please note that it must be installed UNDER the fan.
• On a conventional or stress skin panel roof - The TC 1000 will have no internal spacer - its flanges will be 1/4" thick.
After a 12 1/2" x 27" rough opening is cut through the roof, a sheet metal "thimble" should be installed to line the opening
The fan should be installed using standard skylight flashing techniques and an optional grille is recommended to
cover the opening in the ceiling.
• On a vertical wall - We strongly suggest installing a piece of flashing above the TC 1000 to sweep the rain away before
it hits the edge of the fan.
READ AND SAVE THESE INSTRUCTIONS
When you have unpacked your TC carefully you will find the following:
Serial Number
Date of Purchase
Point of Purchase
The serial number is located on the shipping carton
and on a label affixed to the upper housing.
One (1) TC1000-H All Weather Ventilator
TC1000-H
One (1) Wall Switch (SPST)
20 Patterson Brook Rd, Suite 7
West Wareham, MA 02576
774-678-4433 / 800-222-5932 / Fax 774-678-4436
TCPG.3
Advertisement
Related Manuals for Tamarack Technologies TC1000
Summary of Contents for Tamarack Technologies TC1000
- Page 1 The serial number is located on the shipping carton and on a label affixed to the upper housing. When you have unpacked your TC carefully you will find the following: Unpacking your TC: One (1) TC1000-H All Weather Ventilator One (1) TC1000-T All Weather Ventilator TC1000-H TC1000-T...
- Page 2 1. Create a box to hold the unit (Fig. 1). 2. Remove the sheathing that covers the box. 3. Attach TC1000, screwing through the mounting flange. 4. Install exterior finish materials over the mounting flange. Note: additional flashing may be required above the unit to divert rain.
- Page 3 Important - Wiring the TC is different than a normal ON/OFF fan. The TC damper is motorized and requires a constant source of power; power to open and power to close. The TC1000-T comes with a wall mounted, line voltage thermostat. This thermostat is surface mounted and should be positioned at eye level.
-
Page 4: Troubleshooting
If, within the period of three years from the date of purchase, the TC 1000 (the Product) is defective LIMITED WARRANTY or malfunctions in normal home use, Tamarack Technologies, Inc. will repair or replace the Product, at its discretion. Customer is responsible for shipping charges.
