Tamarack Technologies HV1450 EVERGREEN Product Manual & Installation Manual

WHOLE hoUSE COMFORT VENTILATOR
PRODUCT MANUAL & INSTALLATION GUIDE
When you have unpacked
your HV1450 carefully you will
find the following:
The HV1450 is used to assist the natural cooling process in the house. When the outside temperature drops below
the inside temperature, the cooler outside air can be used to cool the house. The HV1450 will pull the cooler air from
the outside, through the house, up into the attic and push the hot air outside. The HV1450 is a fan product and will
not cool the house below the outside air temperature or create a noticeable breeze. The HV1450 can be used any
time, for as long as needed, to cool or change the air in the house.
you want to cool. Above a central hallway or at the top of a stairwell provide the best airflow. Cooler outside air should be
able to move through the window, the space that needs to be cooled, and exhaust out through the fan into the attic.
Read all instructions before installing
Make sure that there aren't any pipes, wires, rafters or air conditioning or heating ducts running through
the space where the HV1450 will be installed and that the damper will open into an unoccupied area.
Make sure that you have adequate exhaust area out of your attic. This can be accomplished with
a combination of roof, ridge or gable end vents. The HV1450 requires a minimum of 4 square feet of attic venting.
Some state and local electrical code require fan products to be installed by a licensed electrician.
Check with your local code officials before installation.
Please note the serial number, date of purchase, and the
point of purchase below for handy reference. The serial
number is located on a label affixed to the HV1450 next
to the junction/utility box
Serial Number
Date of Purchase
Point of Purchase

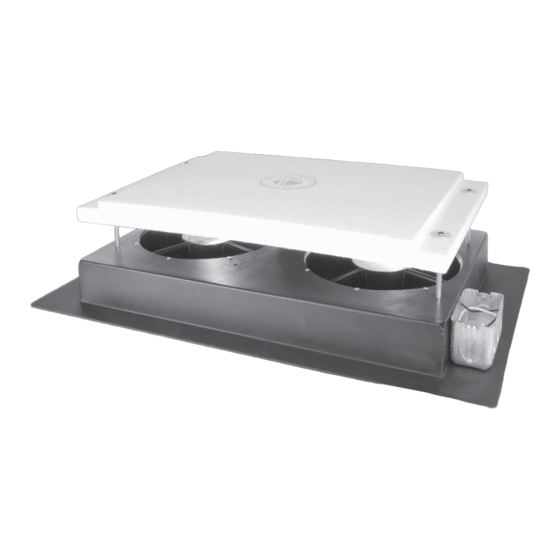

One (1) Whole House Comfort Ventilator
One (1) Damper
One (1) Metal electrical box cover with (2) screws
One (1) White Metal grille w/(6) screws
The HV1450 should be located as central as possible to the area that
.
Four (4) Hex Standoffs
Four (4) Flat Washers
Four (4) Philips Head Screws
Four (4) Lock Nuts
320 Main Street • Buzzards Bay, Ma 02532
508-759-4660 / 800-222-5932 / Fax 508-759-6001
