- Page 1 LGC5200A LGC5211A LGC5200-WALL LGC5201A LGC5212A LGC5202A LGC5200-PS LGC5210A LGC5210-PS PoE, PoE+ 10/100/1000 Media Converters Convert fiber to copper, plus provide PoE 15.5W of power or PoE+ 25.5W of power to PoE/PoE+ Devices (PD).
- Page 2 Trademarks Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. Page 2 724-746-5500 | blackbox.com LGC5200A...
- Page 3 FCC and IC RFI Statements FCC and Industry Canada RF Interference Statements This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such...
- Page 4 Certifications Certifications Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. This symbol indicates that the equipment should be disposed of separately from regular household waste.
-
Page 5: Table Of Contents
LED Operation—1x9 ................19 5.2.1 1x9 LED Functions ................19 5.2.2 RJ-45 LED Functions ................19 Troubleshooting ..................20 Contacting Black Box ................21 Fiber Optic Cleaning Guidelines ............22 Electrostatic Discharge Precautions ............ 23 LGC5200A 724-746-5500 | blackbox.com Page 5... -
Page 6: Part Numbers
MM850NM, AC 2220/550 M LGC5202A PoE 10/100/1000 Media Converter, SM 1310NM, SC 15 KM LGC5210A PoE+ 10/100/1000 Media Converter, SFP LGC5211A PoE+ 10/100/1000 Media Converter, SM 850 NM SC 220/550 M LGC5212A PoE+ 10/100/1000 Media Converter, SM 1310NM, SC 15KM... -
Page 7: Specifications
Chapter 1: Specifications 1. Specifications DC Input LGC5200 Series: 45 VDC to 57 VDC on DC terminal block 48 VDC on DC jack LGC5210 Series: 51 to 57 VDC on DC terminal block 51 to 57 VDC on DC jack AC Desktop LGC5200 Series: ... - Page 8 Chapter 1: Specifications Power Consumes less than 10W (heating) plus PSE power Characteristics The input power terminals are isolated from the unit chassis Threaded Chassis Grounding holes on unit for ground lug mounting LGC5200 Series IEEE802.3af Power to field < 15.4 watts Powered from external 48 VDC power jack ...
-
Page 9: Overview: About The Poe, Poe+ 10/100/1000 Media Converters

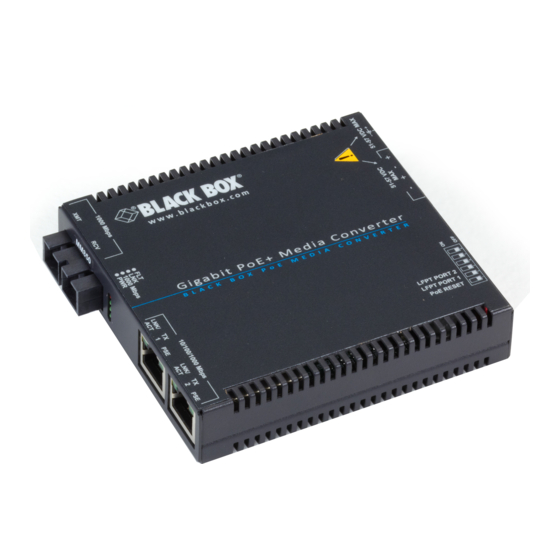

Chapter 2: Overview 2. Overview: About the PoE, PoE+ 10/100/1000 Media Converters The PoE, PoE+ 10/100/1000 Media Converters are solutions for private network applications that require power over Ethernet for locations inside buildings where PoE is required to power an Ethernet device. The LGC5200 Series offer one SFP or fixed fiber transceiver, 1x9, uplink for the network connection, one PSE 10/100/1000Base-T copper port that provides Power- over-Ethernet (IEEE802.3af), and one 10/100/1000Mbps copper port. -
Page 10: Configuration
Chapter 3: Configuration 3. Configuration 3.1 DIP Switch Configurations—LGC5200 Series, SFP Default Name Description Switch Setting ON forces Port 2, PSE/PoE, to PoE Reset OFF on LOS of fiber input ON enables LFPT for Port 1 LFPT Port 1 and the FX Port ON enables LFPT for Port 2 LFPT Port 2 and the FX Port... -
Page 11: Dip Switch Configurations-Lgc5200 Series, 1X9
Chapter 3: Configuration NOTE With the fault switches – PoE Reset, LFPT Port1 and LFPT Port 2, only one fault condition is recognized at a time. The first fault condition is in charge. So if TX Port1 has no link and then the FX Port loses link, the loses of TX Port 1 link causes the FX Port to disable transmit. -
Page 12: Dip Switch Configurations-Lgc5210 Series, Sfp
Chapter 3: Configuration 3.4 DIP Switch Configurations—LGC5210 Series, SFP Default Name Description Switch Setting ON forces Ports 1 & 2 PSE/PoE PoE Reset to OFF on LOS of Fiber input ON enables LFPT for Port 1 LFPT Port 1 and the FX Port ON enables LFPT for Port 2 LFPT Port 2 and the FX Port... -
Page 13: Dip Switch Configurations-Lgc5210 Series, 1X9
Chapter 3: Configuration NOTE With the fault switches – PoE Reset, LFPT Port1 and LFPT Port 2, only one fault condition is recognized at a time. The first fault condition is in charge. So if TX Port1 has no link and then the FX Port loses link, the loss of TX Port 1 link causes the FX Port to disable transmit. -
Page 14: Install The Poe, Poe+ 10/100/1000 Media Converters
Chapter 4: Install the PoE, PoE+ 10/100/1000 Media Converters 4. Install the PoE, PoE+ 10/100/1000 Media Converters CAUTION The PoE, PoE+ 10/100/1000 Media Converters are for inside-a-building installation only. These devices cannot be installed outside-a-building environment as they cannot meet the PoE requirements, per the PoE standard. If installing the device outside, serious damage can occur. -
Page 15: Dc Terminal Block Wiring Instructions
Chapter 4: Install the PoE, PoE+ 10/100/1000 Media Converters 4.1.1 DC Terminal Block Wiring Instructions The units can be powered via the DC terminal block. From a power source, connect to any one positive and any one negative terminal on the unit. Shown below is the LGC5210 Series with terminal block wiring: INSTALLATION TIP When using stranded wire, the leads must be tinned, and equivalent to a 16 AWG... - Page 16 Chapter 4: Install the PoE, PoE+ 10/100/1000 Media Converters VDC SELV source or 51 to 57 VDC SELV source for the LGC5200 Series or LGC5210 Series, respectively. The maximum terminal voltage is 57 VDC. Input wiring to terminal block must be routed and secured in such a manner that it is protected from damage and stress.
-
Page 17: Mounting Options
Chapter 4: Install the PoE, PoE+ 10/100/1000 Media Converters 4.2 Mounting Options The PoE, PoE+ 10/100/1000 Media Converters can be mounted with DIN Rail clips. Install screws into DIN Rail clips, which should be mounted perpendicular to the DIN Rail. Snap the converter onto the clips. To remove the converters from the DIN Rail, use a flat-head screwdriver into the slot to gently pry the converter from the rail. -
Page 18: Operation
Chapter 5: Operation 5. Operation 5.1 LED Operation—SFP The unit includes LEDs for three ports as shown below: 5.1.1 SFP LED Functions Function Glows red when a fault has been detected on the unit Glows green with a valid link 1000 Mbps Glows green when SFP is running at 1000Mbps Glows green when unit is powered... -
Page 19: Led Operation-1X9
Chapter 5: Operation 5.2 LED Operation—1x9 5.2.1 1x9 LED Functions Function Glows red when a fault has been detected on the unit Glows green with a valid link 1000 Mbps Glows green when running at 1000Mbps Glows green when unit is powered 5.2.2 RJ-45 LED Functions Function... -
Page 20: Troubleshooting
Chapter 6: Troubleshooting 6. Troubleshooting PWR LED glows green when the unit is powered. If this LED is not lit, contact Technical Support. Blinks green during fault conditions: 1 Hz flash indicates an overload or short; 4 Hz flashes indicates out of range voltage or over-temperature. The PSE LED should maintain solid green, to indicate consistent power. -
Page 21: Contacting Black Box
Chapter 7: Contacting Black Box 7. Contacting Black Box Black Box Customer Service Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Free technical support, 24 hours a day, 7 days a week. Call: 724-746-5500 or Fax: 724-746-0746... -
Page 22: Fiber Optic Cleaning Guidelines
2. Dust caps are installed at Black Box to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. -
Page 23: Electrostatic Discharge Precautions
Chapter 9: Electrostatic Discharge Precautions 9. Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products. 1. - Page 24 LGC5200A Rev. 1 57-80912BB-00 Rev. A1...
