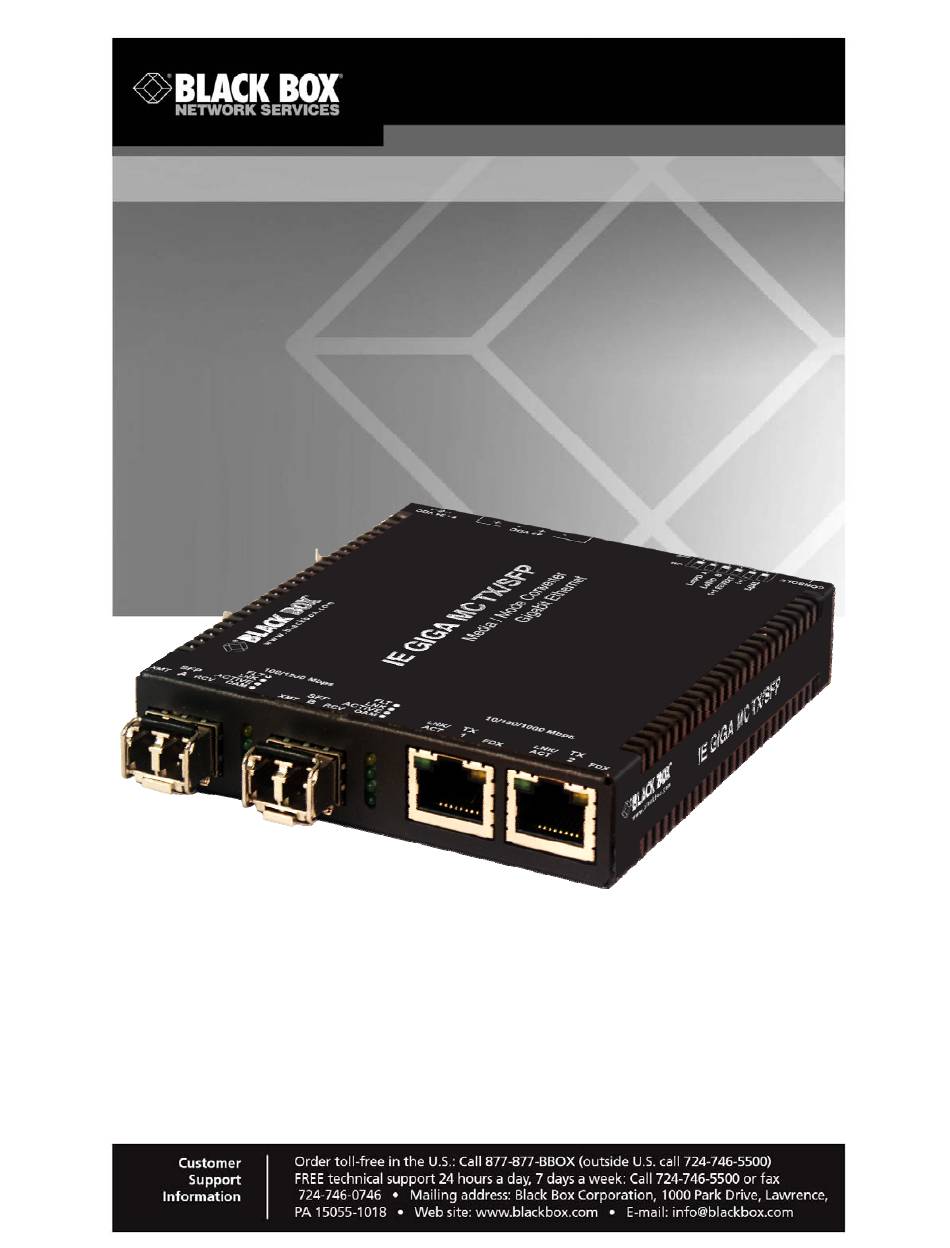

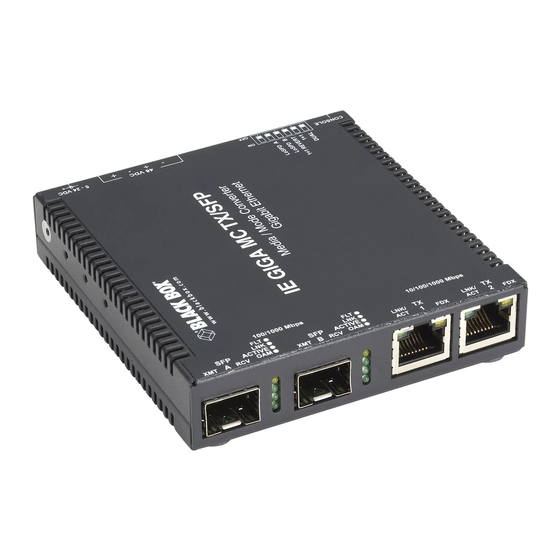

- Page 1 LGC340A IE GIGA MC TX/SFP This standalone device provides two 10-/100-/1000-BASE-T copper ports and two SFP ports.
- Page 2 TRADEMARKS USED IN THIS MANUAL Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. Page 2 724-746-5500 | blackbox.com...
- Page 3 FCC and IC RFI Statements FCC and Industry Canada RF Interference Statements Class A Digital Device (using 48V Telco type power). This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
- Page 4 FCC and IC RFI Statements This digital apparatus does not exceed the Class B limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada. Page 4 724-746-5500 | blackbox.com LGC340A...
- Page 5 Certifications Certifications Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. This symbol indicates that the equipment should be disposed of separately from regular household waste.
-
Page 6: Table Of Contents
Table of Contents Table of Contents Part Numbers ...................... 7 Specifications ..................8 Overview: About the IE GIGA MC TX/SFP ........... 9 Configuration ..................10 Management Features ................. 10 ... -
Page 7: Part Numbers
Part Numbers Part Numbers Part Number Description LGC340A IE GIGA MC TX/SFP LGC340A 724-746-5500 | blackbox.com Page 7... -
Page 8: Specifications
Chapter 1: Specifications 1. Specifications Operating Temperature -40°F to +185° F (-40°C to +85°C) DC configuration +14°F to +122° F (-10°C to +50°C) AC Storage Temperature -67°F to +257°F (-55°C to +125° C) Humidity 5 to 95% (non-condensing); 0 to 10,000 ft. altitude Dimensions 0.86”H x 3.66”W x 3.88”D (2.2cm H x 9.3cm W... -
Page 9: Overview: About The Ie Giga Mc Tx/Sfp
The IE GIGA MC TX/SFP is a standalone device providing two 10/100/1000Base-T copper ports and 2 SFP ports. The SFP ports support fiber or copper SFPs. As a plug and play device, the IE GIGA MC TX/SFP provides several distinct modes of operation to support a wide range of applications. -
Page 10: Configuration
Chapter 3: Configuration 3. Configuration The IE GIGA MC TX/SFP can be configured in one of the following ways: Configuration Description Method 4-Port Switch In this mode, the unit acts as a standard 4-port MAC-layer (default) switch. In this configuration, IEEE802.3ah Passive is enabled on both fiber ports, and can be enabled on the RJ-45 ports through the CLI. -
Page 11: Basic Device Configuration
Chapter 3: Configuration The IE GIGA MC TX/SFP includes an RS-232 Mini Jack for the Console port to allow the end user to launch a serial session and access a list of commands. The serial port on the computer/terminal should be set for: 38.4K baud, 8 data bits, 1 stop bit, no parity, no flow control. -
Page 12: Saved And Current Values
NOTE It is necessary to reboot the IE GIGA MC TX/SFP after making any modifications to the Saved Values for the changes to take effect. To reboot, type Reboot at the prompt on the Main Configuration screen. -
Page 13: Assigning Ip Information
Enter to skip. When finished, press Enter, then type reboot for changes to take effect. The Current Values can only be saved and acted on after the IE GIGA MC TX/SFP has been successfully rebooted. -
Page 14: Creating Community Strings
To reboot the IE GIGA MC TX/SFP, type reboot. 3.1.12 Enabling/Disabling DHCP To toggle DHCP on the IE GIGA MC TX/SFP between enable and disable, press D. Press the Space Bar once to access additional commands. 3.2 DHCP Disable (Static IP Addressing) DHCP is disabled in the default configuration. -
Page 15: Dhcp Enable (Dynamic Ip Addressing)
-> Press RETURN To Go Back To Main Screen. The IE GIGA MC TX/SFP also includes several device-specific options. To access these options, press the Space Bar from the Main Configuration screen, type the name of the action to be performed (as shown below) and press Enter. -
Page 16: Oam (Operation And Administration Management)
Chapter 3: Configuration Command Description cleandb Reboots the unit with a clean database. This removes all information from the database and sets the unit to factory defaults. version Displays the unit’s firmware and hardware version. ifstats Displays interface statistics. rmstats Displays remote monitoring (RMON) statistics on packets received as defined in RFC 2819 for RMON. -
Page 17: Dip Switch Configuration
Reserved 3.6 DC Terminal Block Wiring Instructions The IE GIGA MC TX/SFP can also be powered with the DC terminal block. From a power source, connect to any one positive and any one negative terminal on the IE GIGA MC TX/SFP. -
Page 18: Data Port Pinout
Chapter 3: Configuration 3.7 RJ-45 Data Port Pinout The following table lists the pin configuration for the RJ-45 Data connector. Signal Name Signal Direction 1000M 10/100M TXD1+ Out* TXD1- Out* RXD2+ Pin 1 RXD2- *Note that the MDI/MDI-X function will automatically adjust the direction of these signals to match the connected unit when running 10/100BASE-T. -
Page 19: Install The Ie Giga Mc Tx/Sfp
Chapter 4: Install the IE GIGA MC TX/SFP 4. Install the IE GIGA MC TX/SFP The IE GIGA MC TX/SFP is a standalone, table-top device with a small form factor making it ideal for installation in locations with limited space, or it can be DIN rail mounted. -
Page 20: Operation
Chapter 5: Operation 5. Operation 5.1 LED Operation Each IE GIGA MC TX/SFP includes SFP and RJ-45 LEDs. SFP LED functions are as follows: Function Glows amber when a fault is detected. Glows green with a valid optical link. ACTIVE Glows green when the port is active. -
Page 21: Contacting Black Box
Chapter 6: Contacting Black Box 6. Contacting Black Box Black Box Customer Service Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Free technical support, 24 hours a day, 7 days a week. Call: 724-746-5500 or Fax: 724-746-0746... -
Page 22: Fiber Optic Cleaning Guidelines
2. Dust caps are installed at Black Box to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. -
Page 23: Electrostatic Discharge Precautions
Chapter 8: Electrostatic Discharge Precautions 8. Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products. 1. - Page 24 LGC340A Rev. 1 58-80121BB-00 Rev. A0...
