LGC5134A-R3 — LGC5135A-R3 — LGC5136A — LGC5137A
LGC5138A — LGC5139A — LGC5140A — LGC5141A — LGC5142A
About L1 Gigabit Compact
Media Converters

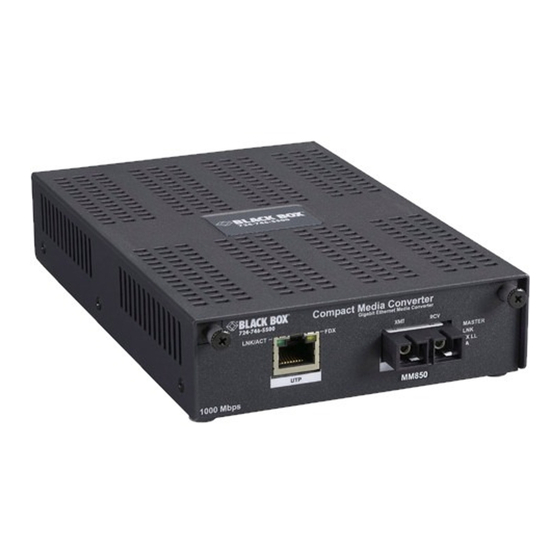

The L1 Gigabit Compact Media Converter is
a low-cost, preconfigured, IEEE 802.3 single-
conversion media converter that converts
1000Base-TX twisted pair to 1000Base-SX
multi-mode or 1000Base-LX single-mode
fiber. It is available with one RJ-45 connec-
tor for the twisted pair port and an SC or
MT connector for the fiber port.
LGC5134A-R3 L1 Gigabit, TX/SX-MM850-SC [300 m]
LGC5136A L1 Gigabit, TX/SX-MM850-MT [300 m]
LGC5137A L1 Gigabit, TX/LX-SM1310/-SC [10 Km]
LGC5135A-R3 L1 Gigabit, TX/LX-SM1310/PLUS-SC [40 Km]
LGC5138A L1 Gigabit, TX/LX-SM1550/LONG-SC [70 Km]
LGC5139A L1 Gigabit, TX/SSLX-SM1310-SC [10 Km]
LGC5140A L1 Gigabit, TX/SSLX-SM1550-SC [10 Km]
LGC5141A L1 Gigabit, TX/SSLX-SM1310/PLUS-SC [40 Km]
LGC5142A L1 Gigabit, TX/SSLX-SM1550/PLUS-SC [40 Km]

Configuration Instructions

L1 Gigabit converters has user-configurable features located on the PCB
board. Please refer to the board diagram and the chart on page 2 for available
features.
To access the L1 Gigabit board for configuration, loosen the two screws on the
front of the unit. Slide the board out of the enclosure (faceplace is attached).
Configure, then slide the board back into the enclosure and tighten the screws.
On the following page is an illustration of the L1 Gigabit PCB board used to
configure the unit.
Gigabit
Compact Media Converter
Installation Guide
