INSTALLATION INSTRUCTIONS AND OPERATING MANUAL
WOOD STOVE
Sense 100
Sense 103
Sense 200
Sense 203
Sense
03.27151.000    07-2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sense 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dovre Sense 100

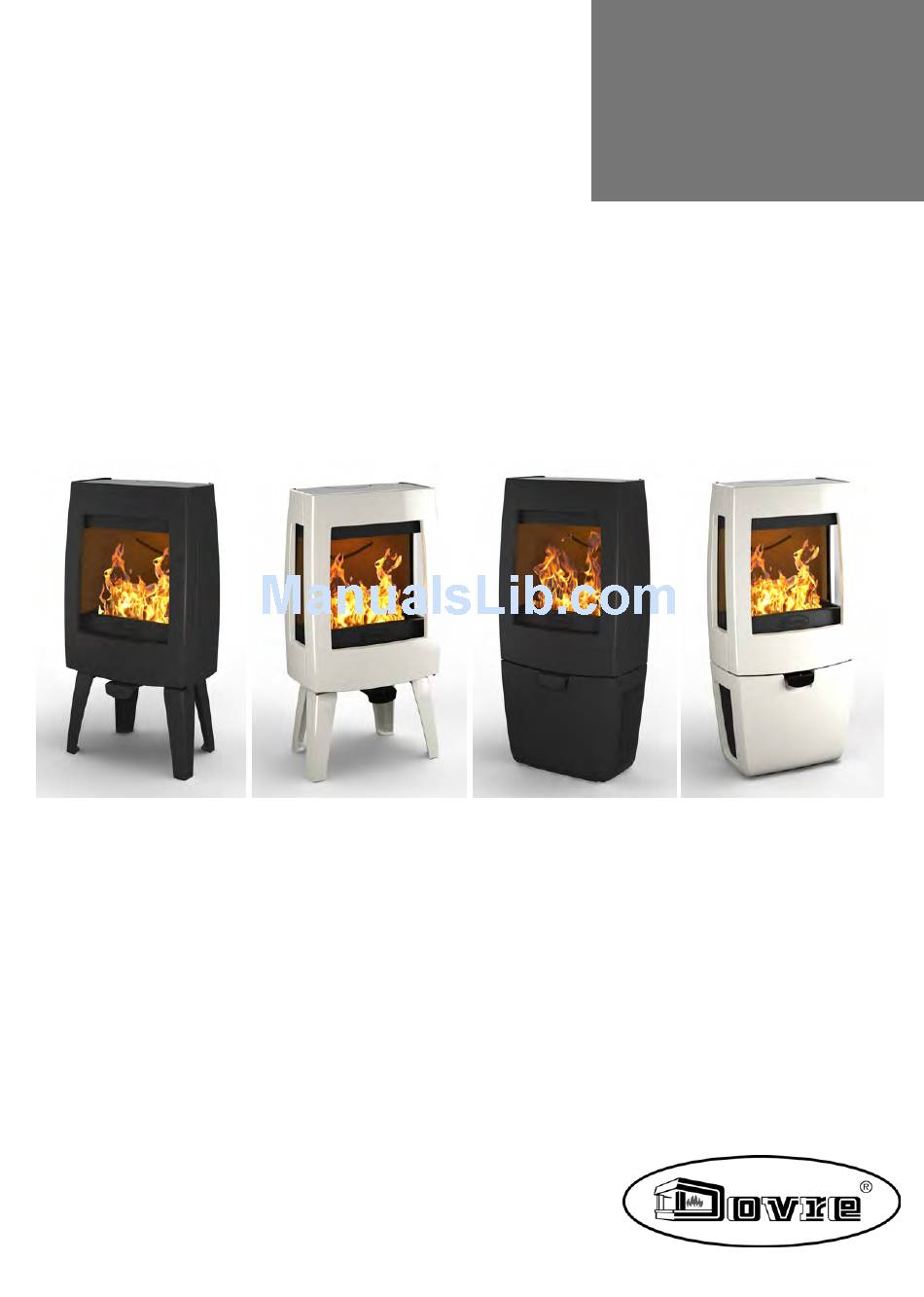

  • Page 1 INSTALLATION INSTRUCTIONS AND OPERATING MANUAL WOOD STOVE Sense 100 Sense 103 Sense 200 Sense 203 Sense 03.27151.000    07-2014...
  • Page 2: Table Of Contents

    Table of contents Introduction Performance declaration Safety Installation requirements General Flue Room ventilation Floor and walls Product description Installation General preparation Preparing the connection to the flue Preparing the outside air connection Installing and connecting First use Fuel Lighting Burning wood Controlling combustion air Extinguishing the fire Removing ash...
  • Page 3: Introduction

    Observe the following safety regulations when installing and using the appliance. In this manual, you can read how the DOVRE heating appliance can be installed, used and maintained safely. Should you require additional information or technical data, or should you experience an install- ation problem, please first contact your supplier.
  • Page 4: Performance Declaration

    4. Name, registered trade name or registered trademark and contact address of the producer, as pre- scribed in article 11, subsection 5: Dovre N.V. Nijverheidsstraat 18 2381 Weelde Belgium. 5. If applicable, name and contact address for the authorised whose mandate covers the tasks spe- cified in article 12, subsection 2: 6.
  • Page 5 DOVRE N.V. Nijverheidsstraat 18 Tel : +32 (0) 14 65 91 91 B-2381 Weelde Fax : +32 (0) 14 65 90 09 Belgium E-mail : info@dovre.be Subject to change because of technical improvements...
  • Page 6: Safety

    Safety Ensure that there is adequate ventilation in the room in which the appliance is installed. If vent- Please note: All safety regulations must be ilation is insufficient, combustion will be incom- complied with strictly. plete whereby in toxic gases can spread through the room.
  • Page 7: Room Ventilation

    The flue must satisfy the following requirements: The flue or chimney must be made of fire-resistant material, preferably ceramics or stainless steel. The flue or chimney must be airtight and well- cleaned and guarantee sufficient draught. A draught/vacuum of 15 - 20 Pa during normal operation is ideal.
  • Page 8: Floor And Walls

    Floor and walls Product description The floor on which the appliance is placed must have sufficient bearing capacity. The weight of the appli- ance is given in the appendix “Technical Data appendix”. Protect flammable flooring from heat radiation by means of a fireproof protective plate. See the appendix "Distance from combustible material".
  • Page 9: Installation

    Door lock The appliance is supplied with the latch button (4) installed. The door is opened by pressing in the latch button. As the latch button becomes warm during use, a glove has been supplied which you can use to pro- tect your hand.
  • Page 10: Preparing The Connection To The Flue

    09-20021-014 09-20021-013 Fitting the heat shield Removable internal parts 01 base plate To fit the optional heat shield, proceed as follows: 02 fire basket right rear 03 fire basket left rear 1. Screw 2 M6 studs (1) with spacer (2) to the rear 04 fire basket right wall.
  • Page 11: Preparing The Outside Air Connection

    09-20021-015 09-20021-016 4. Fit the connection collar with the 2 M8 nuts. Connecting to the rear 5. Replace the baffle plate. For a connection to the rear, the position of the con- nection collar needs to be changed. The connection Preparing the outside air collar is attached with 2 M8 nuts (key 13).
  • Page 12: Use

    The following fuels may not be used as they pollute the environment, and because they heavily pollute the appliance and flue, which may lead to a chimney fire: Treated wood, such as scrap wood, painted wood, impregnated wood, preserved wood, plywood and chipboard.
  • Page 13: Burning Wood

    o o o Primary air open (when lighting the stove) o o Secondary air open (glass wash) Air for post-combustion open o o Secondary air open (glass wash) Air for post-combustion open Air for post-combustion open (never close entirely for proper combustion) Burning wood After you have followed the instructions for lighting: 4.
  • Page 14: Controlling Combustion Air

    Compact stacking If the logs are stacked tightly, the wood will burn more slowly as the oxygen can only reach some logs eas- ily. If you want to burn wood for a longer period, make a compact stack. 09-20021-019 4. Close the door of the appliance. 5.
  • Page 15: Extinguishing The Fire

    door. When the outside temperature is mild, it is better to burn wood intensely for a few hours instead of having a low intensity fire for a long period of time. Control the air supply using the air vent. The air inlet not only supplies air to the fire but to the glass as well, so that it does not quickly become dirty.
  • Page 16: Maintenance

    Maintenance The insulating vermiculite or chamotte inner plates may develop hairline cracks, but this Follow the maintenance instructions in this chapter to does not affect their performance adversely. keep the appliance in good condition. Cast-iron inner plates last a long time if you Flue remove frequently the ash that can accumulate behind them.
  • Page 17: Replacing The Glass

    kettle directly onto an enamelled stove; use a stand to Check the appliance for air leaks. Close any prevent damage. chinks with stove sealant. Lubrication Allow the sealant to harden fully before lighting the appliance, as any moisture in the sealant Although cast-iron is slightly self-lubricating, you will will form bubbles, resulting in a new air leak.
  • Page 18: Sense Spare Parts

    is attached with a M8 nut in the middle at the top of the appliance. Proceed as follows: Pos. Part nr. Description Quantity 1. Unscrew the two glass fixings with parts (1) and (2) and remove the glass (3), see following figure. 03.66544.002 base plate 2.
  • Page 19: Appendix 1: Technical Data

    Appendix 1: Technical data Model Sense Nominal output 4.9 kW Flue connection (diameter) 150 mm Weight 105 kg - 125 kg Recommended fuel Wood Fuel property, max. length 33 cm Mass flow of flue gasses 4.5 g/s Flue gas temperature measured in the measurement section 247 °C Temperature measured at appliance exit 317 °C...
  • Page 20: Appendix 2: Dimensions

    Appendix 2: Dimensions Sense 100 3 6 0 4 7 0 1 5 0 09-20021-001 Subject to change because of technical improvements...
  • Page 21 Sense 103 3 6 0 4 7 0 1 5 0 09-20021-002 Subject to change because of technical improvements...
  • Page 22 Sense 200 3 6 0 4 7 0 1 5 0 09-20021-003 Subject to change because of technical improvements...
  • Page 23 Sense 203 3 6 0 4 7 0 1 5 0 09-20021-004 Subject to change because of technical improvements...
  • Page 24: Appendix 3: Distance From Combustible Material

    Appendix 3: Distance from combustible material Sonata - Minimum distances in millimetres for version without heat shield Combustible material Incombustible material, thickness 100 mm Please note: In order to guarantee the supply of combustion air when there is no outside air supply con- nection, the distance from the connection collar for the outside air to the wall must be at least 20 mm.
  • Page 25 Sense - Minimum distances in millimetres for version with heat shield Combustible material Incombustible material, thickness 100 mm Please note: In order to guarantee the supply of combustion air when there is no outside air supply con- nection, the distance from the connection collar for the outside air to the wall must be at least 20 mm. If required, the connection collar can be removed.
  • Page 26 Sense - Dimensions of fireproof floor plate 09-20021-030 Minimum dimensions of fireproof floor plate A (mm) B (mm) Din 18891 Germany Finland Norway Subject to change because of technical improvements...
  • Page 27: Appendix 4: Diagnosis Diagram

    Appendix 4: Diagnosis diagram Problem Wood will not stay lit Gives off insufficient heat Smoke emissions into the room when adding wood Fire in appliance is too intense, is hard to adjust Deposit on the glass Possible cause Possible solution A cold flue usually fails to create sufficient draught.
  • Page 28: Index

    Index at the top rear Controlling air supply Adding wood smoking appliance Creosote Adverse weather conditions, do not burn wood 15 Aerating the fire Damage Air combustion control Damp wood Air control Dimensions Air inlets Door Air leak adjust closing Ash pan Locking cam open...
  • Page 29 furniture Inner plates, fire-resistant walls remove Fireproof inner plates Installing warning dimensions fitting Fitting Kindling heat shield Floors bearing capacity Lighting fire fire safety Lubricant Flue Lubricate connecting to connection diameter height maintenance Maintenance requirements Clean appliance cleaning the glass Flue cap enamel Flue gas...
  • Page 30 Replacing Wood glass damp drying right sort storing Screens will not stay lit deposit Sealing rope for door Secondary air inlet Smoke emissions into the room Smoking appliance Softwood Solving problems 15, 27 Stacking logs Storing wood Stove glass cleaner Suitable fuel Sweeping flue Temperature...
