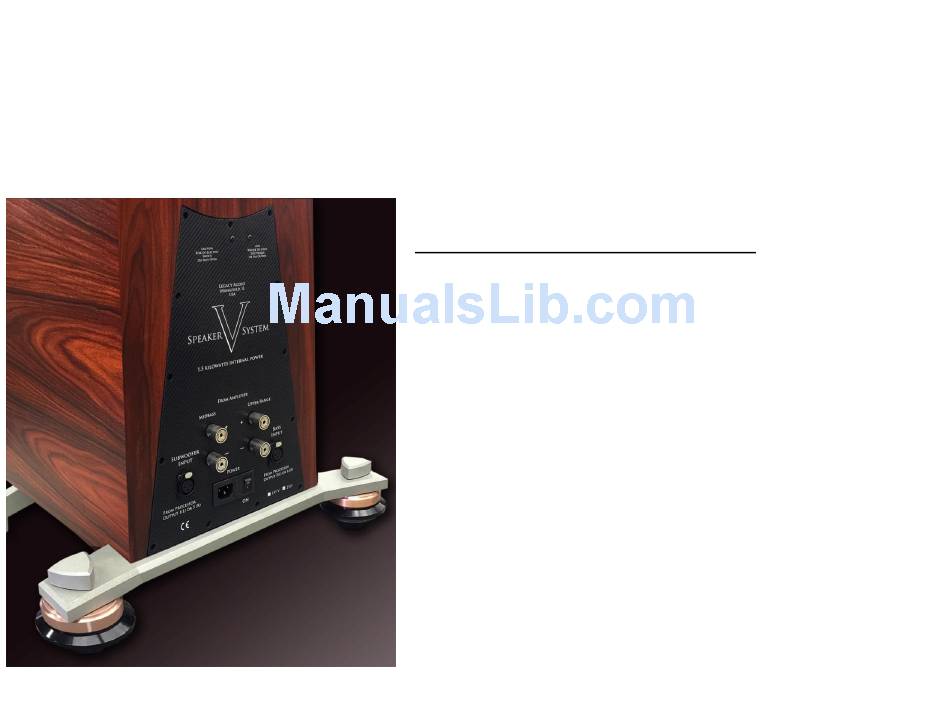

Speaker Connections

The standard V system provides two channels of amplification internally for the subwoofer and bass drivers.
You will need to supply two additional channels for the lower midrange (60 watts minimum) and
midrange/treble (30 watts minimum) of each speaker. Additional channels of internal amplification can be
provided by special order. Two professional grade 15 ft. balanced XLR cables are provided for each speaker.
Wavelet processor output connections:
1 Left speaker subwoofer amplifier (internal 1000 watts)
2 Left speaker bass (internal 500 watts)
3 Left lower midrange amplifier (user provided)
4 Left midrange/treble amplifier (user provided)
5 Right speaker subwoofer amplifier (internal 1000 watts)
6 Right speaker bass (internal 500 watts)
7 Right lower midrange amplifier (user provided)
8 Right midrange/treble amplifier (user provided)
