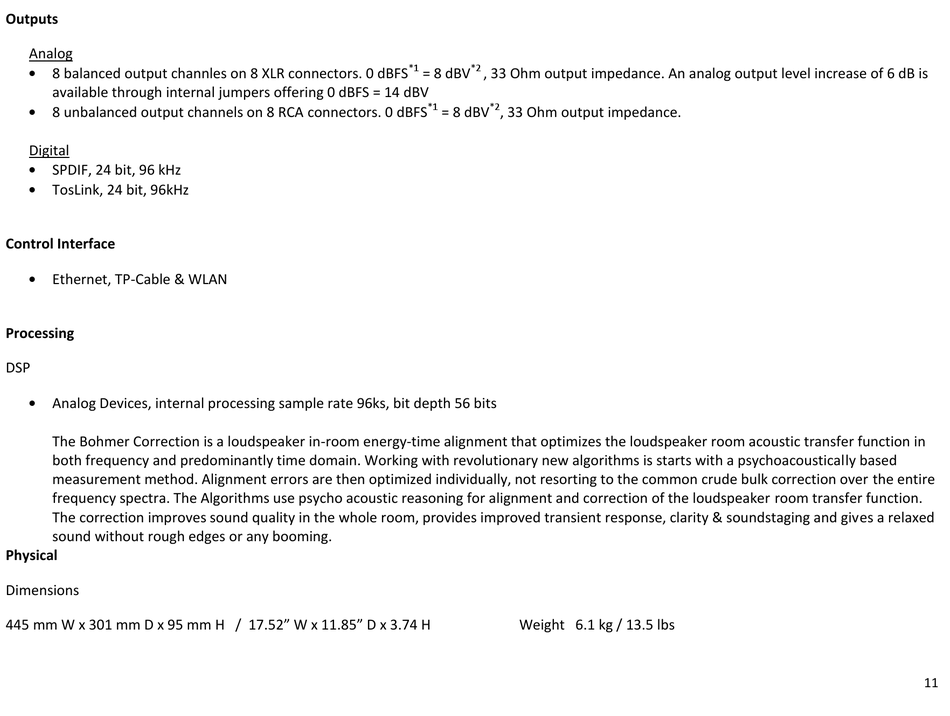

Legacy V System Owner's Operating Manual page 11

Outputs
Analog
 8 balanced output channles on 8 XLR connectors. 0 dBFS
available through internal jumpers offering 0 dBFS = 14 dBV
 8 unbalanced output channels on 8 RCA connectors. 0 dBFS
Digital
 SPDIF, 24 bit, 96 kHz
 TosLink, 24 bit, 96kHz
Control Interface
 Ethernet, TP-Cable & WLAN
Processing
DSP
 Analog Devices, internal processing sample rate 96ks, bit depth 56 bits
The Bohmer Correction is a loudspeaker in-room energy-time alignment that optimizes the loudspeaker room acoustic transfer function in
both frequency and predominantly time domain. Working with revolutionary new algorithms is starts with a psychoacoustically based
measurement method. Alignment errors are then optimized individually, not resorting to the common crude bulk correction over the entire
frequency spectra. The Algorithms use psycho acoustic reasoning for alignment and correction of the loudspeaker room transfer function.
The correction improves sound quality in the whole room, provides improved transient response, clarity & soundstaging and gives a relaxed
sound without rough edges or any booming.
Physical
Dimensions
445 mm W x 301 mm D x 95 mm H / 17.52" W x 11.85" D x 3.74 H
*1 *2
= 8 dBV , 33 Ohm output impedance. An analog output level increase of 6 dB is
*1 *2
= 8 dBV , 33 Ohm output impedance.
Weight 6.1 kg / 13.5 lbs
11
