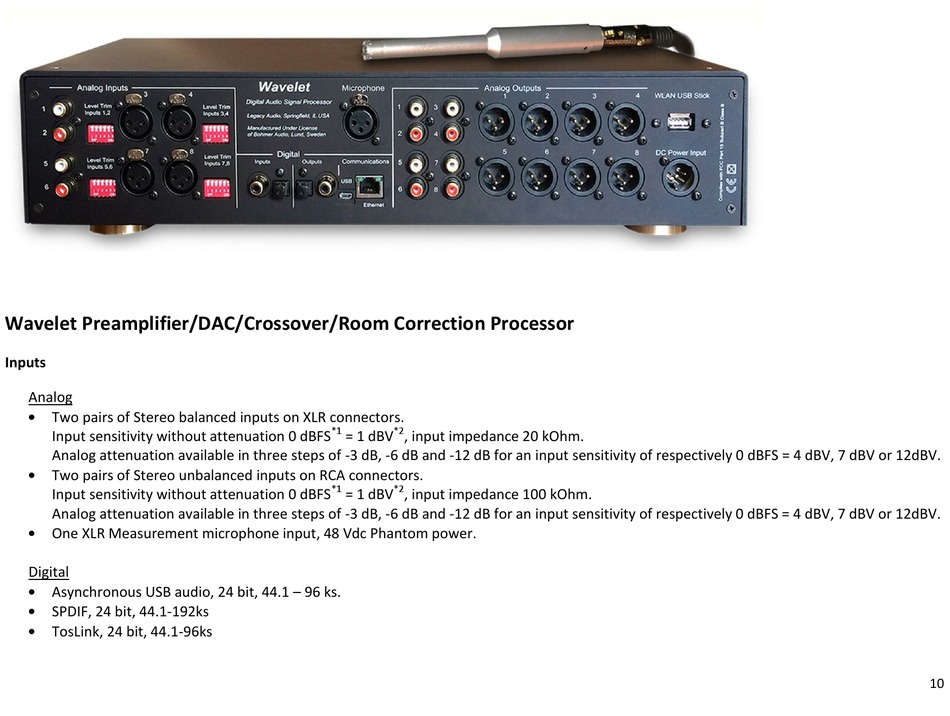

Legacy V System Owner's Operating Manual page 10

Wavelet Preamplifier/DAC/Crossover/Room Correction Processor
Inputs
Analog
 Two pairs of Stereo balanced inputs on XLR connectors.
Input sensitivity without attenuation 0 dBFS
Analog attenuation available in three steps of -3 dB, -6 dB and -12 dB for an input sensitivity of respectively 0 dBFS = 4 dBV, 7 dBV or 12dBV.
 Two pairs of Stereo unbalanced inputs on RCA connectors.
Input sensitivity without attenuation 0 dBFS
Analog attenuation available in three steps of -3 dB, -6 dB and -12 dB for an input sensitivity of respectively 0 dBFS = 4 dBV, 7 dBV or 12dBV.
 One XLR Measurement microphone input, 48 Vdc Phantom power.
Digital
 Asynchronous USB audio, 24 bit, 44.1 – 96 ks.
 SPDIF, 24 bit, 44.1-192ks
 TosLink, 24 bit, 44.1-96ks
*1 *2
= 1 dBV , input impedance 20 kOhm.
*1 *2
= 1 dBV , input impedance 100 kOhm.
10
