Speaker Connections

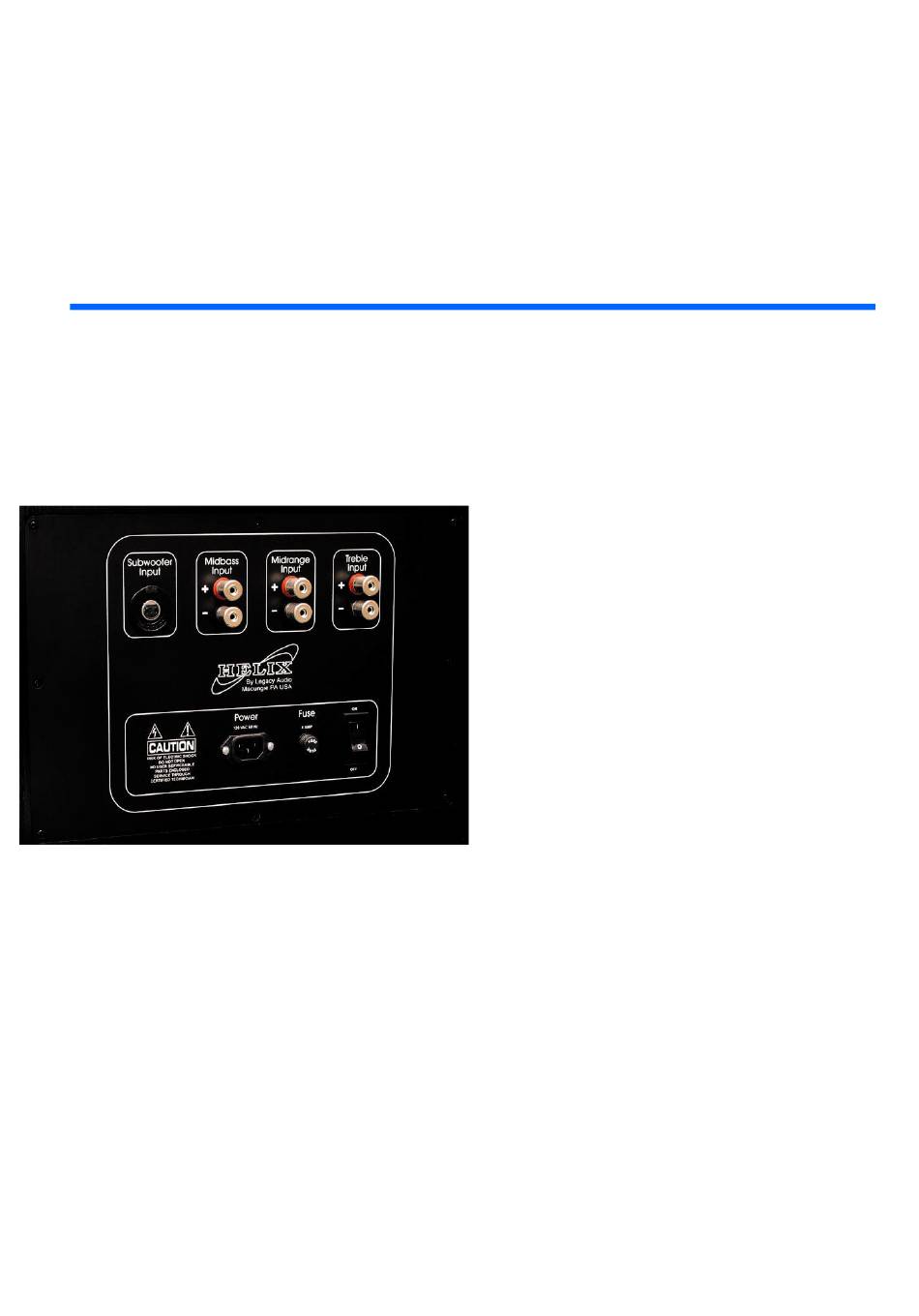

The Terminal Plate
The four-way HELIX requires the user to
provide three channels of amplification per
speaker. This may be accomplished via three
stereo amplifiers, a combination of mono
blocks and stereo amplifiers, or a single six-
channel amplifier.
HELIX includes an internal 750-watt ampli-
fier to power the subwoofer section. A bal-
anced XLR input feeds the subwoofer, while
three pairs of premium WBT Platinum five-
way binding posts are provided for the mid
bass, midrange and treble inputs.
Your Legacy dealer can assist you with your
specific cabling needs.
