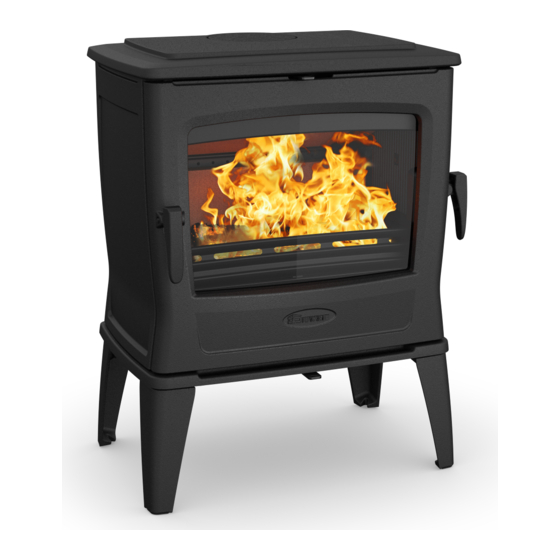

- Page 1 INSTALLATIEVOORSCHRIFTEN EN GEBRUIKSAANWIJZING KACHEL INSTALLATION INSTRUCTIONS AND OPERATING MANUAL STOVE INSTALLATION ET MODE D’EMPLOI POELE EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG FEUERSTÄTTE INSTRUCCIONES DE INSTALACIÓN Y USO ESTUFA ISTRUZIONI PER L'INSTALLAZIONE E L'USO STUFA MONTERINGS- OG BRUKSANVISNING ILDSTED TAI 45M, TAI 45C 03.27148.000 - 09/2014...
-
Page 2: Table Of Contents
Table of contents Introduction Performance declaration TAI 45M Performance declaration TAI 45C Performance declaration TAI 55M Performance declaration TAI 55C Safety Installation requirements General Flue Room ventilation Floor and walls Product description Installation Preparation Preparing the connection to the flue... -
Page 3: Introduction
Observe the following safety regulations when installing and using the appliance. In this manual, you can read how the DOVRE heating appliance can be installed, used and maintained safely. Should you require additional information or technical data, or should you experience an install- ation problem, please first contact your supplier. -
Page 4: Performance Declaration Tai 45M
4. Name, registered trade name or registered trademark and contact address of the producer, as pre- scribed in article 11, subsection 5: Dovre N.V. Nijverheidsstraat 18 2381 Weelde Belgium. 5. If applicable, name and contact address of the authorised party whose mandate covers the tasks spe- cified in article 12, subsection 2: 6. - Page 5 DOVRE N.V. Nijverheidsstraat 18 Tel : +32 (0) 14 65 91 91 B-2381 Weelde Fax : +32 (0) 14 65 90 09 Belgium E-mail : info@dovre.be Subject to change because of technical improvements...
-
Page 6: Performance Declaration Tai 45C
4. Name, registered trade name or registered trademark and contact address of the producer, as pre- scribed in article 11, subsection 5: Dovre N.V. Nijverheidsstraat 18 2381 Weelde Belgium. 5. If applicable, name and contact address of the authorised party whose mandate covers the tasks spe- cified in article 12, subsection 2: 6. - Page 7 DOVRE N.V. Nijverheidsstraat 18 Tel : +32 (0) 14 65 91 91 B-2381 Weelde Fax : +32 (0) 14 65 90 09 Belgium E-mail : info@dovre.be Subject to change because of technical improvements...
-
Page 8: Performance Declaration Tai 55M
4. Name, registered trade name or registered trademark and contact address of the producer, as pre- scribed in article 11, subsection 5: Dovre N.V. Nijverheidsstraat 18 2381 Weelde Belgium. 5. If applicable, name and contact address of the authorised party whose mandate covers the tasks spe- cified in article 12, subsection 2: 6. - Page 9 DOVRE N.V. Nijverheidsstraat 18 Tel : +32 (0) 14 65 91 91 B-2381 Weelde Fax : +32 (0) 14 65 90 09 Belgium E-mail : info@dovre.be Subject to change because of technical improvements...
-
Page 10: Performance Declaration Tai 55C
4. Name, registered trade name or registered trademark and contact address of the producer, as pre- scribed in article 11, subsection 5: Dovre N.V. Nijverheidsstraat 18 2381 Weelde Belgium. 5. If applicable, name and contact address of the authorised party whose mandate covers the tasks spe- cified in article 12, subsection 2: 6. - Page 11 DOVRE N.V. Nijverheidsstraat 18 Tel : +32 (0) 14 65 91 91 B-2381 Weelde Fax : +32 (0) 14 65 90 09 Belgium E-mail : info@dovre.be Subject to change because of technical improvements...
-
Page 12: Safety
Safety incomplete whereby in toxic gases can spread through the room. See the chapter "Installation Please note: All safety regulations must be requirements" for more information on vent- complied with strictly. ilation. Please read carefully the instructions supplied Installation with the appliance for installation, use and maintenance before using the appliance. -
Page 13: Room Ventilation
The flue or chimney must be airtight and well- cleaned and guarantee sufficient draught. A draught/vacuum of 15 - 20 Pa during normal operation is ideal. Starting from the flue spigot, the flue must run as vertically as possible. Changes in direction and horizontal pieces disrupt the outward flow of com- bustion gases and may cause soot deposits. -
Page 14: Product Description
Remove combustible material such as lino- leum, carpets/rugs and similar materials below the fireproof protective plate. Keep sufficient distance between the appli- ance and combustible materials such as wooden walls and furniture. The connecting tube also radiates heat. Ensure that there is sufficient distance or a shield between the connecting tube and combustible material. -
Page 15: Installation
Appliance features By removing removable parts, it is easier to move the appliance and to avoid damage. The TAI M appliance can be used to burn wood, Note the location of the removable parts, so coal (anthracite) and brown coal briquettes. The that you can re-position the parts in the correct appliance comes with a side filling door. -
Page 16: Use
Appliance TAI C is only suitable for burning anthracite coal. Do not use other fuels, as they can cause serious damage to the appliance. The following fuels may not be used as they pollute the environment, and because they heavily pollute the appliance and flue, which may lead to a chimney fire: Treated wood, such as scrap wood, painted wood, impregnated wood, preserved wood, plywood and... -
Page 17: Lighting
Anthracite coal 4. Close the door of the appliance and open the primary and secondary air inlets by completely Anthracite coal is divided into various categories on opening the primary and secondary air sliders; see the basis of characteristics, sometimes specified by the following figure. -
Page 18: Burning Brown Coal Briquettes (Tai M)
Open stacking 6. To subsequently add fuel, use the filling door of the appliance. Burning brown coal briquettes (TAI M) Brown coal briquettes burn in almost the same way as wood. Using the primary air inlet, ensure sufficient supply of air under the fire. For further information see the paragraph "Burning wood". -
Page 19: Heating Recommendations
Be careful not to smother the fire by adding too The correct position depends on the flue and much coal at once. the weather conditions. You have added as much as you can when the If the coal basket begins to glow red, the fire is glow from the previous load is only just visible. -
Page 20: Removing Ash
the fire until it has gone out. All air inlets can be closed once the fire has died completely. Removing ash A relatively large amount of ash is left over after burn- ing brown coal briquettes and anthracite coal. Remove the excess ash regularly. After wood has been burnt, a relatively small amount of ash remains. -
Page 21: Cleaning And Other Regularly Maintenance
At the end of the heating season: close off the chim- cleaning agent time to react. ney and plug with newspaper. b. Remove the dirt with a moist cloth or kitchen tissue. Cleaning and other regularly 3. Clean the glass again with a normal glass cleaning maintenance product. - Page 22 undergo a visual inspection in the factory, that is to say, the inspector looks at the surface for a period of 10 seconds from a distance of 1 metre. Any damage that does not stand out is regarded as OK. A special heat-resistant paint is supplied with the appliance to touch up any minor damage caused dur- ing transport.
-
Page 23: Appendix 1: Technical Data
Appendix 1: Technical data Model Nominal output 9 kW 9 kW 9 kW 9 kW Flue connection (diameter) 150 mm 150 mm 150 mm 150 mm Weight 155 kg 155 kg 155 kg 160 kg Recommended fuel Wood Coal Brown coal Coal Fuel property, max. - Page 24 Model Minimum draught 12 Pa 12 Pa 12 Pa 12 Pa CO emission (13%O 0.09% 0.08% 0.07% 0.09% NOx emission (13% O 60 mg/Nm³ CnHm emission (13%O 96 mg/Nm³ 136 mg/Nm³ 109 mg/Nm³ 136 mg/Nm³ Particulate emission 13 mg/Nm³ <40 mg/Nm³ 12.3 mg/Nm³...
-
Page 25: Appendix 2: Dimensions
Appendix 2: Dimensions TAI 45M / TAI 45C 09-20020-358 Subject to change because of technical improvements... - Page 26 TAI 55M / TAI 55C 09-20020-361 Subject to change because of technical improvements...
-
Page 27: Appendix 3: Distance From Combustible Material
Appendix 3: Distance from combustible material TAI 45M and 45C / TAI 55M and 55C - Minimum distances in millimetres 1350 1070 09-20020-356 Combustible material Incombustible material, thickness 100 mm Subject to change because of technical improvements... - Page 28 TAI 45M and 45C / TAI 55M and 55C - Incombustible floor plate dimensions 09-20002-004 Minimum dimensions of fireproof floor plate A (mm) B (mm) Din 18891 Germany Finland Norway Subject to change because of technical improvements...
-
Page 29: Appendix 4: Diagnosis Diagram
Appendix 4: Diagnosis diagram Problem Wood will not stay lit Gives off insufficient heat Smoke emissions into the room when adding wood Fire in appliance is too intense, is hard to adjust Deposit on the glass possible cause possible solution A cold flue usually fails to create sufficient draught. -
Page 30: Index
Index Cleaning appliance glass Coals Adding ash content anthracite coal brown coal briquettes Combustible material distance from Adding fuel Connecting Adding wood dimensions smoking stove Controlling air supply Adverse weather conditions, do not burn wood 20 Creosote Aerating the fire Air inlets Air leak Damp wood... - Page 31 Flue flue connecting to lubrication connection diameter sealing height measuring section maintenance Mist, do not burn wood requirements Flue cap Flue gas Nominal output 20, 23 temperature 5, 7, 9, 11 Flue gasses mass flow Paint Smoke Fog, do not burn wood Fuel during first use 16 adding...
- Page 32 Ventilation rule of thumb Ventilation louvre Walls fire safety Warning cast iron inner plates chimney fire 16, 19 chimney fires fire-resistant inner plates flammable materials glass broken or cracked 12, 21 hot surface requirements stove glass cleaner terms and conditions for insurance ventilation 12-13 Weight...
