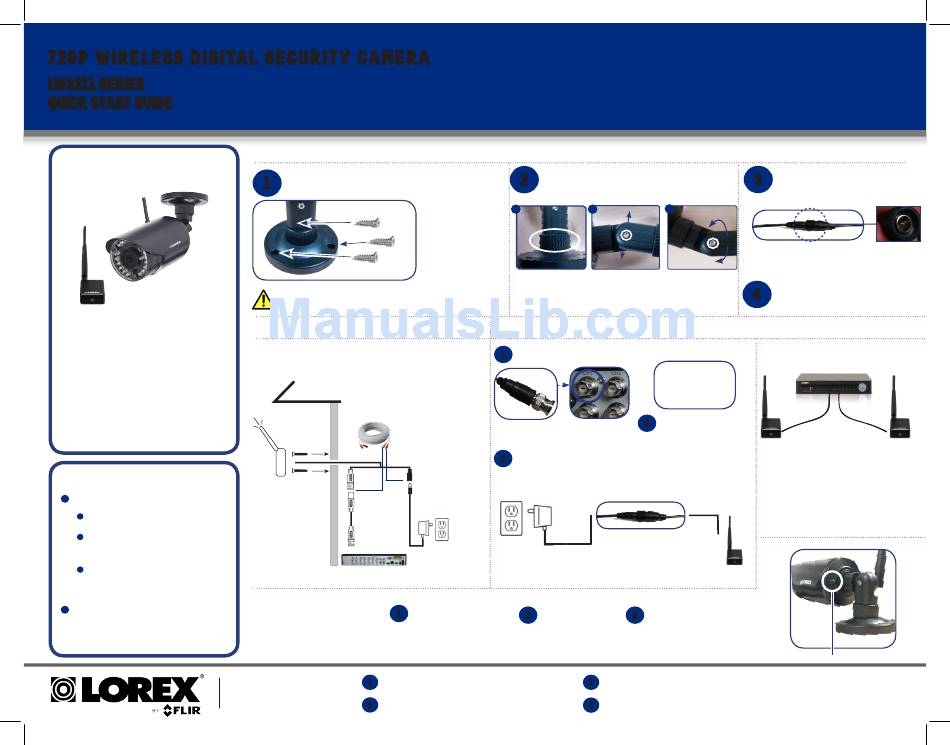

Lorex LW3211 SERIES Quick Start Manual

72 0P W I REL ES S D IG ITAL SECURI TY CAMERA
LW3211 SERIES
QUICK START GUIDE
Getting Started
This system comes with the
following components:

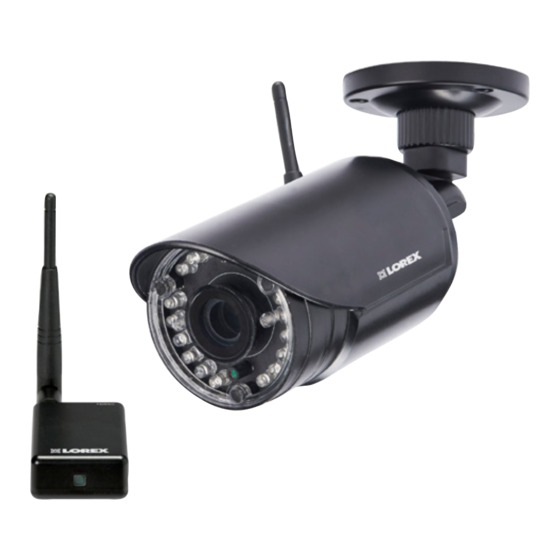

1x wireless camera
1x wireless receiver
1x antenna for camera
1x antenna for receiver
2x power adapters
(for camera and receiver)
1x camera mounting kit
1x receiver mounting kit
Installation Tips
Before you permanently install your camera:
Plan where and how it will be positioned.
Determine where you will route the cable that
connects the camera to the power adapter.
Verify the camera's performance by observing
the image on a monitor when the camera is posi-
tioned where it will be permanently installed.
Avoid installing the camera in a location where the
wireless signal must pass through cement, concrete,
or metal structures. This will reduce the transmission
range.
A. Installing the Camera
Mount the camera to the wall or ceiling using the
1
included screws. Use the included anchors as needed.
For outdoor use, installation in a sheltered location is recommended.
B. Installing the Receiver
If mounting the receiver outdoors, refer to the example below. If
installing the receiver indoors, proceed to "Connecting to an
MPX/HD DVR".
Outdoor Receiver Installation
OPTIONAL:
Extend the cable run of
your video cable and power
Mounting
adapter up to 60ft with a
screws
compatible extension cable*.
Wireless
receiver
BNC cable
Power adapter
MPX/HD DVR
*Compatible camera extension cable CB60URB available at www.lorextechnology.com.
NOTE: The camera and receiver have al-
Make sure that the camera
1
ready been paired out of the box. If for some
and receiver are both
reason the pairing is lost, follow these steps
powered up and all antennas
to pair up the camera and receiver.
properly attached.
1 Visit www.lorextechnology.com
For support and instructions:
3 Select your product from the search results
Adjust the angle of the camera until the desired
2
view is set. Tighten the screws and the adjustment
ring to secure the camera position.
NOTE:
If you run the A B
cables along the wall /
ceiling, you must run the
cable through the cable
notch on the base. This
will keep the camera
base flush to the wall /
ceiling when mounted.
A) Turn the adjustment B) Loosen the lower
ring to tighten / loosen screw with the Allen
the stand connection. key to adjust the cam-
era's vertical position.
C. Connecting to an MPX/HD DVR
Connect the BNC cable to your MPX/HD
1
DVR's** video input.
BNC video
Connect the receiver power adapter to
2
the receiver. Connect the power adapter
to a power outlet.
**720p cameras are compatible with Lorex's 720p & 1080p HD DVR recorders only.
Press the PAIR button
2
on the receiver.
2
Search your product's model number
4 Click on the Downloads tab
Connect the camera power adapter
3
to the camera. Connect power adapter
to a power outlet.
C
Power cables are only weatherproof when fully inserted at
the connection point. Power cables should not be submerged
in water.
C) Loosen the upper
Remove protective film from the
screw with the Allen
4
key to rotate the
camera lens.
camera housing.
Installing Multiple Wireless
ATTENTION:
Make
sure to first connect and
power on the camera before
powering on the receiver.
OPTIONAL:
3
Use the double-sided
tape to securely attach
When installing multiple digital wireless security
the receiver to a flat
cameras in the same environment, maintain at least
surface. OR secure the
4" / 10cm between the receivers to optimize camera
receiver using the included
performance.
mounting screws.
NOTE: It is not recommended to install more than
3 digital wireless security cameras in the same
environment to maintain optimal video frame rate
performance.
Press the PAIR button on the back of the
3
camera within 30 seconds of pressing the
PAIR button on the receiver. If succesful,
live video from the camera will appear on the
monitor.
Cameras
Pair Button
