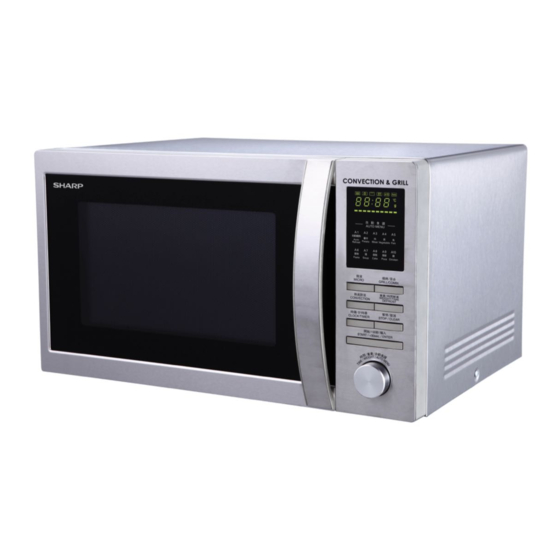

Important R-830B(ST) 850W MICROWAVE OVEN WITH GRILL AND CONVECTION OPERATION MANUAL This operation manual contains important information which you should read carefully before using your microwave oven. IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven is modified...
AUTO MENU FUNCTION ....................................17 AUTO MENU CHART ....................................18-19 SUITABLE OVENWARE ....................................20 CARE AND CLEANING ....................................21 SPECIFICATIONS Model name: R-830B(ST) AC Line Voltage : 2 V~, 50Hz single phase Distribution line fuse/circuit breaker : 20A AC Power required:...
NOTE: When you order accessories, please men- 20. Rack tion two items: part name and model name to your dealer or SHARP authorised service agent. NOTES: • The waveguide cover is fragile. Care should be taken when cleaning inside the oven to ensure that it is not damaged.
CONTROL PANEL DIGITAL DISPLAY and INDICATORS MICROWAVE indicator CONVECTION indicator GRILL indicator DEFROST indicator CHILD LOCK indicator 自 動 食 譜 AUTO MENU indicator 自動翻熱 薯仔 肉 菜 魚 TEMPERATURE indicator WEIGHT indicator 意粉 湯 蛋糕 薄餅 雞 TEMPERATURE PROGRESS indicator The segments gradually light up to show the temperature reached in CONVECTION 微波...
Place or mount the oven so that a special cord. The exchange must be the bottom of the oven is 85 cm or more made by an authorised SHARP service above the floor. Keep children away centre. from the door to prevent them burning 12.
Page 6
22. Do not use harsh abrasive cleaners support after use. These must be dry and or sharp metal scrapers to clean the free from grease. Built-up grease may glass on the oven door since they can...
Page 7
4. Always stand back from the oven door yourself or allow anyone who is not an when opening it to avoid burns from electrician authorised by SHARP to do so. escaping steam and heat. If the oven lamp fails, please consult your 5.
IMPORTANT SAFETY INSTRUCTIONS Other warnings NOTE: 1. Never modify the oven in any way. If you are unsure how to connect your oven, 2. Do not move the oven while it is in please consult an authorised, qualified operation. electrician. Neither the manufacturer nor the dealer can accept any liability for damage 3.
• If the power supply cord is damaged, it • A minimum space of 20cm is required must be replaced by a Sharp approved between the oven and any adjacent walls. service centre or a similarly qualified •...
BEFORE OPERATION Plug in the oven. The oven display will display: “0:00”, an audible signal will sound once. This model has a clock function and the oven uses less than 1.0 W in stand by mode. To set the clock, see below.
MICROWAVE POWER LEVELS • Your oven has 5 power levels, as shown. Power Level Press the MICRO Display • To change the power level for cooking, button (Percentage) press the MICRO button or r tate HIGH P100 the ENTRY dial key until the display (100%) indicates the desired level.
MICROWAVE COOKING Your oven can be programmed for up to 95 minutes (95:00). The input unit of cooking (defrosting) time varies Cooking Time Increasing Unit from 5 seconds to 95 minutes. It depends on the total 0-1 minute 5 seconds length of the cooking (defrosting) time as shown on 1-5 minutes 10 seconds...
Page 13
GRILL COOKING/COMBI COOKING Example: To grill for 20 minutes, using GRILL/COMBI. button. 1. Press GRILL/COMBI. 2. Press the START/ 3. Use the ENTRY dial 4. Press the START/+30sec./ button once. G-1 and +30sec./ENTER to input the grilling ENTER button once more to the grill indicator will button to confi rm the time (20 minutes).
GRILL COOKING/COMBI COOKING IMPORTANT: During operation, to allow smoke or smells to disperse open a window. WARNING: The door, outer cabinet, oven cavity and accessories will become very hot during operation. To prevent burns, always use thick oven gloves. CONVECTION COOKING Your oven can be used as a conventional oven using the convection facility, there are 10 pre-set oven temperatures.
CONVECTION COOKING Notes : 1. The cooking time cannot be input until the preheating temperature arrives. When the oven arrives at desired temperature, the door must be opened to input the cooking time. 2. The convection heater will stop automatically; if there is no input of the cooking time within 5 min- utes.
OTHER CONVENIENT FUNCTIONS a. Direct start You can directly start cooking on P100 microwave power level for 30 seconds by pressing the START/ +30sec./ENTER button. The cooking process will start immediately and each time the button is pressed this will increase the cooking time by 30 seconds. b.
WEIGHT DEFROST AND TIME DEFROST FUNCTION 2. TIME DEFROST This function quickly defrosts food while enabling you to choose a suitable defrost period, depending on the food type. Follow the example below for details on how to operate this function. The time range is 0:05 –...
AUTO MENU CHART Auto Menu Display Cooking Weight/portion/ Procedure method utensils Auto Reheat 100% 150g, 250g, 350g, Put the pre-cooked food on a dinner plate Micro 450g, 600g plate. Use vented microwave (pre-cooked (initial temp. 5°C) cling fi lm or a suitable lid to cover food e.g.
Page 19
AUTO MENU CHART Auto Menu Display Cooking Weight/portion/ Procedure method utensils Soup 100% 200ml, 400ml, Place the cups on the turntable Micro 600ml and stir after cooking. (initial temp. 5°C) Cups (200 ml per cup) Sponge cake* Preheat at 475g The oven will preheat to 160°C.
SUITABLE OVENWARE To cook/defrost food in a microwave oven, the microwave energy must be able to pass through the container to penetrate the food. Therefore it is important to choose suitable cookware. Round/oval dishes are preferable to square/oblong ones, as the food in the corners tends to overcook.
Do Oven Interior not use harsh abrasive cleaners or sharp 1. For cleaning, wipe any splatters or spills metal scrapers to clean the glass oven door with a soft damp cloth or sponge after since they can scratch the surface, which each use while the oven is still warm.
