Lopi Revere Owner's Manual

Fireplace insert
Hide thumbs Also See for Revere:
Table of Contents

Advertisement

Quick Links

SAFETY NOTICE:
If this appliance is not properly installed, a house fire may result.
For your safety, follow the installation directions. Contact local
building or fire officials about restrictions and installation
inspection requirements in your area.

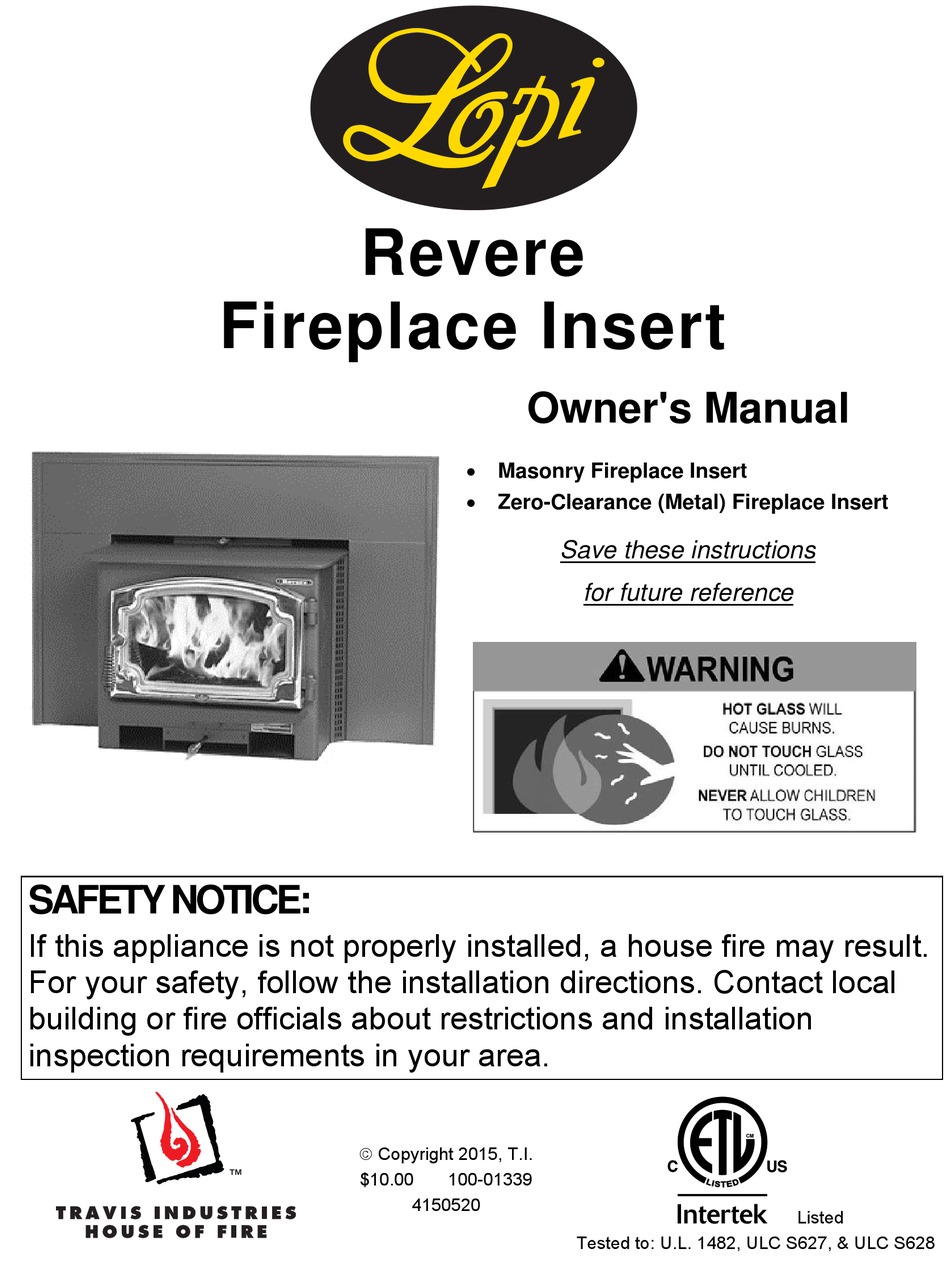

Revere
Fireplace Insert
 Copyright 2015, T.I.
$10.00
Owner's Manual
 Masonry Fireplace Insert
 Zero-Clearance (Metal) Fireplace Insert
Save these instructions
for future reference
100-01339
4150520
Tested to: U.L. 1482, ULC S627, & ULC S628
Listed

Advertisement

Table of Contents
loading

Related Manuals for Lopi Revere

Summary of Contents for Lopi Revere

  • Page 1 Revere Fireplace Insert Owner's Manual  Masonry Fireplace Insert  Zero-Clearance (Metal) Fireplace Insert Save these instructions for future reference SAFETY NOTICE: If this appliance is not properly installed, a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area.

  • Page 2: Introduction

    Introduction Introduction We welcome you as a new owner of a Lopi Revere wood-burning insert. In purchasing a Lopi Revere you have joined the growing ranks of concerned individuals whose selection of an energy system reflects both a concern for the environment and aesthetics. The Lopi Revere is one of the finest appliances the world over.

  • Page 3: Table Of Contents

    Table of Contents   Burning Your Heater ........18   Introduction ............2   Optional Blower Operation ......19   Important Information ........2   Re-Loading the Insert ........19   Installation Options .......... 6   Overnight Burn ..........19  ...
  • Page 4 Safety Precautions The viewing door must be Gasoline or other flammable closed and latched during liquids must never be used to operation. start the fire or "Freshen Up" the fire. Do not store or use Smoke from this appliance may gasoline or other flammable active a smoke detector when liquids in the vicinity of this...
  • Page 5 Safety Precautions When installed in a mobile home, this appliance must be Do not place clothing or other bolted to the floor, have outside flammable items on or near this air, and not be installed in the appliance. Mobile bedroom (Per H.U.D. Home requirements).

  • Page 6: Installation Options

    Features & Specifications Installation Options Features   Masonry Fireplace Insert 2.2 Cubic Foot Firebox Volume   Zero-Clearance (Metal) Fireplace Insert Single Operating Control  Accepts Logs Up to 18" Long  Steel Plate Construction (5/16" & 3/16")  Heavy Duty Refractory Firebrick ...

  • Page 7: Planning The Installation

    Stove Installation (for qualified installers only) SAFETY NOTICE: Please read this entire manual before you install and use your new room heater. Failure to follow instructions may result in property damage, bodily injury, or even death. Contact local building or fire officials about restrictions and installation inspection requirements in your area.

  • Page 8: Fireplace Requirements

    Stove Installation (for qualified installers only) Fireplace Requirements The diagram below shows the minimum size requirements for the type of fireplace used. Minimum Fireplace Masonry Z.C. (Metal) Size Fireplace Fireplace 19.75" 19.75" a Height (front) 502mm 502mm 19.75" 19.75" b Height (rear) 362mm 502mm 24.25"...

  • Page 9: Insert Placement Requirements

    Stove Installation (for qualified installers only) Insert Placement Requirements  The insert must be placed so that no combustibles are within, or can swing within (e.g. drapes, doors), 36" of the front of the insert.  Insert and hearth must be installed on a level, secure floor. ...

  • Page 10: Zero-Clearance (Metal) Fireplace Requirements

    Stove Installation (for qualified installers only) Zero-Clearance (Metal) Fireplace Requirements  Must be manufactured by one of the following manufacturers: • Marco • Majestic • Heatilator • Preway • Tempco • Superior • Heat N Glo • Lennox • Martin •...

  • Page 11: Hearth Requirements

    Stove Installation (for qualified installers only) Hearth Requirements  Must extend in front of the insert and on both sides (see Insert Placement Requirements for details)  Must be non-combustible and at least .018" thick (26 gauge) Drafting Performance Draft is the force which moves air from the appliance up through the chimney. The amount of draft in your chimney depends on the length of the chimney, local geography, nearby obstructions and other factors.

  • Page 12: Block-Off Plate Installation

    Stove Installation (for qualified installers only) Block-Off Plate Installation Whenever this appliance is installed with a direct connection a block-off plate, or other non-combustible seal-off device (e.g. damper adapter), will need to be installed. This device is used to seal the chimney, insuring no smoke enters the home and providing the chimney system with a seal to promote draft.

  • Page 13: Insert With Positive Connection

    Stove Installation (for qualified installers only) Insert with Positive Connection NOTE: Most factory-built chimney manufacturers make stainless steel chimney liners, either flexible or rigid. This provides a wide variety of installation options. Make sure to follow the manufacturer's instructions for installation and support.

  • Page 14: Safety Notice

    Operating Your Appliance Safety Notice If this appliance is not properly installed, a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area. Read and follow all of the warnings on pages 4 and 5 of this manual. Before Your First Fire Verify the Installation Before starting the Insert, verify that the Insert is properly installed and all of the requirements in this...

  • Page 15: Opening The Door

    Operating Your Appliance Opening the Door Rotate Swing the door the door handle. open. The door becomes hot during use. Use a glove to open the door if the handle is hot. To prevent smoke from entering the room, open the air control before opening the door. You can also open the door a small amount and let air enter the firebox.

  • Page 16: Starting A Fire

    Operating Your Appliance Starting a Fire Since the dawn of time man has debated the best way to start a fire. Some use the boy-scout "tee-pee"; some prefer the "tic-tac-toe" stack. Either way, review the hints and warnings below to ensure proper fire starting.

  • Page 17: Adjusting The Burn Rate

    Operating Your Appliance Adjusting the Burn Rate Use the air control slider to control the burn rate of the insert. See the illustration below for details. Use the air control to change the burn rate. Low Burn High Burn (air control closed) (air control open) Approximate Air Control Settings Overnight Burn...

  • Page 18: Understanding Your Heater's Combustion System

    Operating Your Appliance Understanding Your Heater’s Combustion System This heater uses a dual combustion system detailed below: Primary Combustion: This is the combustion (fire) that takes place directly on the wood. Primary combustion determines how fast the fire burns. Air for primary combustion is supplied through the air control. When you adjust the air control you control the amount of air that reaches the fire and creates primary combustion.

  • Page 19: Optional Blower Operation

    Operating Your Appliance Optional Blower Operation The blower will turn on once the Insert is up to temperature. This is typically 15 to 30 minutes after starting the fire. Follow the directions below to alter the blower speed. HIGH Turn the dial all the The high position is all the Turn the dial all way counter-clockwise...

  • Page 20: Hints For Burning

    Operating Your Appliance Hints for Burning  Get the appliance hot before adjusting to low burn  Use smaller pieces of wood during start-up and high burns to increase temperature  Use larger pieces of wood for overnight or sustained burns ...

  • Page 21: Do Not Burn List

    Operating Your Appliance Do Not Burn List This heater is designed to burn natural wood only. Higher efficiencies and lower emissions generally result when burning air dried seasoned hardwoods, as compared to softwoods or to green or freshly cut hardwoods. DO NOT BURN: (1) Garbage;...

  • Page 22: Troubleshooting

    Operating Your Appliance Troubleshooting Problem Possible Cause  Open the air control (pg. 17). Smoke Enters Room During  Open the bypass (pg. 15). Start-Up  Cold Air Blockage - burn a piece of newspaper to establish a draft.  If the flame is not getting enough air, a small crack in the door is all that is needed.

  • Page 23: Daily Maintenance (While Insert Is In Use)

    Maintaining Your Appliance Failure to properly maintain and inspect your appliance may reduce the performance and life of the appliance, void your warranty, and create a fire hazard. Establish a routine for the fuel, wood burner and firing technique. Check daily for creosote build-up until experience shows how often you need to clean to be safe.

  • Page 24: Monthly Maintenance (While Appliance Is In Use)

    Maintaining Your Appliance Monthly Maintenance (while appliance is in use) Make sure the appliance has fully cooled prior to conducting service. Door and Glass Inspection The door must form an air-tight seal to the firebox for the Insert to work correctly. Inspect the door gasket to make sure it forms an air-tight seal to the firebox.

  • Page 25: Yearly Maintenance

    Maintaining Your Appliance Yearly Maintenance Make sure the appliance has fully cooled prior to conducting service. Touch-Up Paint Included with the owner's pack of this appliance is a can of Stove-Brite® paint. To touch up nicks or dulled paint, apply the paint while the appliance is cool.

  • Page 26: Door Parts

    Maintaining Your Appliance Door Parts # 20 Torx Driver NOTE: Place the glass gasket around the perimeter of the door retainer. 9/16" Wrench NOTE: Glue the door gasket to the door retainer. ID # Description Part # ID # Description Part # Door Shell - Black 230-00570...

  • Page 27: Firebox Parts

    Maintaining Your Appliance Firebox Parts ID # Description Part # ID # Description Part # Air Tubes & Sleeve 98900233 Air Tube Roll Pins 98900357 Air Tube Retainer Sleeve 98900356 Baffle Support, Front 99900251 Baffle Support, Rear 99900250 Damper Plate 98900322 Damper Slider 98900343...

  • Page 28: Baffle Removal & Replacement

    Maintaining Your Appliance Baffle Removal & Replacement Push the front firebricks up and feed them forward, guiding them out the door. Repeat for the rear firebricks. Bypass Rod (& Yoke) Baffle Firebrick Front Baffle Support Bypass Damper Bypass Support Front Air Tube Bypass Gasket Support Tabs Center Baffle Support...
  • Page 29 Limited 7 Year Warranty To register your TRAVIS INDUSTRIES, INC. 7 Year Warranty, complete the enclosed warranty card and mail it within ten (10) days of the appliance purchase date to: TRAVIS INDUSTRIES, INC., 12521 Harbour Reach Drive, Mukilteo, WA 98275. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows: Check with your dealer in advance for any costs to you when arranging a warranty call.

  • Page 30: Listing Label

    CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT INSTALLATION AND RESTRICTIONS IN YOUR AREA. SUITABLE FOR USE IN FACTORY-BUILT (Z.C.) FIREPLACES AND MASONRY FIREPLACES. SERIAL NO: MODEL: REVERE Report No. B0495PRT-001 Certified for USA and Canada Control No. 4000515 CONFORMS TO UL STD 1482; CERTIFIED TO ULC STD S628-1993 FACTORY-BUILT (Z.C.) FIREPLACE OR MASONRY FIREPLACE INSTALLATION...

  • Page 31: Door Shell Installation

    Optional Equipment Door Shell Installation 1. Remove the door retainer shipping latch following the directions below. Standard Screwdriver Rotate this shaft 1/4 turn clockwise until the door unlatches. Swing the door retianer open. Remove and discard the shipping latch and nut. Shipping Latch Door Retainer 9/16"...
  • Page 32 Optional Equipment 3. Place the door retainer into the door shell as shown below. Door Retainer Door Shell The indent on the door retainer slides into the clip on the door shell (on both sides). 4. Make sure the holes in the retainer line up with the holes on the shell then use a 5/16” nutdriver to secure the shell with the two screws.

  • Page 33: Surround Panels

    Optional Equipment Surround Panels Rectangular Panels SURROUND PANEL SIZE HEIGHT WIDTH 8" 27 5/8" 40 3/8 " 10" 29 5/8" 44 3/8 " 12" 31 5/8" 48 3/8 " Installation Instructions With the insert 12” from the fireplace, install the side-surround panels (see the directions below). 2.
  • Page 34 Optional Equipment 3. Place the insert into the fireplace and connect the flue (if using a positive or direct connection). Install the top panel and trim following the directions below. © Travis Industries 100-01339 4150520...

  • Page 35: Front Blower (Part # 99000123)

    Optional Equipment Front Blower (part # 99000123) Switching the Power Cord to the Left Side Use a pair of pliers to disconnect the strain relief which holds the power cord in place. With the power cord slackened, the Molex connectors that attach the power cord to the blower assembly may be disconnected.
  • Page 36 Index Additional Accessories Needed for Installation .. 7 Insert with Positive Connection ......13 Adjusting the Burn Rate ........17 Installation Considerations ......... 7 Air Tube Removal & Replacement ....28 Installation Instructions ........33 Approximate Air Control Settings ..... 17 Installation Options ..........
