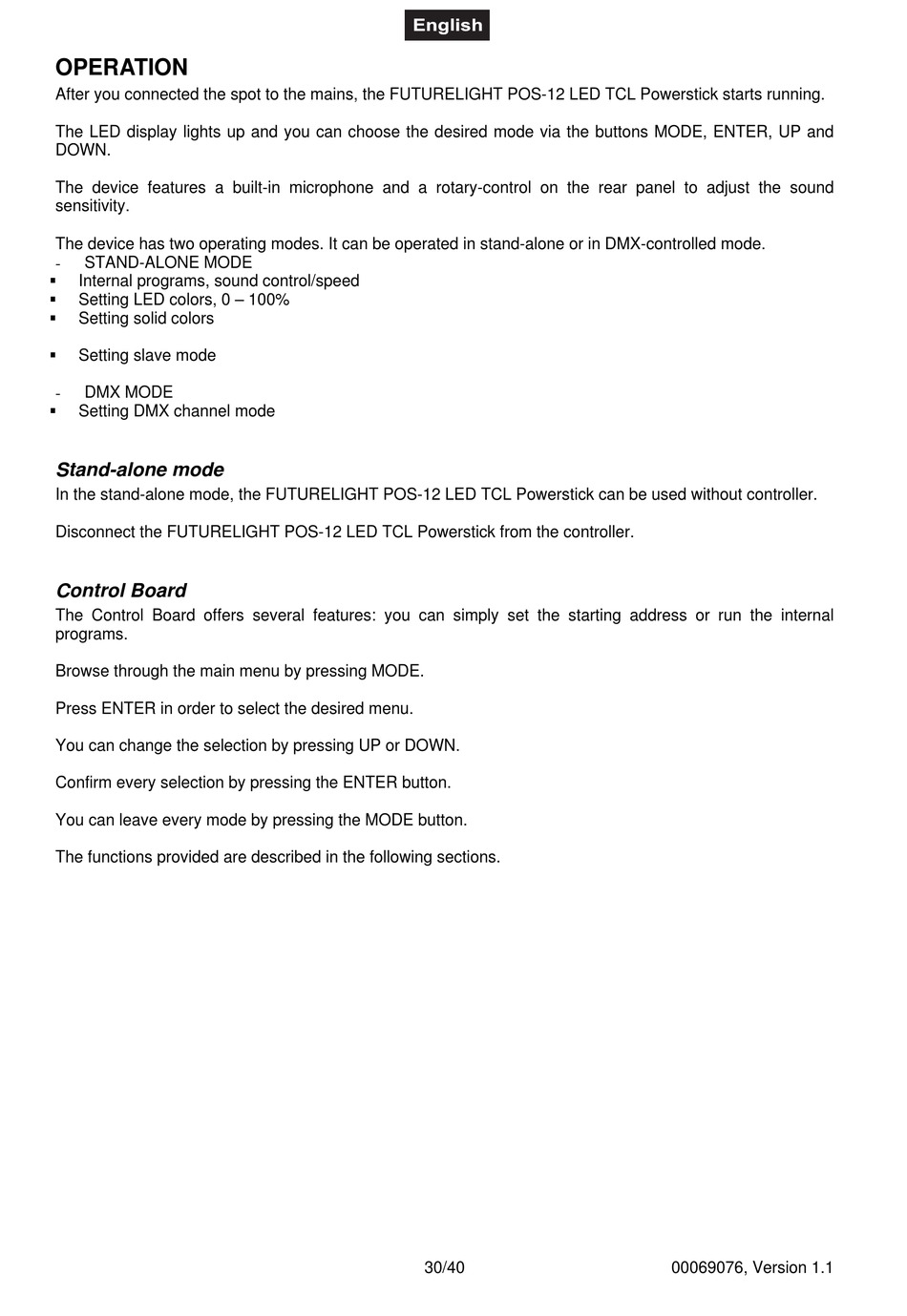

OPERATION

After you connected the spot to the mains, the FUTURELIGHT POS-12 LED TCL Powerstick starts running.
The LED display lights up and you can choose the desired mode via the buttons MODE, ENTER, UP and
DOWN.
The device features a built-in microphone and a rotary-control on the rear panel to adjust the sound
sensitivity.
The device has two operating modes. It can be operated in stand-alone or in DMX-controlled mode.

STAND-ALONE MODE

-

Internal programs, sound control/speed

Setting LED colors, 0 – 100%

Setting solid colors

Setting slave mode
- DMX MODE

Setting DMX channel mode
Stand-alone mode
In the stand-alone mode, the FUTURELIGHT POS-12 LED TCL Powerstick can be used without controller.
Disconnect the FUTURELIGHT POS-12 LED TCL Powerstick from the controller.

Control Board

The Control Board offers several features: you can simply set the starting address or run the internal
programs.
Browse through the main menu by pressing MODE.
Press ENTER in order to select the desired menu.
You can change the selection by pressing UP or DOWN.
Confirm every selection by pressing the ENTER button.
You can leave every mode by pressing the MODE button.
The functions provided are described in the following sections.
30/40 00069076, Version 1.1
