Instructions for use

EN
EN
English, 1

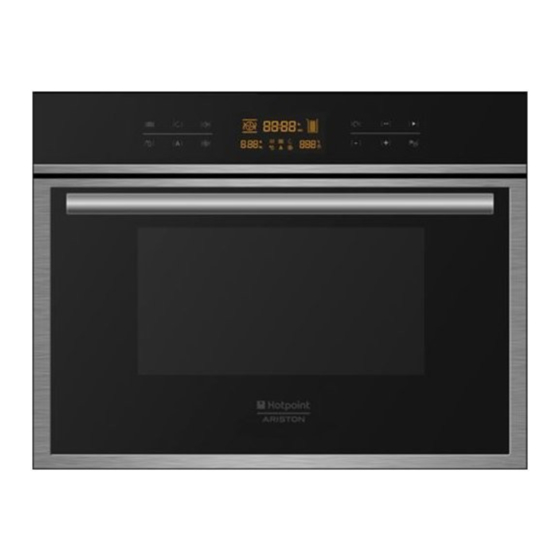

MODEL: MWX 431.1 X
MICROWAVE OVEN WITH GRILL AND CONVECTION
Contents
Installation
Building in
Overal view
Operations instruction
Cleaning

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MWX 431.1 X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hotpoint MWX 431.1 X

Summary of Contents for Hotpoint MWX 431.1 X

  • Page 1: Table Of Contents

    Overal view Start-up and use, 7-12 Operations instruction Important safety instructions, 13-15 Utensils, 16 Materials you can use in microwave oven Materials to be avoided in microwave oven Maintenance and care, 17 Cleaning Troubleshooting, 18 Assistance, 19 MODEL: MWX 431.1 X...

  • Page 2: Installation

    Installation ! Read these instructions carefully before (i) This appliance can be used by chil- dren aged from 8 years and above and using your microwave oven, and keep it persons with reduced physical, sensory carefully.If you follow the instructions, your or mental capabilities or lack of experi- oven will provide you with many years of ence and knowledge if they have been...

  • Page 3: Placement

    Placement • Adapters, multiway strips and must  The appliance may be installed on a firm surface be used. Overloading can result in under a worktop or in a tall kitchen unit that has the fire. appropriate dimensions for a built- in installation (See below) .

  • Page 4: Install The Grill Pan

    Building in 2. Adjust the angel of the grill pan and the shaft. • Do not hold or carry the appliance by the door handle. The door handle cannot hold the weight of the appli- ance and may break off. 1.

  • Page 5: Specifications

    Specifications Model: MWX 43 .1 X Rated Voltage: 240V~50Hz Rated Input Power(Microwave) : 1650W Rated Output Power(Microwave) : 900W Rated Input Power(Grill): 1750W Rated Input Power(Convection): 1750W Rated Input Power(Combination): 2300W MAX. Power: 2300W Distribution line fuse/circuit breaker: Oven Capacity: Turntable Diameter: 360mm External Dimensions:...

  • Page 6: Setting Up Your Oven

    Setting up your oven Names of Oven Parts and Accessories Control panel Remove the oven and all materials from the carton and Grill element oven cavity Your oven comes with the following acces- Light sories: Level Door glass Hinge Enamel Tray Turntable shaft Turntable ring assembly 1 Short Grill Rack...

  • Page 7: Start-Up And Use

    Start up and use Initial cleaning and heating Glass Bakeware usage instruction • Removing the microwave oven all of the protection foil • Glass Bakeware can not be used on the tray , because on the front. the tray will keep turning when functions on. •...

  • Page 8: Clock Setting

    Start-up and use This microwave oven uses modern electronic control to Microwave Power Chart adjust cooking parameters to meet your needs better for Microwave 100% 80% cooking. Power Display 900W 700W 450W 300W 100W 1. Clock Setting When the microwave oven is electrified, “00:00” will blink, You can see from the table below from which power levels buzzer will ring once.
  • Page 9 Start-up and use Functions Function Mode Microwave Microwave Microwave Use the microwave function to cook and reheat veg- etables, potatoes, rice, fish and meat. Hot air With hot air you can prepare meals in the same way as Hot air you do with a conventinal oven.

  • Page 10: Grill Cooking

    Start-up and use 4. Grill Cooking 6) Press “ ” or “ ” to select the cooking time. The MAX 1) Press “ ” button to activate the microwave function. time is 5 hours. 2) Press “ ” or “ ”...

  • Page 11: Auto Cook

    9. Microwave + Grill Cooking 9) Press “ ” or“ ” to select the cooking time of grill. The MAX.time is 90 minutes. 1) Press “ ” button to activate the microwave function. 2) Press “ ” or “ ” or “ ”...
  • Page 12 Start-up and use 14. Lock-out Function for Children Program Category Item ” Lock: In waiting state, press “ ” for 3 seconds, Fresh vegetables P01** Vegetables there will be a long “beep” denoting entering into the Potatoes (Peeled/ P02** Side dishes children-lock state and “...

  • Page 13: Important Safety Instructions

    Important safety instructions WARNING: To reduce the risk of fire, elec- 9. If smoke is emitted, switch off the tric shock, injury to persons or exposure to appliance and keep the door close, excessive microwave oven energy when in order to stife anyfames. using your appliance, follow basic precau- 10.
  • Page 14 20. Do not let cord hang over edge of ta- 33. If you are heating liquid in the micro- ble or counter. wave, then you must also place a tea- 21. Failure to maintain the oven in a clean spoon in the container. This will condition could lead to deterioration of ensure that the liquid does the surface that could adversely affect...
  • Page 15 CAUTION Disposal Personal Injury • When disposing of packaging material: HazardIt is hazardous for anyone other observe local-legislation so that the than a compentent person to carry out packaging may be reused. any service or repair operation that in- • The European Directive 2012/19/EEC volves the removal of a cover which gives on Waste Elec-trical and Electronic protection against exposure to microwave...

  • Page 16: Utensils

    Utensils See the instructions on “Materials you can use in micro- Utensil Test: wave oven or to be avoided in microwave oven.” There 1. Fill a microwave-safe container with 1 cup of cold wa- may be certain non-metallic utensils that are not safe to ter (250ml) along with the utensil in question.

  • Page 17: Maintenance And Care

    Maintenance and care CLEANING Be sure to disconnect the appliance from the power supply. 1. Clean the cavity of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water. 3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

  • Page 18: Troubleshooting

    Trouble Shooting Problem Possible causes/Remedy • Radio and TV reception may be interfered when micro- wave oven operating. It is similar to the interference of Microwave oven interfering TV reception small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal. •...

  • Page 19: Assistance

    Asistance Before contacting the After Sales Service: • make sure you can’t fix the anomaly yourself; • if you can’t, contact an authorized Technical Assistance Ser- vice. ! Never engage non-authorized technicians. Report: • the type of problem; • the oven model (Mod.); •...
