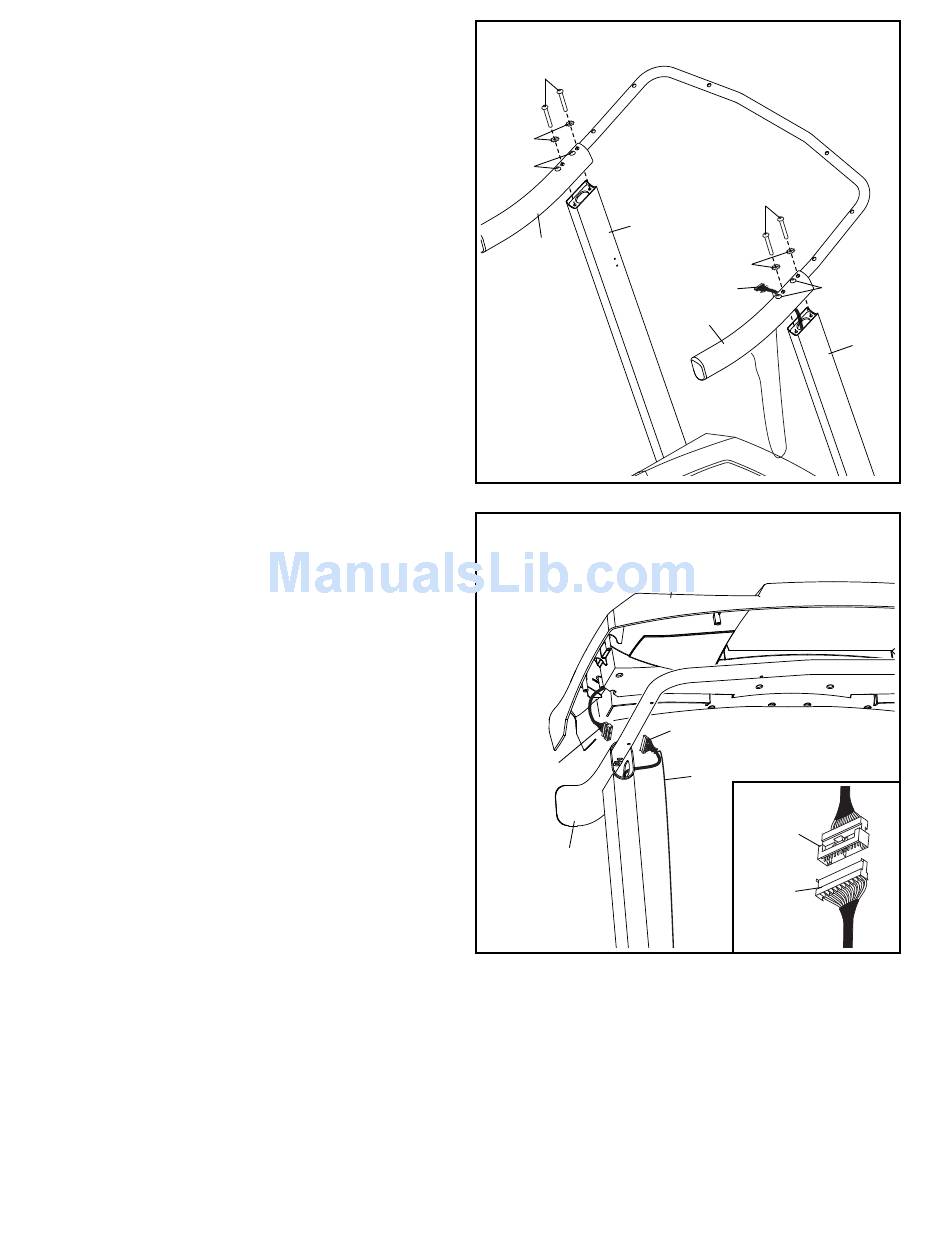

7. Hold the Handrails (59, 64) near the Uprights
(66, 76).
Route the Upright Wire (63) into the bottom of
the Right Handrail (64) and out of the hole in the
side of the Right Handrail.
Set the Handrails (59, 64) on the Uprights (66,
76). Be careful not to pinch the Upright Wire
(63). Partially tighten four 5/16" x 3 1/4" Screws
(78) with four 5/16" Star Washers (6) through
the Handrails and into the Uprights. Start all
four Screws, and then tighten them.
Tighten the four 1/4" x 1 1/4" Screws (77).
8. With the help of a second person, hold the con-

sole assembly near the Right Handrail (64).

See the inset drawing. Connect the Upright
Wire (63) to the console wire. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
7
78
6
77
66
59
8
Console Assembly
Console
Wire
64
10
78
6
77
63
64
76
63
Wire
Tie
Console
Wire
63
