1
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEPTUNE SPACE PREDATOR and is the answer not in the manual?

Questions and answers

Related Manuals for Ocean Reef NEPTUNE SPACE PREDATOR

Summary of Contents for Ocean Reef NEPTUNE SPACE PREDATOR

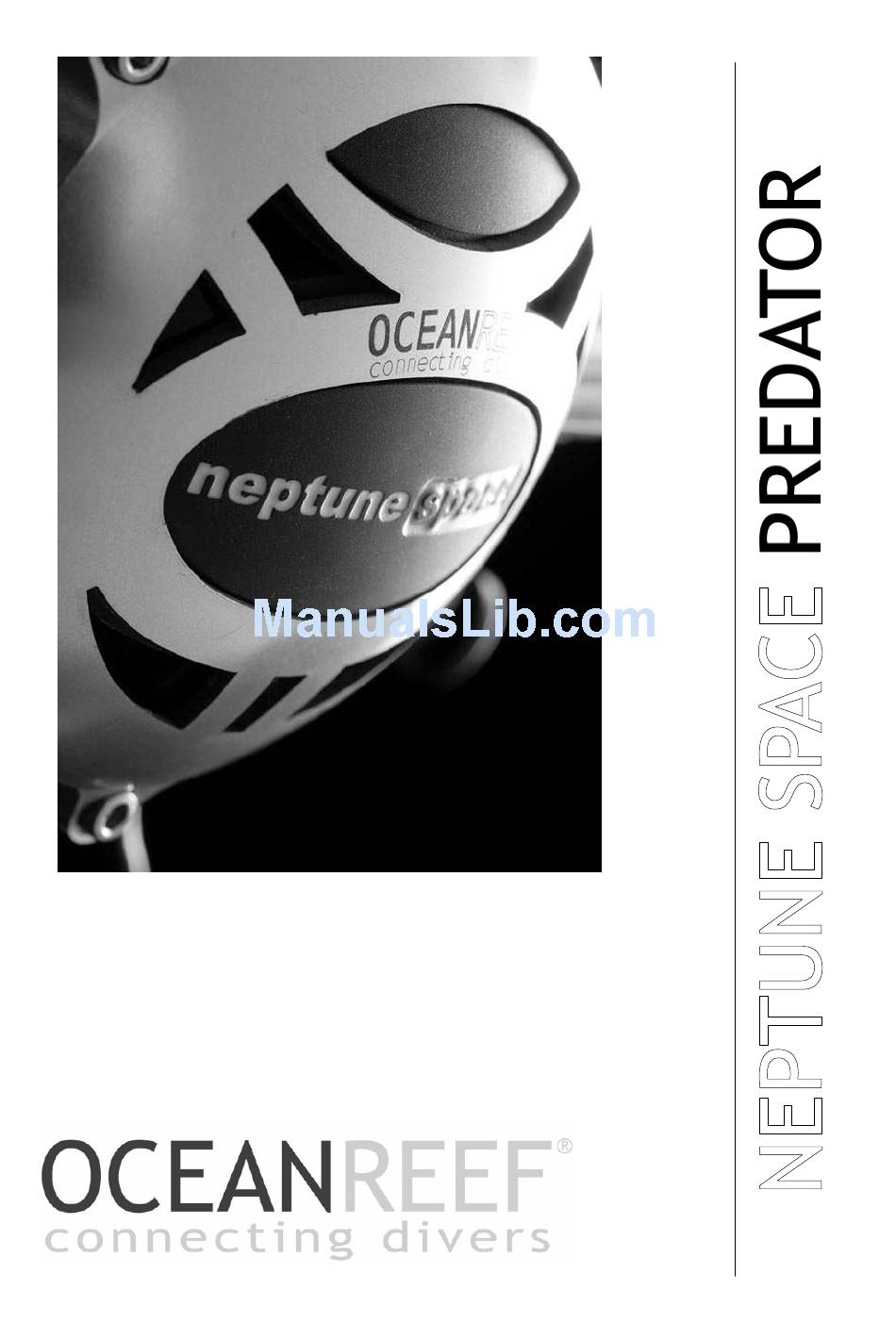

  • Page 1 OWNER’S MANUAL...
  • Page 2 Neptune Space Predator Manual rel 2.3 December 2008...

  • Page 3: Table Of Contents

    NEPTUNE SPACE PREDATOR OWNER’S MANUAL TABLE OF CONTENTS NEPTUNE SPACE PREDATOR Premise and warnings Introduction Technical characteristics Use of conventional regulators 1st stage SL 35TX Quick steps Equalization Purging Serial number 10. Replacement parts 11. Schematic and parts list (Neptune Space) 12.
  • Page 4 A CAUTION indicates any situation or technique that could cause damage to the product, and could subsequently result in injury to the user. A NOTE is used to emphasize important points, tips, and reminders. Neptune Space Predator Manual rel 2.3 December 2008...

  • Page 5: Neptune Space Predator

    DO NOT leave a cylinder standing unsecured with the Neptune  Space attached to the valve. Doing so may cause permanent damage to the Neptune Space Predator and cylinder valve if the cylinder falls over against the first stage. Factory prescribed service for this product must be performed at ...

  • Page 6: Technical Characteristics

     correctly. TECHNICAL CHARACTERISTICS The Neptune Space Predator , the latest and most innovative mask in the Neptune Series, has been designed with the technical experience gained through 20 years of full face mask manufacturing.The Neptune Space Predator has a state-of-the-art integrated regulator, a reduced internal volume, an improved visualfield, and an integrated surface air valve.
  • Page 7 92%. DURABILITY AND SCRATCHING RESISTANCE The visor of the Neptune Space Predator can resist the impact of a 6.35 mm steel ball traveling at speeds of 540 km/hour (335 mi/hour). The visor is coated on both sides with a siloxane resin to increase the scratching resistance.
  • Page 8 THE 3-D EQUALIZATION SYSTEM The patented Ocean REEF 3-D equalization system is designed to allow equalization during a dive. The system consists of a movable plate and two eccentric blocks; these blocks move close to the nostrils when the upper part of the visor is pressed.

  • Page 9: Use Of Conventional Regulators

    1ST STAGE SL 35 TX The Neptune Space Predator may be used only with this high performance, balanced diaphragm 1st stage with anti-freeze kit. The first stage has adjustable medium pressure and is made of brass with a satin finish body, stainless steel piston, Teflon seat, and stainless steel spring.

  • Page 10: Quick Steps

    When storing the mask turn counterclockwise the adjustment knob.  Ocean REEF highly recommends that you practice in a pool before using your mask in open water. *Note the position of the strap in relation to the head (see left).

  • Page 11: Equalization

    EQUALIZATION The Neptune Space Predator is equipped with a simple patented internal device to close the nostrils and allow underwater equalization. By loosening the screw it is possible to move the plate up and down to find the most comfortable position to equalize. The silicone caps may easily be turned. By turning the caps you may adjust them to fit a larger or thinner nose (distance between the nostrils).

  • Page 12: Schematic And Parts List (Neptune Space)

    Neptune Space Predator Manual rel 2.3 December 2008...
  • Page 13 NEPTUNE SPACE PREDATOR rel.2.2 Part Code q.ty Part Code q.ty M-8 Strap for FRB2 buckle 9003 O-ring balanced poppet 2.6 x 1 15439 Polar Mesh strap 9007 Quick release 6810 SS Clamping band w/buckles—Predator OR006 Spring l 33-Ø thread 0,9-Ø.int.8,4 6966 rel 2.0...

  • Page 14: Schematic And Parts List (Sl 35Tx)

    Neptune Space Predator Manual rel 2.3 December 2008...
  • Page 15 SL 35 TX (1ST STAGE) 4.0 Code R-DIN R-YOKE Designation 9810 Retaining cap 9811 Diaphragm Ø33 x 1.5 9812 Pressure piston 9813 Intermediate ring 9814 Anti freeze kit 9815 Adjusting screw 9816 Spring 9817 Spring Plate 9818 Friction Ring 9819 Diaphragm Ø36.9 x 2 9820 Piston guide...

  • Page 16: Maintenance And Cleaning

    (see section 2.4.3). COMMUNICATION COMMUNICATION APPARATUS The Neptune Space Predator may be used with various communication systems between divers and/or the surface. It is compatible with most underwater communication systems if supplied with the proper adapter and/or DIN connection. Information may be obtained from your Ocean Reef dealer.
  • Page 17 To assemble the swivel, first unscrew the hose from the second stage  with a proper tool. Then connect the swivel to the second stage and tighten with proper tool (w/open wrench; not included). Next connect the hose to the threaded part of the swivel connector and tighten. This operation should not be performed with the regulator connected ...

  • Page 18: Troubleshooting

    CLAMPING BAND TEARS a) improper removal technique * OCEAN REEF recommends that the regulator be serviced at least once a year, or after 100 dives. This should only be performed by an OCEAN REEF dealer or an authorized OCEAN REEF repair station which uses original spare parts.
  • Page 20 OCEAN REEF, Inc. 1699 La Costa Meadows Dr. Suite 101 San Marcos, CA 92078 (USA) Phone +1 760 744 9430 Fax +1 760 744 9525 Toll Free Phone: 1 (800) 922-1764 www.oceanreefgroup.com ocean.reef@oceanreefgroup.com Neptune Space Predator Manual rel 2.3 December 2008...
