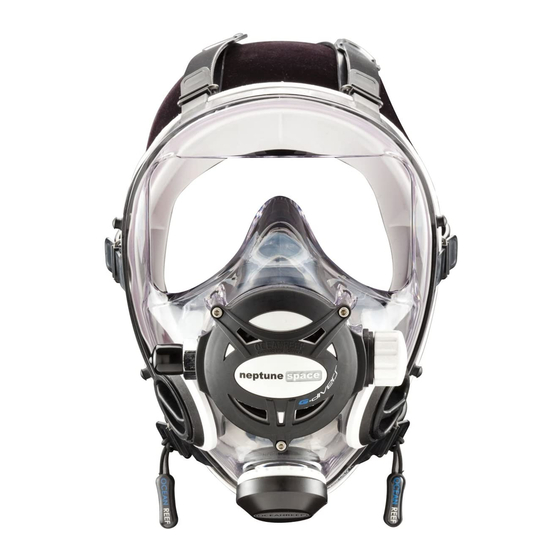

Ocean Reef Neptune Space G-divers Owner's Manual

Full face mask
Hide thumbs
Table of Contents

Advertisement

Quick Links

NEPTUNE SPACE G.divers FULL FACE MASK
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Neptune Space G-divers and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ocean Reef Neptune Space G-divers

Summary of Contents for Ocean Reef Neptune Space G-divers

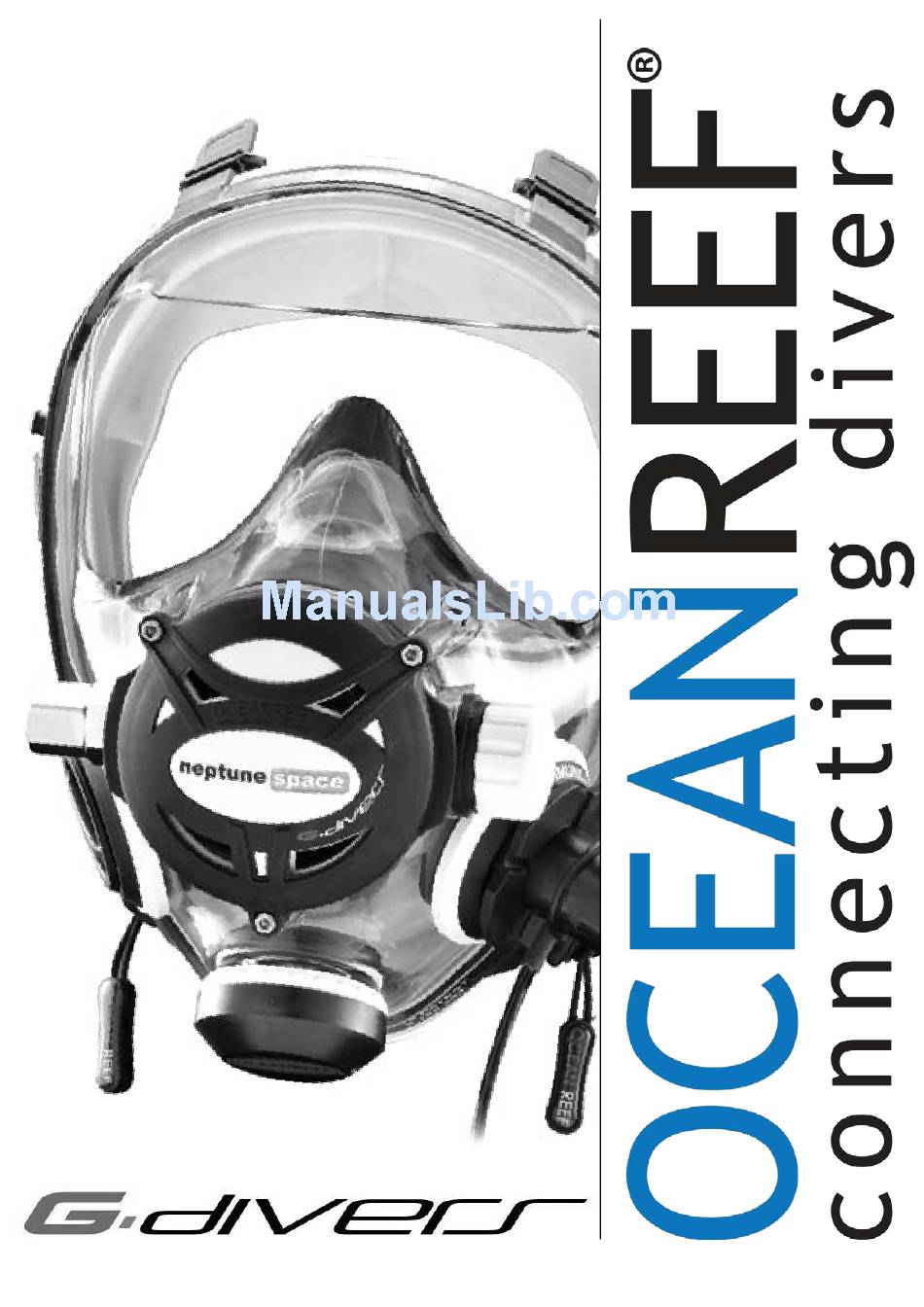

  • Page 1 NEPTUNE SPACE G.divers FULL FACE MASK OWNER’S MANUAL...
  • Page 2 For nearly 60 years, OCEAN REEF has been involved in the underwater diving industry. We have contributed much to this industry, from fins and snorkels to the most modern systems of underwater communication. Through the spirit of intrepid pioneers, brilliant inventors, passionate divers, and dynamic entrepreneurs, OCEAN REEF has been able to turn dreams into reality in the underwater world.
  • Page 3 NEPTUNE SPACE G.divers OWNER’S MANUAL TABLE OF CONTENTS Premise and warnings Introduction General precautions and warnings What’s the correct mask size? Use of conventional regulators 1st stage SL 35TX Equalization Quick steps Purging Serial number Maintenance and cleaning Storage Communication Troubleshooting Schematic and parts list (Neptune Space G.divers) Schematic and parts list (SL 35TX)
  • Page 4 The DPIs (Individual Protective Device) scrutinized in these operating instructions have undergone every possible test for design validation by: Germanisher Lloyd Vorsetzen 35 20459 Hamburg—Germany Notified Body n.: 0098 Full face Mask Neptune Space and SL35TX Comply with CE Certification in accordance with 89/689/EEC directives under the UNI EN250:2000 standard rules for underwater activities, including cold water use.
  • Page 5 SLOWLY. NEVER lubricate any part of the mask and/or regulator or cylinder valve with any lubricant. Lubrication must only be performed by an OCEAN REEF trained technician. DO NOT apply any type of aerosol spray on the Neptune Space G.divers.
  • Page 6 The Neptune SPACE G.divers might be used with NITROX gasses up to 40% O2. It is always recommended to use cleaned air from specified cleaned air source. SL35TX 1st stage can’t be used with NITROX. Always use NITROX compatible 1st stages when NITROX is required. Note: not valid in the European Union.
  • Page 7 Space G.divers is available in two sizes, Small/Medium and Medium/Large. In order to determine whether a diver should wear a S/M or M/L mask, OCEAN REEF has designed a Mask Measuring Kit. The sizing and measuring system were designed in...
  • Page 8 USE OF CONVENTIONAL REGULATORS A special adapter allows the connection of several kinds of regulators. The adaptor is available in two sizes, medium (standard) and small. This adapter fits in place of the surface air valve (code 33020: S, code 33021: M). USE OF OVER-INJECTED REGULATORS Over injected regulators have a diaphragm with an inhalation...
  • Page 9 EQUALIZATION The Neptune Space G.divers is equipped with a simple patented internal device to close the nostrils and allow underwater equalization. By loosening the screw it is possible to move the plate up and down to find the most comfortable position to equalize. The silicone caps may easily be turned.
  • Page 10 QUICK STEPS BEFORE DIVING 1. Adjust the equalization system to fit perfectly your need and test it on your face until you feel completely comfortable. 2. Don the mask (make sure surface air valve or octopus port is open to allow air in if installed).
  • Page 11 4. With the LP hose plugged in press the purge button of the 2nd stage and check that the air flows freely. Release the button and check that air stops flowing. 5. Close surface air valve before descending (if installed). DURING A DIVE 1.
  • Page 12 Do not bump the Neptune Space G.divers. If you do, check for any damage. 5. When storing the mask, turn the adjustment knob counterclockwise. OCEAN REEF highly recommends that you practice in a pool before using your mask in open water. PURGING The mask can easily be purged in the event that water enters the mask by pressing the exhaust button on the second stage.
  • Page 13 MAINTENANCE AND CLEANING TYPE OF ACTION BEFORE A AFTER A EVERY EVERY 2 DIVE DIVE YEAR YEARS RINSE GENERAL FUNCTION CHECK REGULATOR SERVICING MASK SERVICING For optimum longevity of the mask and the proper functioning of its parts we recommend rinsing the mask thoroughly in fresh water after every use. DO NOT clean the visor with any abrasive materials.
  • Page 14 It is compatible with most underwater communication systems if supplied with the proper adapter and/or DIN connection. Information may be obtained from your OCEAN REEF dealer. INSTALLING THE UNDERWATER COMMUNICATION SYSTEM The microphone support (PTT) is screwed into the connection located on the left side of the mask and identified with the words COMMUNICATION SYSTEM.
  • Page 15 1st stage intermediate pressure not 140±3 psi / 9.5→9.8 bar. * OCEAN REEF recommends that the regulator be serviced at least once a year, or after 100 dives. This should only be performed by an OCEAN REEF dealer or an authorized OCEAN REEF repair station which uses original spare parts.
  • Page 17 7015 8448 Visor - Space Regulator housing - Space w/SN 6529 NG-24 M3 nut 1352 FACE SEAL COBALT M/L 9420 O-RING 114 1359 9672 FACE SEAL EMERALD M/L NOZZLE FACE SEAL white M/L 9673 O-RING 2025 15257 FACE SEAL Pink M/L BODY WASHER 1360 FACE SEAL EMERALD S/M...
  • Page 19 SL 35 TX (1ST STAGE) 4.0 Code R-DIN R-YOKE Designation 9810 Retaining cap 9811 Diaphragm Ø33 x 1.5 9812 Pressure piston 9813 Intermediate ring 9814 Anti freeze kit 9815 Adjusting screw 9816 Spring 9817 Spring Plate 9818 Friction Ring 9819 Diaphragm Ø36.9 x 2 9820 Piston guide...
  • Page 20 Warranty 1. OCEAN REEF masks are guaranteed to be free of material or manufacturing defects for a period of 24 months from the time the unit is purchased. For the duration of the guarantee, the Company’s responsibility is limited to replacement of any parts that are defective in our opinion, and that have not been used incorrectly or handled negligently.
  • Page 21 NEPTUNE SPACE G.divers manual rel.1.7 October 2010...
  • Page 22 NOTES: ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………..……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………… ……………………………………………………………………………..………………………………………………………………………………...
  • Page 23 NEPTUNE SPACE G.divers manual rel.1.7 October 2010...
  • Page 24 Phone +39 010 6598 611 Fax +39 010 6598 622 E-mail: ocean.reef@oceanreefgroup.com OCEAN REEF, Inc. 1699 La Costa Meadows Dr. Suite 101 San Marcos, CA 92078 Phone +1 760 744 9430 Fax +1 760 744 9525 E-mail: operator@oceanreefgroup.com OCEAN REEF on the Web: www.oceanreefgroup.com © OCEAN REEF 2010...
