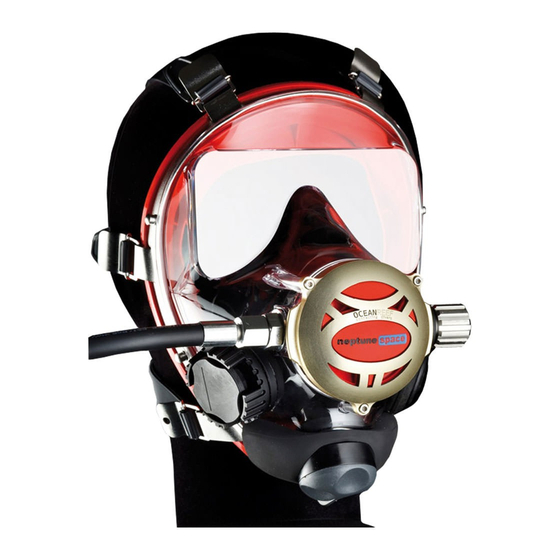

- Page 1 NEPTUNE SPACE IRON MASK OWNER’S MANUAL...
- Page 2 For nearly 60 years, OCEAN REEF has been involved in the underwater diving industry. We have contributed much to this industry, from fins and snorkels to the most modern systems of underwater communication. Through the spirit of intrepid pioneers, brilliant inventors, passionate divers, and dynamic entrepreneurs, OCEAN REEF has been able to turn dreams into reality in the underwater world.
-
Page 3: Table Of Contents
STAGE SL 35TX AIR CIRCULATION EQUALIZATION QUICK STEPS PURGING SERIAL NUMBER MAINTENACE AND CLEANING/STORAGE COMMUNICATION TROUBLESHOOTING Schematic and parts list (Neptune Space IRON MASK) Schematic and parts list (SL 35TX) Warranty NEPTUNE SPACE IRON MASK Owner’s Manual rel. 1.0 October 2010... -
Page 4: Warning, Caution, Notes
A CAUTION indicates any situation or technique that could cause damage to the product, and could subsequently result in injury to the user. A NOTE is used to emphasize important points, tips, and reminders. NEPTUNE SPACE IRON MASK Owner’s Manual rel. 1.0 October 2010... -
Page 5: Introduction
Surface treatments protect the mask from salt water damage and tech polymer protection treatments allow the Neptune Space IRON MASK to be used in extreme conditions. The Glacier strap is composed of HNBR rubber compound for extreme low temperatures. - Page 6 Neptune Space IRON MASK is not CE certified to be used with NITROX! The Neptune SPACE IRON MASK might be used with NITROX gasses up to 40% O2. It is always recommended to use cleaned air from specified cleaned air source.
-
Page 7: Use Of Conventional Regulator
DIN connection 300 bar (code 9923) 2 high pressure ports 7/16 -20 UNF 4 Medium pressure ports 3/8-24 UNF Flow rate of approx. 4800 l/m at 140 bars NEPTUNE SPACE IRON MASK Owner’s Manual rel. 1.0 October 2010... -
Page 8: Air Circulation
“air on demand” situation. EQUALIZATION The Neptune Space IRON MASK is equipped with a simple patented internal device to close the nostrils and allow underwater equalization. By loosening the screw it is possible to move the plate up and down to find the most comfortable position to equalize. -
Page 9: Quick Steps
2. Don the mask (make sure surface air valve or octopus port is open to allow air in if installed). 3. Completely pull down the central part of the strap and adjust the 6 straps, middle ones first, than bottom ones and finally the top ones. NEPTUNE SPACE IRON MASK Owner’s Manual rel. 1.0 October 2010... - Page 10 1. Breathe normally through your nose or mouth, whichever is most comfortable. 2. To equalize, press the front part of the regulator or the top of the mask(without pushing the purge button). For more information watch the tutorial videos on www.oceanreefgroup.com NEPTUNE SPACE IRON MASK Owner’s Manual rel. 1.0 October 2010...
-
Page 11: Purging
Do not bump the Neptune Space. If you do, check for any damage. 5. When storing the mask, turn the adjustment knob counterclockwise. OCEAN REEF highly recommends that you practice in a pool before using your mask in open water. PURGING The mask can easily be purged in the event that water enters the mask by pressing the exhaust button on the second stage. - Page 12 Do not store it at temperatures below -4°F (-20°C) or above +122°F (+50°C). We suggest you use the AC-4 visor protector and the carrying bag included in the package when storing the mask to avoid accidental abrasion (see section 2.4.3). NEPTUNE SPACE IRON MASK Owner’s Manual rel. 1.0 October 2010...
-
Page 13: Communication
COMMUNICATION COMMUNICATION APPARATUS The Neptune Space IRON MASK may be used with various communication systems between divers and/or the surface. It is compatible with most underwater communication systems if supplied with the proper adapter and/or DIN connection. Information may be obtained from your OCEAN REEF dealer. -
Page 14: Troubleshooting
1st stage intermediate pressure not 140±3 psi / 9.5→9.8 bar. * OCEAN REEF recommends that the regulator be serviced at least once a year, or after 100 dives. This should only be performed by an OCEAN REEF dealer or an authorized OCEAN REEF repair station which uses original spare parts. - Page 15 IRON MASK NEPTUNE SPACE IRON MASK Owner’s Manual rel. 1.0 October 2010...
- Page 16 Hose protector 9311 Dive/predive 6972 O-ring 2025 Viton 9683 Nozzle 9672 O-ring 114 Viton 9520 Valve body 15532 Demand lever 15448 Wedge 15447 Seat balanced poppet 8866 Balanced poppet 9675 NEPTUNE SPACE IRON MASK Owner’s Manual rel. 1.0 October 2010...
- Page 17 NEPTUNE SPACE IRON MASK Owner’s Manual rel. 1.0 October 2010...
- Page 18 Hand wheel DIN, 300 bar 9843 O-ring 10,82 x 1,78 9844 Retaining screw DIN, 300 bar 9845 O-ring 11,00 x 2,5 9846 Conversion kit, YOKE 9847 Conversion kit DIN, 300 bar NEPTUNE SPACE IRON MASK Owner’s Manual rel. 1.0 October 2010...
- Page 19 Warranty 1. OCEAN REEF Neptune Space IRON MASK have a limited lifetime warranty to be free of material or manufacturing defects of any component but the regulator ones. 2. Regulator parts are guaranteed to be free of material or manufacturing defects for a period of 24 months from the time the unit is purchased.
- Page 20 1699 La Costa Meadows Dr. Suite 101 San Marcos, CA 92078 Phone +1 760 744 9430 Fax +1 760 744 9525 E-mail: operator@oceanreefgroup.com OCEAN REEF on the Web: www.oceanreefgroup.com © OCEAN REEF 2010 NEPTUNE SPACE IRON MASK Owner’s Manual rel. 1.0 October 2010...
