OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSM Cube3 and is the answer not in the manual?

Questions and answers

Related Manuals for Ocean Reef GSM Cube3

Summary of Contents for Ocean Reef GSM Cube3

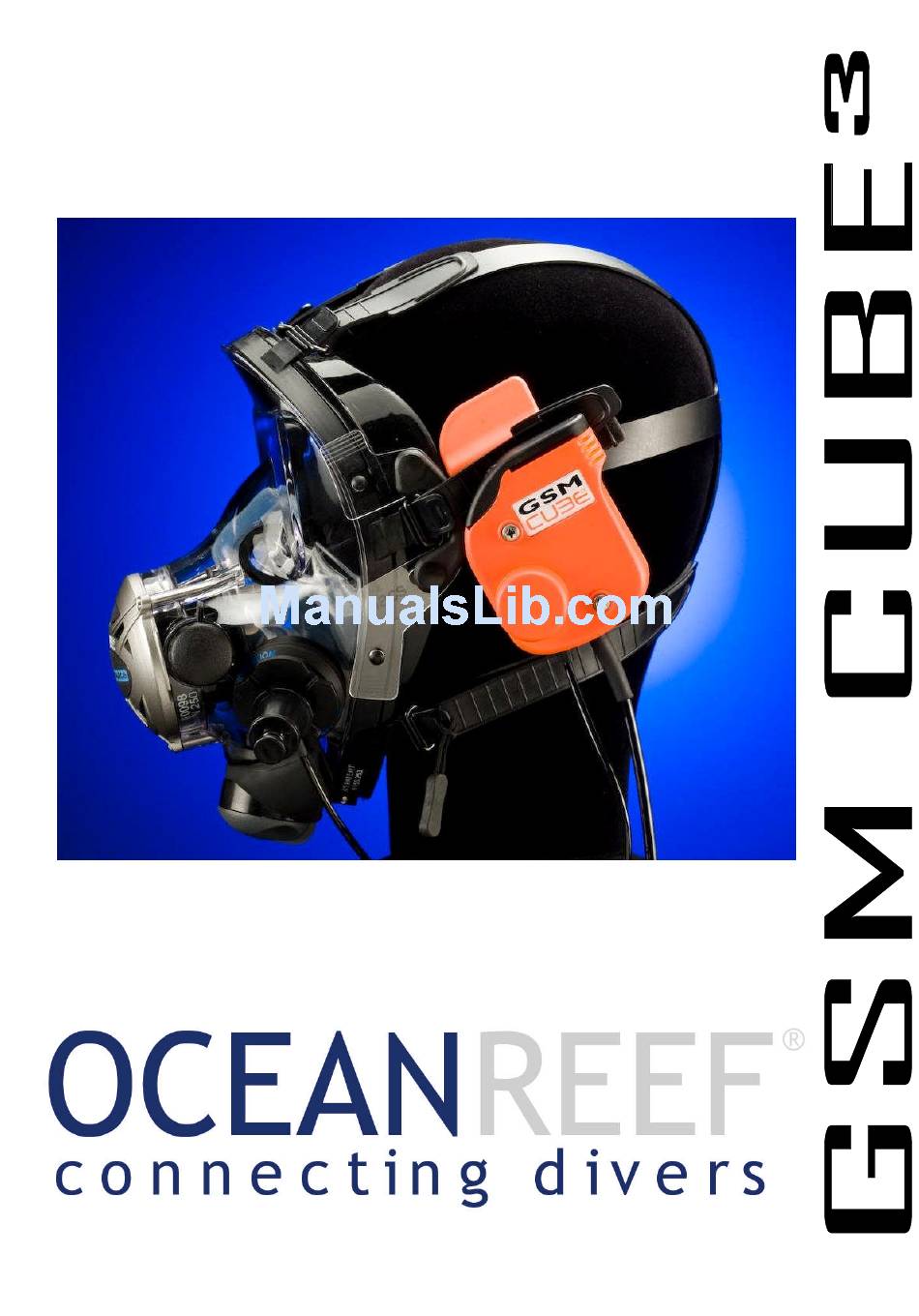

  • Page 1 OWNER’S MANUAL...
  • Page 2 GSM CUBE³ manual rel.1.0...

  • Page 3: Table Of Contents

    Warnings………………………………………………………………..4 Introduction……………………………………………………………..5 Attaching the CUBE³ to a full face mask……………….……………7 Installing the microphone…………………………….………………..8 Procedure for the assembling of a PTT & D-mic microphone……..9 Installing the battery…………………………………………………...9 Checking before use………………………………………………….11 Functioning of the GSM CUBE³ with the ALPHA-PRO X-DIVERS…………………………………………12 Functioning of the GSM CUBE³ with the VHF system..…………..13 Instructions for underwater communication…………………….….14 Precautions…………………………………………………………….15 Warranty………………………………………………..……………….17...

  • Page 4: Warnings

    WARNINGS, CAUTIONS, NOTES Pay special attention when accompanied by these symbols: A WARNING indicates a procedure or situation that, if not avoided, could result in serious injury or death to the user. A CAUTION indicates any situation or technique that could cause damage to the product, and could subsequently result in injury to the user.

  • Page 5: Introduction

    (no need to press the transceiver button to communicate). At the same time the unit is capable of communicating with other wireless underwater units such as the OCEAN REEF GSM, GSM DC, GSM G POWER, GSM G POWER SL, M105 and M100. By pressing the button of the PTT the unit is transmitting on channel 1 of ultrasonic frequency (channel 1 - 31.768 kHz).
  • Page 6 GSM CUBE³ PARTS GSM CUBE³ manual rel.1.0...

  • Page 7: Attaching The Cube³ To A Full Face Mask

    DIN connection for the transmission and microphone button and two quick connections. For optimum functioning we recommend using the unit on OCEAN REEF Space masks, as the unit’s acoustic characteristics are designed to suit these masks. How to install the NACS...

  • Page 8: Installing The Microphone

    Installing the microphone The CUBE³ uses a dynamic microphone, ”D-Mic” encapsulated and protected by a hydrophobic membrane. The microphone allows dependable clear reproduction of the human voice. It removes unnecessary noise such as the noise of bubbles being exhaled from the mask. The D-Mic uses a hydrophobic membrane that allows air to pass through while protecting the microphone from water.

  • Page 9: Procedure For The Assembling Of A Ptt & D-Mic Microphone

    Procedure for assembling the PTT & D-mic • Unscrew the communication port plug (labelled COMMUNICATION), insert the PTT & microphone through the mask into the “communication” port with the hydrophobic membrane facing the visor. • If the membrane is turned the wrong way, facing the mouth, phonic performance will be diminished.
  • Page 10 When the battery has been installed, check that the battery housing and O-ring are clean. The O-ring must always be lubricated with a thin layer of silicone lubricant. (5) Holding the cap in position, position the cover and screw the two screws in place until they are tight.

  • Page 11: Checking Before Use

    Checking before use Once the battery has been installed and you have checked that the cap and cover have been closed properly, dampen your fingers and touch the two screws (On/Off switch contacts) and activate the polarity circuit. You will hear a “beep” indicating activation. If you hear a repeated “beep”, about every 30 seconds, this means that the battery is running low.

  • Page 12: Functioning Of The Gsm Cube³ With The Alpha-Pro X-Divers

    Functioning of the GSM CUBE³ with the ALPHA-PRO X-DIVERS The GSM CUBE³ is made to allow the connection to the ALPHA- PRO X-DIVERS. You can connect the CUBE³ to the cable outside or inside the water; simply take away the plug from the 6 pin connector and plug it into the ALPHA-PRO X-DIVERS cable.

  • Page 13: Functioning Of The Gsm Cube³ With The Vhf System

    VHF radios may be inserted and interfaced. It is necessary to specify the kind of radio used and OCEAN REEF will customize the required interface cabling.

  • Page 14: Instructions For Underwater Communication

    Instructions for underwater communication  When speaking to other divers, remember that they are diving. It is best to attract their attention before sending a message.  Talking and listening while underwater requires practice. With experience, divers will become more proficient in the use of the communications system.

  • Page 15: Precautions

    PRECAUTIONS  Do not use solvents (such as diluents) to clean the unit. They can cause irreparable damage. Only use neutral detergents. Use running water to remove the seawater from your GSM CUBE³ after use. The system must be kept completely dry and in good condition.
  • Page 16  Routinely clean the microphone contacts and check the integrity of the hydrophobic membrane and the case. If the microphone is flooded, it CANNOT be recovered and must be replaced.  Do not touch the hydrophobic membrane with any sharp objects that may damage it.

  • Page 17: Warranty

    Warranty (1) OCEAN REEF communication units are guaranteed to be free of material or manufacturing defects for a period of 24 months from the time the unit is purchased. For the duration of the guarantee, the Company’s responsibility is limited to replacement of any parts that are defective in our opinion, and that have not been used incorrectly or handled negligently.

  • Page 18: Troubleshooting

    TROUBLESHOOTING Problem Possible cause action The unit does not The battery is Insert a charged switch on (it still missing, the contacts battery. Remove works via cable) are isolated, the isolation caps battery is dead The polarity is Insert the battery inverted.
  • Page 19 The unit does not The transmission unit Try another receive via wireless. is not working transmission unit Speaker or internal Send for servicing components defective The unit does not Broken cable Send for servicing receive via cable Surface unit out of Recharge surface power unit...
  • Page 20 OCEAN REEF, Inc. 1699 La Costa Meadows Dr. Suite 101 San Marcos, CA 92078 Phone +1 760 744 9430 Fax +1 760 744 9525 OCEAN REEF on the Internet http://www.oceanreefgroup.com © OCEAN REEF 2008 GSM CUBE³ manual rel.1.0...
