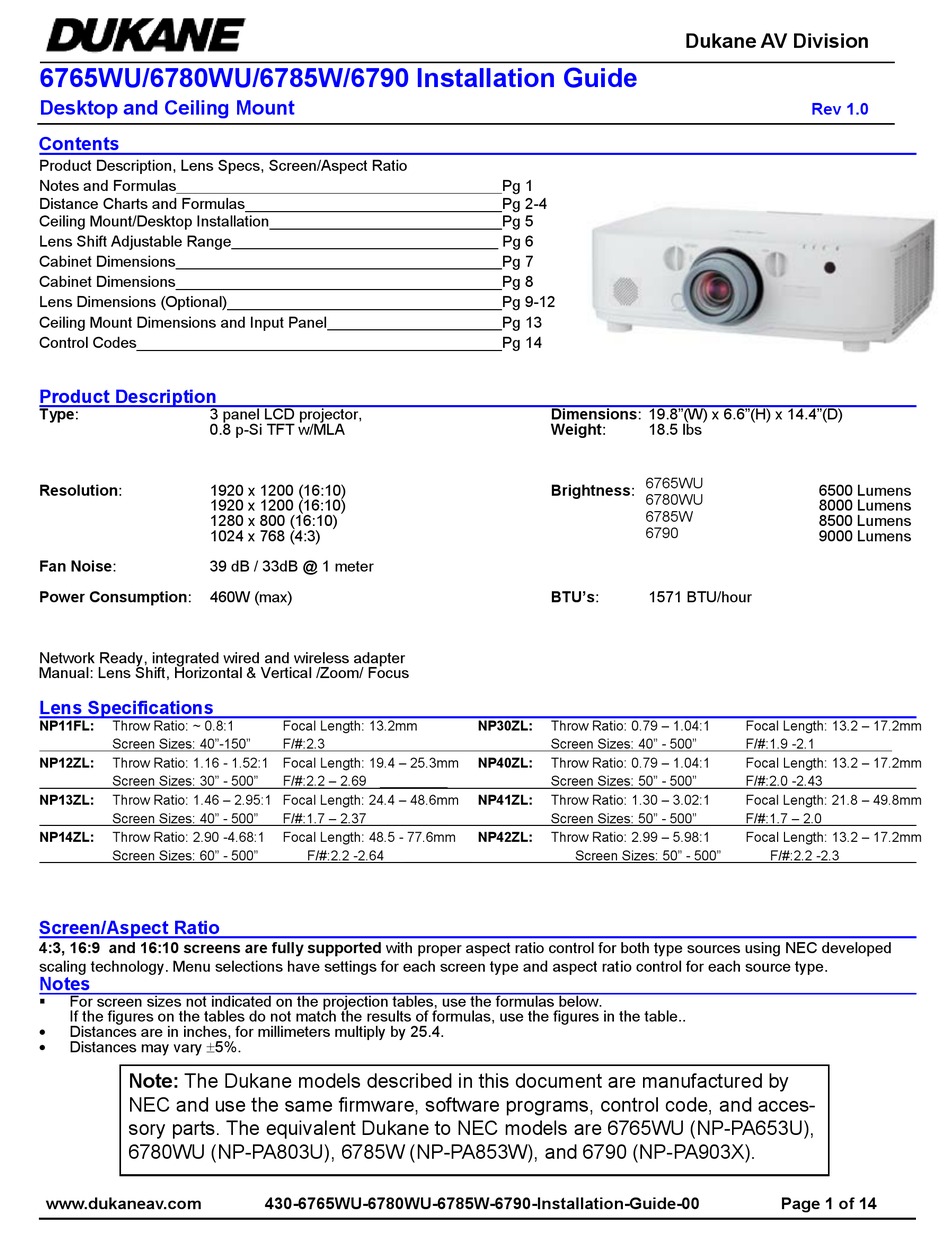

Dukane ImagePro 6765WU Installation Manual

6765WU/6780WU/6785W/6790 Installation Guide
PA653U/PA803U/PA853W/PA903X Installation Guide
Desktop and Ceiling Mount
Desktop and Ceiling Mount
Contents
Product Description, Lens Specs, Screen/Aspect Ratio
Notes and Formulas
Distance Charts and Formulas
Ceiling Mount/Desktop Installation
Lens Shift Adjustable Range
Cabinet Dimensions
Cabinet Dimensions
Lens Dimensions (Optional)
Ceiling Mount Dimensions and Input Panel
Control Codes

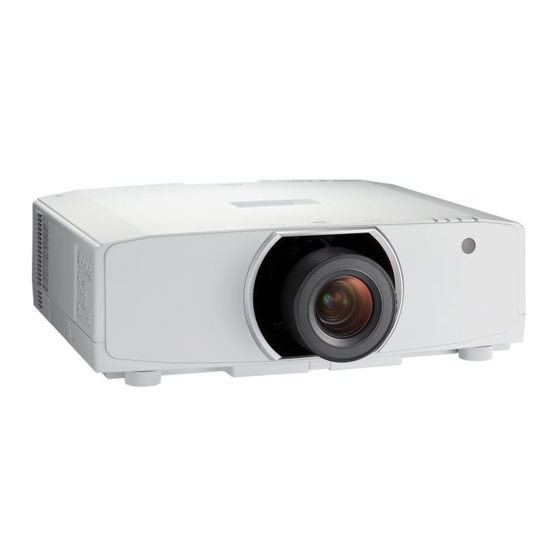

Product Description

Type: 3 panel LCD projector,
0.8 p-Si TFT w/MLA
Resolution: 1920 x 1200 (16:10)
1920 x 1200 (16:10)
1280 x 800 (16:10)
1024 x 768 (4:3)
Fan Noise: 39 dB / 33dB @ 1 meter
Power Consumption: 460W (max)
Network Ready, integrated wired and wireless adapter
Manual: Lens Shift, Horizontal & Vertical /Zoom/ Focus

Lens Specifications

NP11FL: Throw Ratio: ~ 0.8:1
Screen Sizes: 40"-150"
NP12ZL: Throw Ratio: 1.16 - 1.52:1 Focal Length: 19.4 – 25.3mm
Screen Sizes: 30" - 500"
NP13ZL: Throw Ratio: 1.46 – 2.95:1 Focal Length: 24.4 – 48.6mm
Screen Sizes: 40" - 500"
NP14ZL: Throw Ratio: 2.90 -4.68:1
Screen Sizes: 60" - 500"
Screen/Aspect Ratio
4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed
scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes
For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table..
 Distances are in inches, for millimeters multiply by 25.4.
 Distances may vary 5%.
Note: The Dukane models described in this document are manufactured by
NEC and use the same firmware, software programs, control code, and acces-
sory parts. The equivalent Dukane to NEC models are 6765WU (NP-PA653U),
6780WU (NP-PA803U), 6785W (NP-PA853W), and 6790 (NP-PA903X).
www.dukaneav.com
www.necdisplay.com
Focal Length: 13.2mm
F/#:2.3
F/#:2.2 – 2.69 _________
F/#:1.7 – 2.37 _________
Focal Length: 48.5 - 77.6mm
F/#:2.2 -2.64 _________
430-6765WU-6780WU-6785W-6790-Installation-Guide-00
PA653U/PA803U/PA853W/PA903X
NEC Display Solutions of America, Inc.
Pg 1
Pg 2-4
Pg 5
Pg 6
Pg 7
Pg 8
Pg 9-12
Pg 13
Pg 14
Dimensions: 19.8"(W) x 6.6"(H) x 14.4"(D)
Weight: 18.5 lbs
6765WU
Brightness:
6780WU
6785W
6790
BTU's: 1571 BTU/hour
NP30ZL: Throw Ratio: 0.79 – 1.04:1
Screen Sizes: 40" - 500"
NP40ZL: Throw Ratio: 0.79 – 1.04:1
Screen Sizes: 50" - 500"
NP41ZL: Throw Ratio: 1.30 – 3.02:1
Screen Sizes: 50" - 500"
NP42ZL: Throw Ratio: 2.99 – 5.98:1
Screen Sizes: 50" - 500"
Dukane AV Division
Rev 1.0
6500 Lumens
8000 Lumens
8500 Lumens
9000 Lumens
Focal Length: 13.2 – 17.2mm
F/#:1.9 -2.1
Focal Length: 13.2 – 17.2mm
F/#:2.0 -2.43
Focal Length: 21.8 – 49.8mm
F/#:1.7 – 2.0
Focal Length: 13.2 – 17.2mm
F/#:2.2 -2.3
Page 1 of 14
Page 1 of 14
Rev 1.0
