CFII-22
Replacement Parts List
®
Copper-Fin II
PARTS DEPOT
Nashville, Tennessee
Boilers — Water Heaters & Pool Heaters
615-889-8900 • Fax: 615-547-1000
www.Lochinvar.com
CH—CF—CP — 990-2070
Beginning Serial Number: G936199 to Present
-
13
34
14
19
33
30
32
27
29
28
20
31
4
12
RPL 7007
Advertisement
Table of Contents
Related Manuals for Lochinvar COPPER-FIN II G936199
Summary of Contents for Lochinvar COPPER-FIN II G936199
-
Page 1: Replacement Parts List

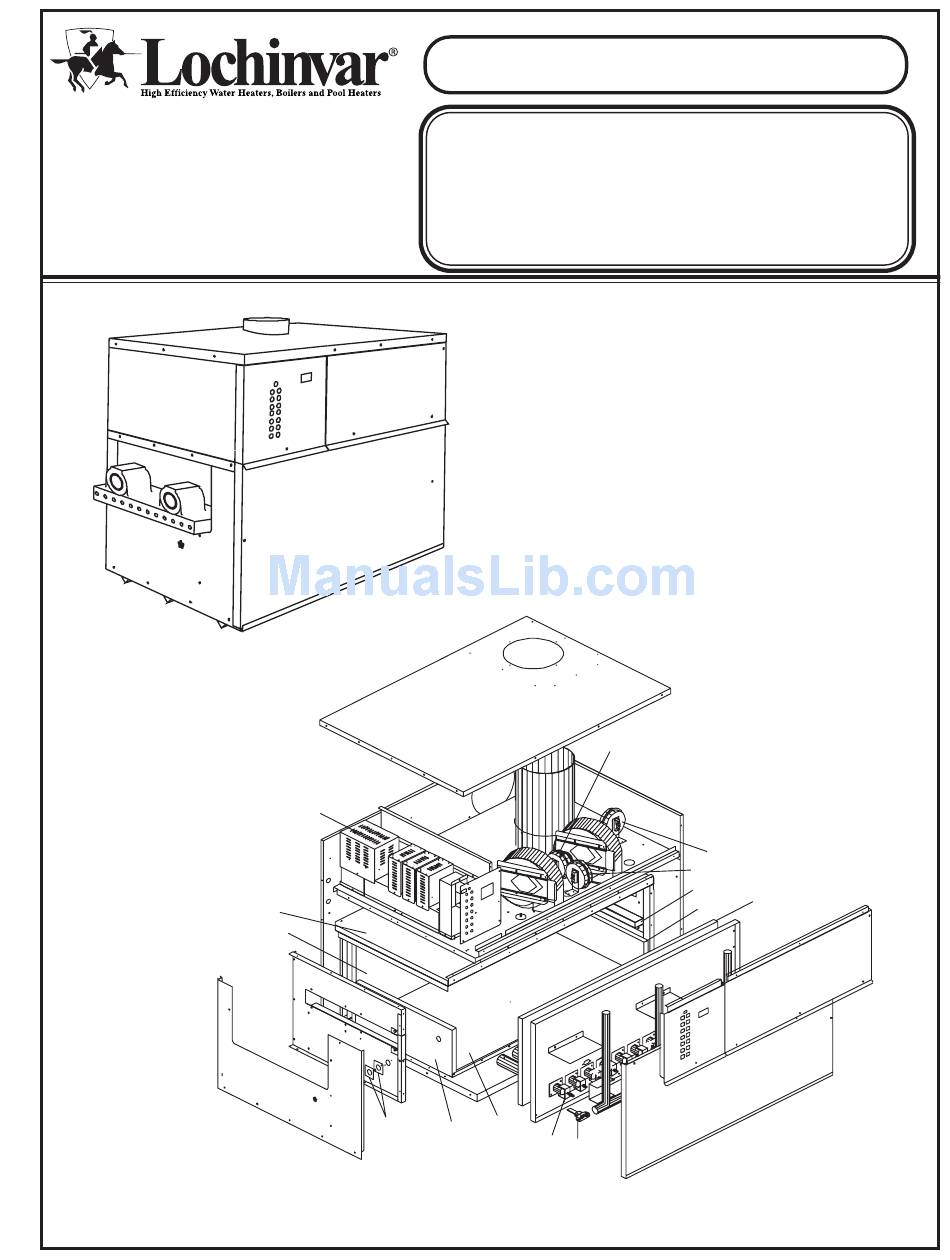

CFII-22 Replacement Parts List ® Copper-Fin II PARTS DEPOT Nashville, Tennessee Boilers — Water Heaters & Pool Heaters 615-889-8900 • Fax: 615-547-1000 www.Lochinvar.com CH—CF—CP — 990-2070 Beginning Serial Number: G936199 to Present RPL 7007... -
Page 2: Control Panel
Control Panel Heat Exchanger Assembly Gas Train... - Page 3 JKE6162 V-BAFFLE FRAME RUNNER JKE6163 V-BAFFLE FRAME RUNNER JKD6187 V-BAFFLE FRAME END * "CONSULT FACTORY" NOTE: CH = BOILER, CF = WATER HEATER & CP = POOL HEATER Gas Train Assemblies BNR3501: BNR3502: BNR2404 is Main Burner 1ea. 1ea. 1ea.
- Page 4 ITEM PART FAN2714 FAN ASSEMBLY GTP2900 PRESSURE TEMPERATURE GAUGE MSC3415 SIGHT GLASS & GASKET RLV2001 RELIEF VALVE, PRESSURE ONLY RLV2007 RELIEF VALVE, TEMPERATURE & PRESSURE RLY2425 RELAY 120 VOLT RLY2424 RELAY 24 VOLT RLY2706 RELAY, POWER ARM3024PBF PUMP (Before Serial # L01) ARM3024PAB PUMP (After Serial # L01 Standard) ARM3024PABTE...
